The UFiber WiFi6 GPON CPE (UF WiFi6) is a point-to-multipoint WiFi 6 device that creates high-speed GPON connections capable of reaching a 2.4 Gbps downstream rate and 1.2 Gbps upstream rate. The UF WiFi6 has (4) GbE RJ45 LAN ports and (1) GPON WAN port to connect a local fiber line. It also excels at establishing reliably strong, long-distance fiber links up to 20 kilometers, allowing you to extend your service range and build your customer base.
Product Features:
- Establishes links up to 20 km
- Supported speeds: 2.4 Gbps (uplink) / 1.2 Gbps (downlink)
- Dual-band WiFi with a 1.5 Gbps aggregate throughput rate
- (1) GPON WAN port with an SC/APC optical connector

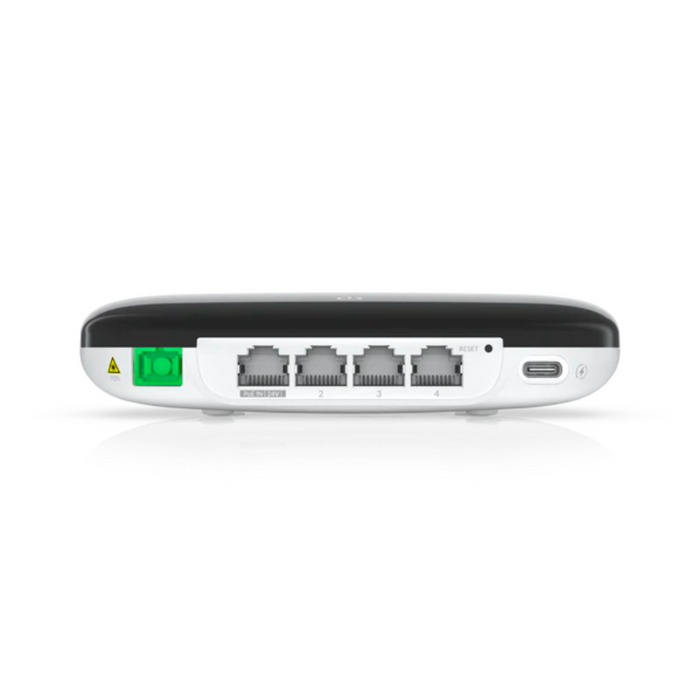

- (4) GbE RJ45 LAN ports
Product Specifications:
- Dimensions: 140.8 x 141.5 x 31.65 mm (5.54 x 5.57 x 1.25")
- Weight: 415 g (0.99 lb)
- Enclosure material: UV-stabilized polycarbonate
- Processor: Dual-core MIPS 1004 Kc at 900 MHz
- Memory: 256 MB RAM
- Total non-blocking line rate:
- 2.488 Gbps downstream
- 1.244 Gbps upstream
- Networking interfaces:
- (1) SC/APC, ITU-G.984 GPON WAN port
- (4) GbE RJ45 LAN ports
- WiFi 802.11ax 5/2.4 GHz channels
- PoE interface: (1) PoE in, 24V passive PoE
- Management interface:
- Ethernet in-band
- PON
- Button: Factory-reset
- Max. power consumption: 11W
- Power method:
- USB-C 5VDC, 3A
- 24V passive PoE, 0.5A
- Power supply:
- 5VDC, 3A power adapter, 1.5 m cord (included)
- Passive PoE 2-pair (4, 5+; 7, 8-)
- Supported voltage range:
- 10 to 30VDC passive PoE
- 5VDC adapter
- Normal TX range of optical module: 0.5 to 5 dBm
- Normal RX range of optical module -8 to -28 dBm
- Max. WiFi TX power:
- 2.4 Ghz - 20 dBm
- 5 Ghz - 20 dBm
- MIMO:
- 2.4 Ghz - 2 x 2
- 5 Ghz - 2 x 2
- Max. WiFi radio rate:
- 2.4 Ghz - 300 Mbps
- 5 Ghz - 1.2 Gbps
- Antenna Gain:
- 2.4 GHz - 1 dBi
- 5 GHz - 3 dBi
- Operating temperature: -15 to 45° C (5 to 113° F)
- Operating humidity: 10 to 90% noncondensing
- Certifications: FCC, IC, CE
- Operating wavelength: 1310 nm TX/1490 nm RX
- Optical interface downstream nominal bit rate: 2488.32 Mbit/s
- Optical interface upstream nominal bit rate: 1244.16 Mbit/s
- Physical reach: 20 km
