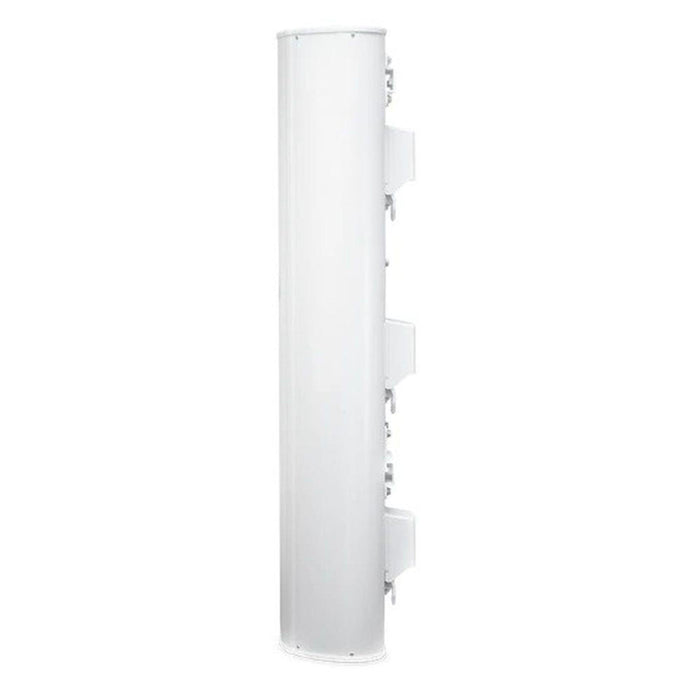

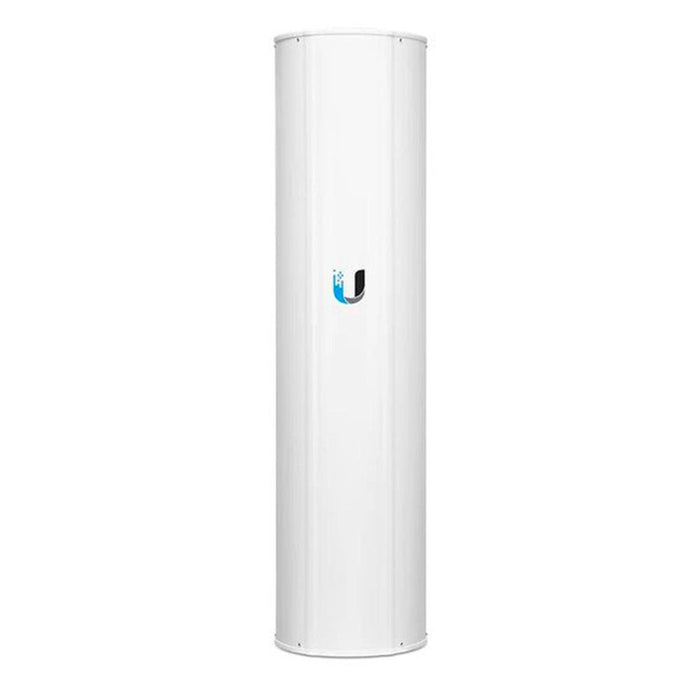

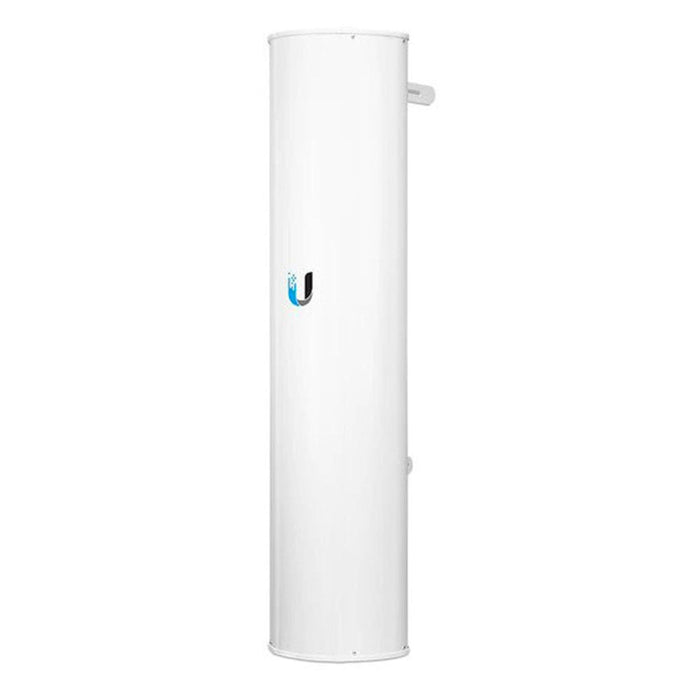

Ubiquiti Sector Antenna 5 GHZ Variable Beam AirPrism Base Station

AP-5AC-90HD by Ubiquiti Networks
Sold out
Original price $474.95 - Original price $474.95
Original price
$474.95
$474.95 - $474.95
Current price $474.95

This product is a US version, intended for use in the US and Canada. This US version contains the following frequencies 5.15 - 5.85 GHz

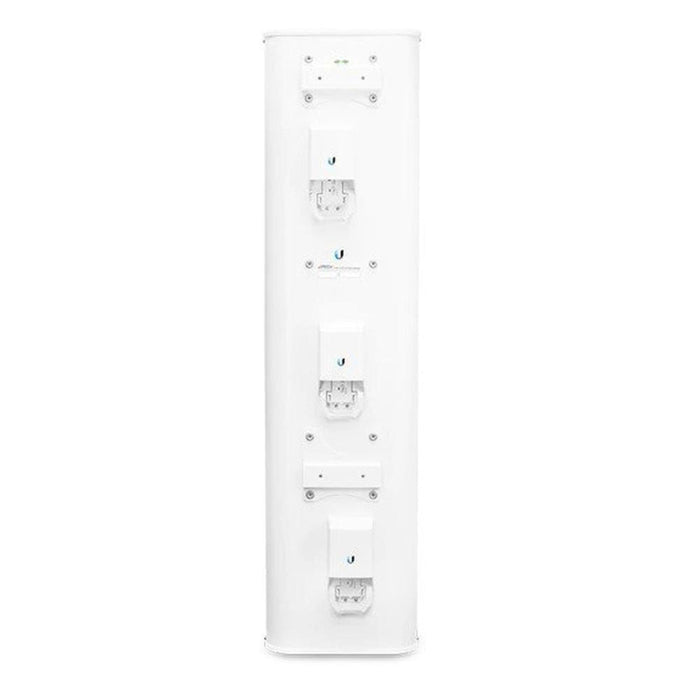

Ubiquiti Networks airPrism antenna features significant advances in noise isolation and beam performance to complement the Rocket 5ac Prism radios fo co-location deployments. The airPrism antenna and Rocket5ac Prism radios have been designed to seamlessly work together. Every airPrism antenna has three built-in Rocket radio mounts, so installation requires no special tools. Snap the three Rocket5ac Prism radios securely into place and mount the antenna for your PtMP link.


Product Features:

  • Mount up to three Rocket5ac Prism radios for PtMP links
  • Each Rocket radio corresponds with a specific 30° beamwidth and independently transmits and receives
  • Deploy the Rocket5ac Prism for PtP or PtMP links in high RF noise environments
Product Specifications:
  • Dimensions: 322.6 x 201.5 x 1300 mm (12.7 x 7.03 x 51.18")
  • Weight: 13.1 kg (28.9 lbs)
  • Frequency Range: 5.15 - 5.85 GHz
  • Gain: 22 dBi
  • HPOL Beamwidth: 3 x 30° (6 dB)
  • VPOL Beamwidth: 3 x 30° (6 dB)
  • Electrical Beamwidth: 8°
  • Electrical Downtilt: 2°
  • Max. VSWR: 1.75:1
  • Polarization: Dual-Linear
  • Cross-Polarization Isolation: 30 dB Min.
  • Interfaces: (6) RP-SMA Connectors (Weatherproof)
  • Compatible Radio: Rocket5ac Prism
  • Wind Loading: 534 N @ 200 km/h (120 lbf @ 125 mph)
  • Wind Survivability: 200 km/h (125 mph)
  • Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
  • ETSI Specification: EN 302 326 DN2
  • Certifications: CE, FCC, IC
Product Includes:
  • (1) airPrism Antenna
  • (3) Protective Shrouds
  • (2) U-Brackets
  • (2) Pole Brackets
  • (2) Pole Clamps
  • (4) Carriage Bolts (M10x150)
  • (8) Hex Bolts with Washers (M8x20)
  • (4) Serrated Flange Nuts (M10)
  • (4) Hex Nuts (M10)
  • (1) Quick Start Guide
Product Documentation:


Ubiquiti airPrism Sector Antenna Data Sheet

Ubiquiti airPrism Sector Antenna Quick Start Guidet
