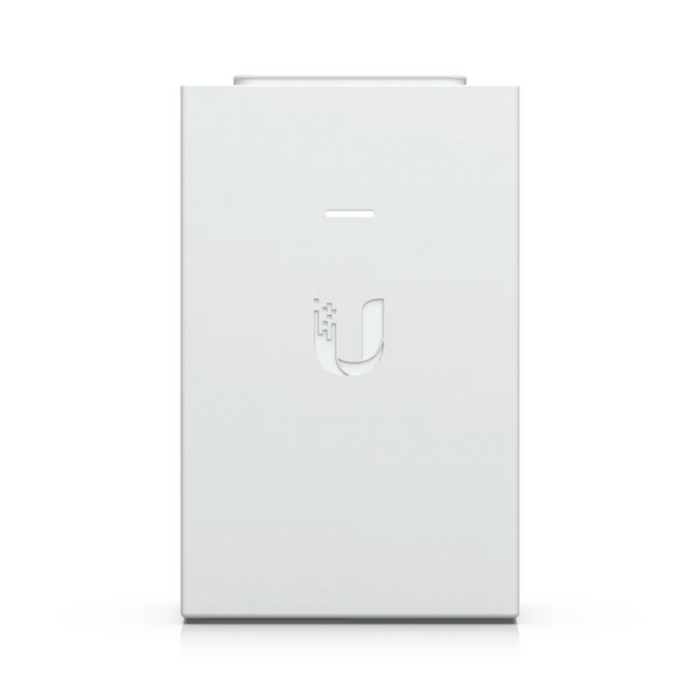

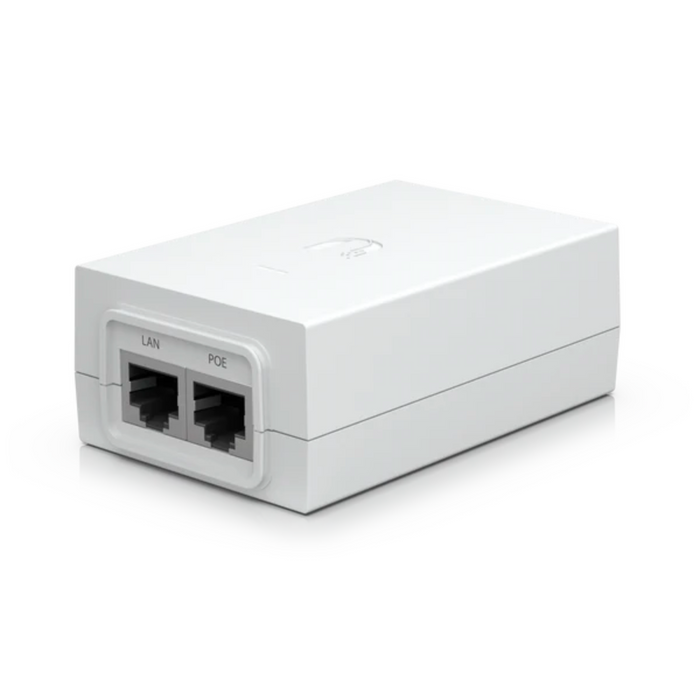

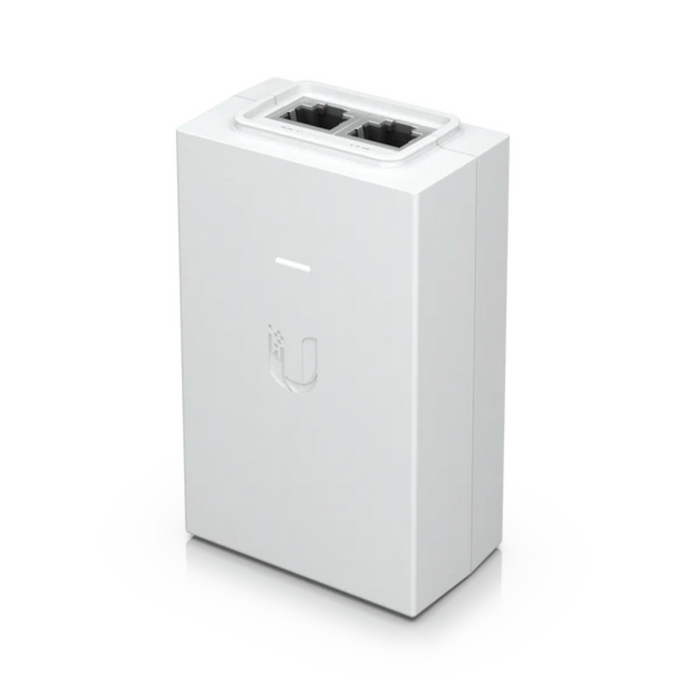

Ubiquiti 24V DC 1.25A 30W Gigabit Replacement PoE Adapter (White) [POE-24-30W-G-WH]

POE-24-30W-G-WH by Ubiquiti
Sold out
Original price $16.00
Original price $16.00 - Original price $16.00
Original price $16.00
Current price $14.95
$14.95 - $14.95
Current price $14.95
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
  • Surge protection
  • Clamping protection
  • Maximum surge discharge
  • Peak pulse current
  • AC cable with earth ground
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.

Product Specifications:
  • Model: POE-24-30W-G-WH
  • Dimensions: 94 × 60 × 33mm (3.70 x 2.36 x 1.30")
  • Weight: 156 g (5.5 oz)
  • Output Voltage: 25VDC @ 1.25A
  • LAN Activity Indicator: No
  • Gigabit LAN Port: Yes
  • Remote Reset Capability: No
  • Reset Button: No
  • Rated Voltage: 100-240VAC @ 50/60Hz
  • Input Current: 0.6A @ 120VAC, 0.4A @ 240VAC
  • Inrush Current: <60A Peak @ 120VAC, <120A Peak @ 230VAC
  • Efficiency: 83+%
  • Output Ripple: 1% Max.
  • Switching Frequency: 65kHz
  • Line Regulation: ≤ 3%
  • Load Regulation: ≤ 5%
  • 2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-)
  • 4-Pair Powering: -
  • Operating Temperature: 0 to 40° C (32 to 104° F)
  • Storage Temperature: -30 to 70° C (-22 to 158° F)
  • Operating Humidity: 35 to 95% Noncondensing
  • AC Connector: IEC-320 C6

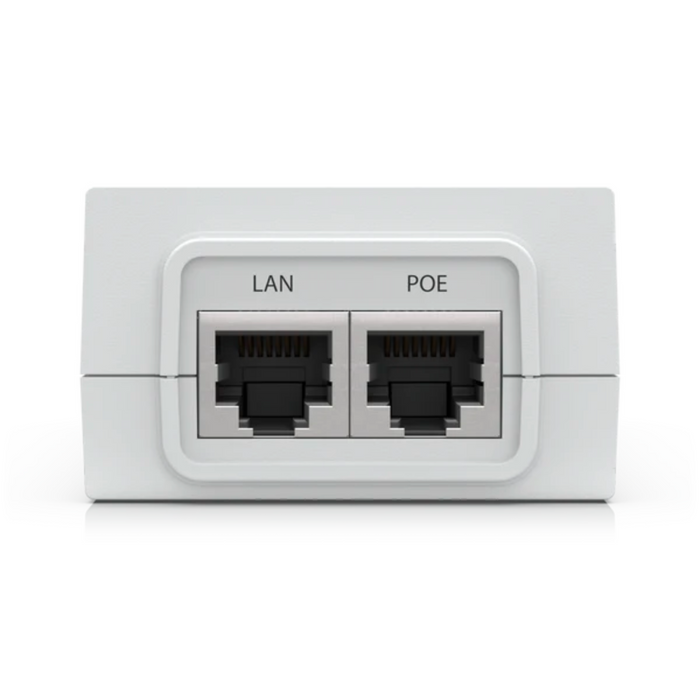

  • Data IN / PoE: RJ45 Shielded Socket
  • Surge Protection: Difference and Common Mode
  • Clamping Protection: 11V Data, 60V Power
  • Max. Surge Discharge: 1500A (8/20 μs) Power
  • Peak Pulse Current: 36A (10/1000 μs) Data
  • Shunt Capacitance: <5 pF data
  • Response Time: <1 ns
  • Certifications: CE, FCC, IC, UL
