Ubiquiti LiteBeam M5 23dBi 5GHz Wireless Broadband CPE US

LBE-M5-23 US by Ubiquiti Networks
Sold out
Original price $47.95 - Original price $47.95
Original price
$47.95 - $47.95
Current price $47.95

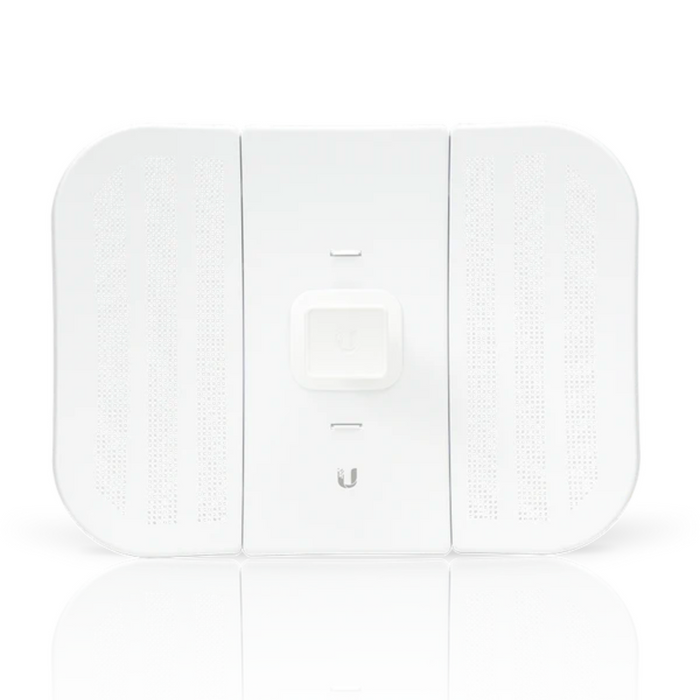

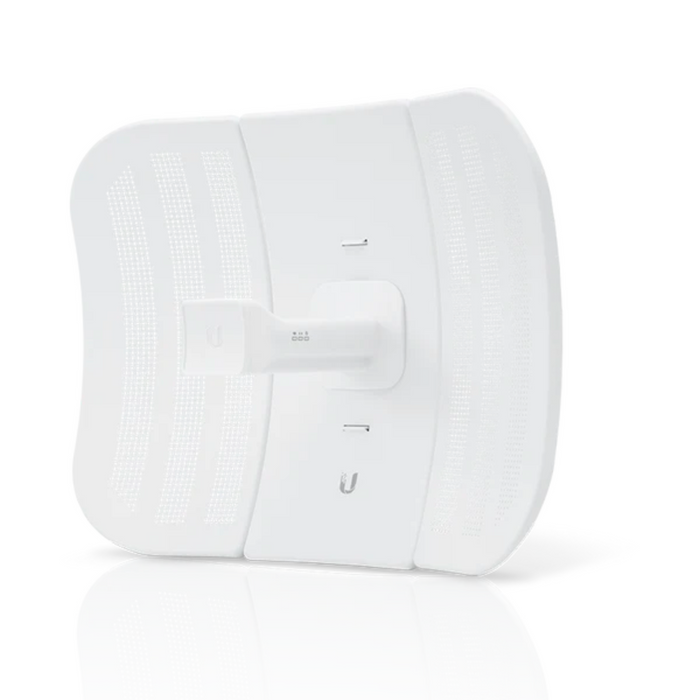

The Ubiquiti LiteBeam M5 combines proprietary hardware and software technologies to deliver its breakthrough combination of throughput and range with cost-effective value. Its InnerFeed technology integrates the entire radio system into the feedhorn of the antenna, and the revolutionary airMAX TDMA protocol enhances network performance and scalability.

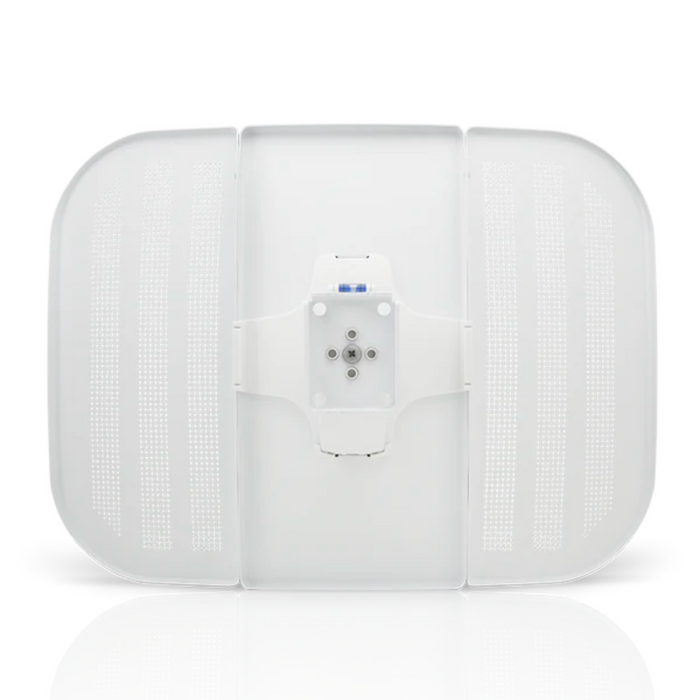

The Ubiquiti LBE-M5-23 also features a unique ball joint mounting system that provides 3-axis adjustment flexibility for versatile mounting options. The mounting system, coupled with the built-in bubble level, enables quick and easy alignment.

Product Features:

  • High-gain, directional antenna
  • Breakthrough industrial design
  • Compact size
  • Light weight
Product Specifications:
  • Processor Specs: MIPS 74K
  • Memory: 64MB
  • Network Interface: 1 x 10/100 Ethernet Port
  • Operating Frequency: Worldwide: 5150 - 5875MHz, USA: 5150 - 5250, 5725 - 5850MHz
  • Antenna Gain: 23dBi
  • Maximum Power Output: 25dBm
  • Maximum Power Consumption: 4W
  • Power Supply: 24V, 0.2A PoE Adapter
  • Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
  • Operating Temperature: -40°F to 158°F (-40°C to 70°C)
  • Operating Humidity: 5 to 95% noncondensing
  • Wind Survivability: 125mph (200km/h)
Product Includes:
(1) Antenna Feed
(1) Center Reflector Panel
(2) Side Reflector Panels
(1) Feed Receiver
(1) Ball Joint Mount
(1) Metal Strap
(1) Power Cord
(1) PoE Adapter (24V, 0.2A)
(1) Quick Start Guide
