Ubiquiti Four-stream 802.11ac Wave 2 Access Point AC SHD

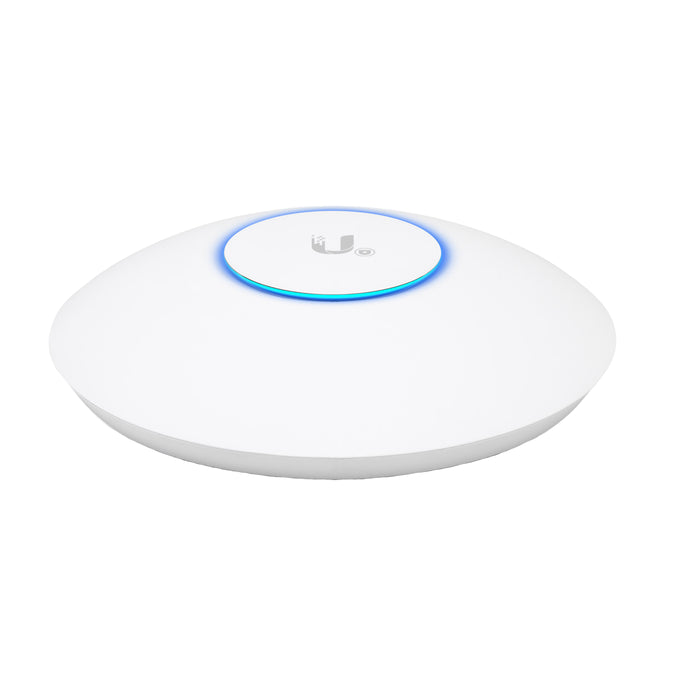

The Access Point AC SHD (UAP AC SHD) is a high-performance, indoor/outdoor, 802.11 ac WiFi access point that utilizes Wave 2 technology to reach an impressive 2.5 Gbps aggregate throughput rate with its 5 GHz (4x4 MU-MIMO) and 2.4 GHz (4x4 MIMO) bands. The UAP AC SHD is also equipped with a dedicated security radio that persistently surveys and removes threats from your network. This access point is powered with 802.3at PoE+ and is equipped with (2) GbE RJ45 ports and (1) USB port to support multiple connection types. The UAP AC SHD can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
- The UniFi SHD AP features the latest in Wi-Fi 802.11ac Wave 2 MU‑MIMO technology combined with dedicated security and Bluetooth radios.
- The system integrator can leverage the controller to easily configure and administer an enterprise Wi-Fi network.
- The system integrator can start with one (or upgrade to a multi‑pack) and expand to thousands while maintaining a single unified management system.
- UniFi comes bundled with a software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service.
- Dimensions: 220 x 220 x 48.1 mm (8.66 x 8.66 x 1.89")
- Weight With Mounting Kits: 700 g (1.54 lb), 830 g (1.83 lb)
- Networking Interface: (2) 10/100/1000 Ethernet Ports
- Buttons: Reset
- Power Method: 802.3at PoE+
- Supported Voltage Range: 44 to 57VDC
- Power Supply: UniFi Switch (PoE)
- Power Save: Supported
- Beamforming: Supported
- Maximum Power Consumption: 20W
- Radios: 2.4GHz, 5GHz, Security
- TX Power: 2.4GHz + 5GHz: 6dBm - 25dBm
- Antennas: 2.4GHz + 5GHz (2) Dual-Port, Dual-Polarity Antennas, 6dBi each
- Wi-Fi Standards: 802.11 a/b/g/n/r/k/v/ac/ac-wave2
- Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) 802.11w (PMF)
- BSSID: Up to 8 per Radio
- Mounting: Wall/Ceiling (Kits Included)
- Operating Temperature: -10 to 70° C (14 to 158° F)
- Operating Humidity: 5 to 95% Noncondensing
- Certifications: CE, FCC, IC
- VLAN: 802.1Q
- Advanced QoS: Per-User Rate Limiting
- Guest Traffic: Isolation Supported
- WMM: Voice, Video, Best Effort, and Background
- Concurrent Clients: 1000+
(1) Ubiquiti Networks UAP-AC-SHD 802.11AC Wave 2 Access Point with Dedicated Security Radio PoE Injector
(1) Mounting Bracket
(1) Ceiling Backing Plate
(4) Flat Head Screws
(4) Keps Nuts
(4) Screw Anchors
