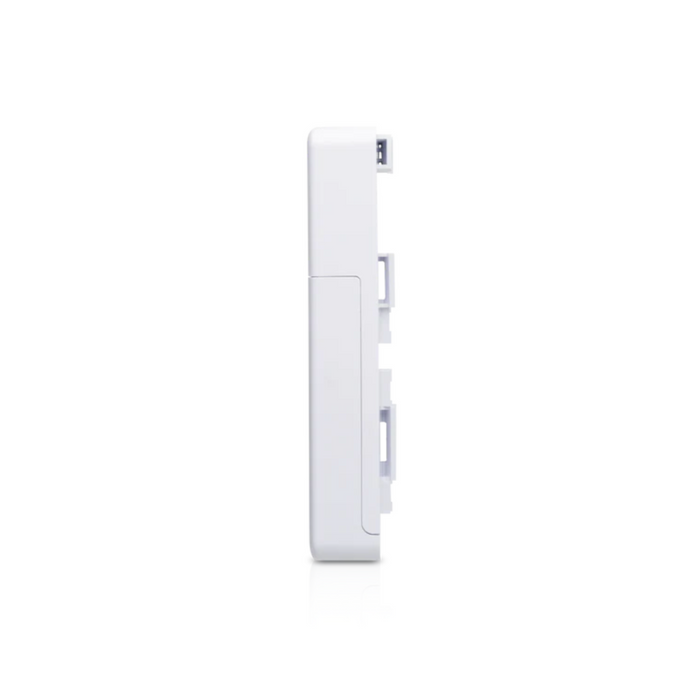

Ubiquiti FiberPoE Gen2 Optical Data Transport Outdoor PoE

F-POE-G2 by Ubiquiti Networks
Sold out
Original price $33.95 - Original price $33.95
Original price
$33.95
$33.95 - $33.95
Current price $33.95

Ubiquiti FiberPoE Gen 2 is a low-cost solution for outdoor deployments that require long-distance runs to reach the PoE device. Deployments with the FiberPoE Gen 2 provide significant EMI and ESD protection over typical PoE installations. The FiberPoE Gen 2 also features a durable, weatherproof form factor and enhanced surge protection. With the FiberPoE Gen 2, data and power are transported on separate cables to greatly improve data integrity and enable much longer cable runs.


Product Specifications:

  • Dimensions: 196.4 x 93.5 x 32.4 mm ( 7.73 x 3.68 x 1.28")
  • Weight: 288g (10.2 oz)
  • Enclosure: White Polycarbonate

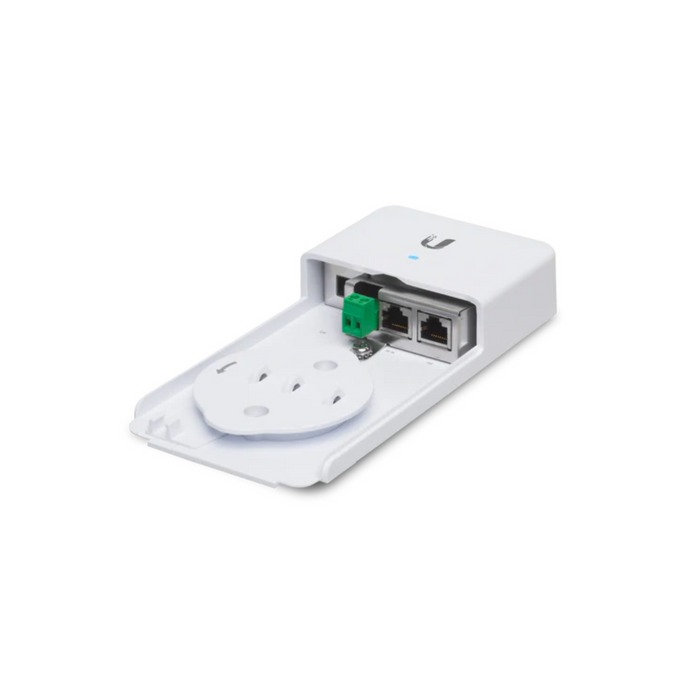

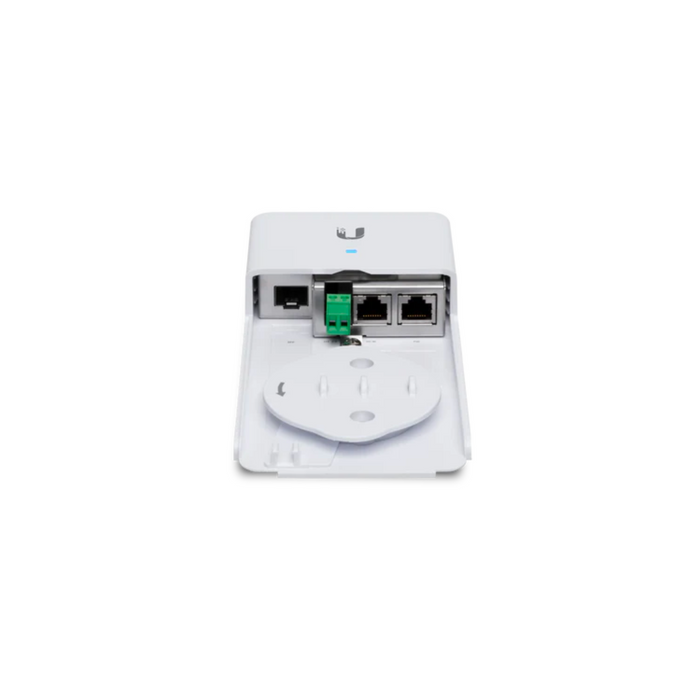

Interface Connections:
  • (1) 1 Gbps SFP Port
  • (1) DC Terminal Block
  • (1) DC RJ45 Port DC Injection
  • (1) 1000 Mbps Ethernet PoE Port1
  • Typical Power Consumption: 1.5W
Power Method:
  • DC Terminal Block, 2-Wire, 24VDC or 50VDC
  • DC In RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC Input), or
  • 4-Pair (24VDC or 50VDC Input) Passthrough
  • PoE RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC Input), or
  • 4-Pair (24VDC or 50VDC Input) PoE Passthrough
  • PoE Output: PoE RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC), or 4-Pair (24VDC or 50VDC) PoE
  • DC Output Terminal Block, 2-Wire (24VDC or 50VDC)
  • Input DC Voltage 16 to 57V
  • Surge Protection Built-In High-Current Gas Discharge Tube for DC Terminal Block and PoE Port
  • LED White: Power On, Blue: Connected, Blue (Flashing): Activity
  • Operating Temperature -40 to 60° C2 (-40 to 140° F)
  • Operating Humidity 10 to 95% Noncondensing
  • ESD/EMP Protection ± 24kV Contact / Air for Ethernet
  • Certifications: CE, FCC, IC
Product Includes:


(1) FiberPoE Gen 2(1) Self-Tapping Screw(2) Metal Straps


Product Documentation:


F-POE-G2 Datasheet
