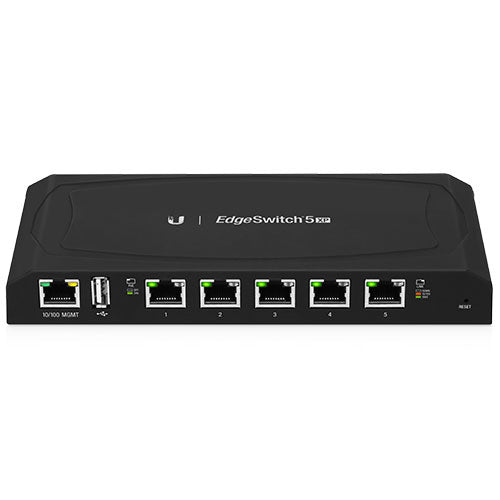

Ubiquiti EdgeSwitch 5XP 5-Port Gigabit PoE Switch

ES-5XP by Ubiquiti Networks
Sold out
Original price $99.00 - Original price $99.00
Original price
$99.00
$99.00 - $99.00
Current price $99.00

Ubiquiti EdgeSwitch 5XP is a cost-effective, 5-Port gigabit switch with 24V PoE support. EdgeSwitch XP allows network architects to design cleaner, less cluttered deployments. EdgeSwitch XP deployments increase efficiency and greatly reduce potential failure points – resulting in faster installations and less maintenance and troubleshooting.


Product Features:

  • 5 Gigabit PoE Ports
  • 24V Configurable Passive PoE
  • EdgeSwitch XP Configurable Interface
  • Wall-Mountable
Product Specifications:
  • Dimensions: 197 x 87.5 x 27.3 mm
  • Weight: 250 g
  • Power Input: 24VDC, 2.5A Power Adapter (Included)
  • Max. Power Consumption: 60 W
  • PoE Out Voltage Range: 22-24VDC
  • Max/ PoE Wattage Per Data Port: 11.5 W
  • ESD Rating: 24 kV Air / 24 kV Contact
  • PoE Method: Passive
  • Button: Reset
  • USB Port: 2.0 Type A (Reserved for Future Use)
  • Processor: MIPS 24K, 400 MHz
  • System Memory: 64 MB
  • Code Storage: 8 MB
  • Certifications: CE, FCC, IC
  • Wall-Mount: Yes
  • Operating Temperature: -25 to 55°C (-13 to 131° F)
  • Operating Humidity: 90% Non-Condensing
PoE Configurable Per Port:
  • Management Port: N/A
  • Data Ports: Off/24V
LEDs Per Port:
  • Management Port: Power /Link/Activity
  • Data Ports: PoE, Speed/ Link/ Activity
Networking Interfaces:
  • Management Port: (1) 10/100 Ethernet Port
  • Data Ports: (5) 10/100/1000 Ethernet Ports
Product Includes:


(1) Ubiquiti EdgeSwitch 5XP

(2) Screws

(2) Anchors

(1) Power Adapter (24V, 2.5A)

(1) Power Cord

(1) Quick Start Guide
