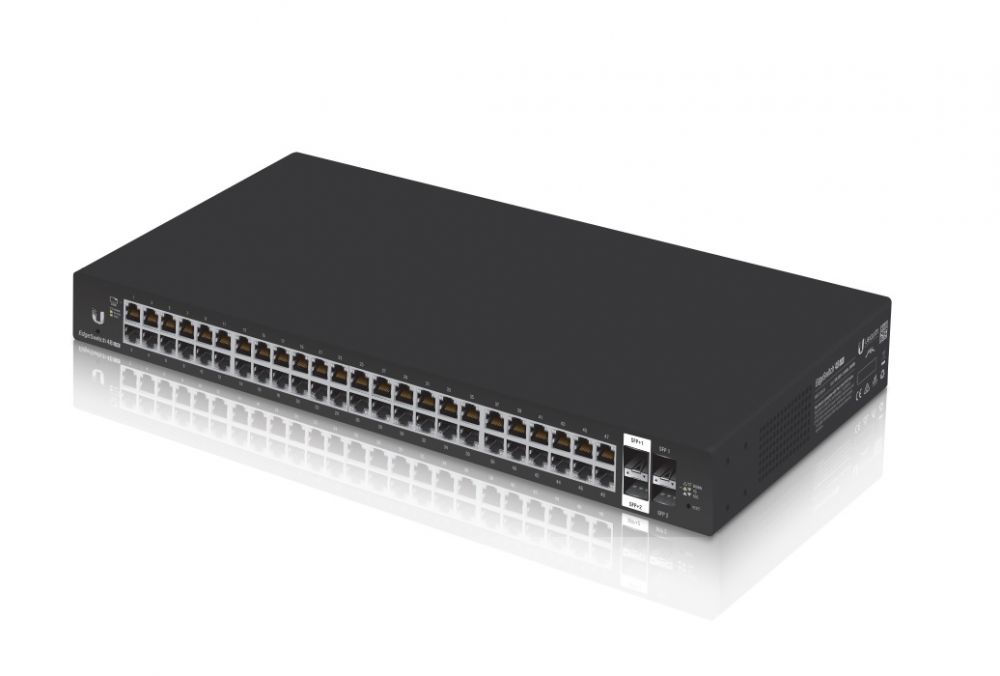

Ubiquiti EdgeSwitch 48-Port Lite Gigabit Switch 56W

ES-48-LITE by Ubiquiti Networks
Sold out
Original price $483.50 - Original price $483.50
Original price
$483.50
$483.50 - $483.50
Current price $483.50

The EdgeSwitch ES-48-LITE is 48-Port Gigabit switch. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides layer-3 routing capabilities. This model has a 70Gbps throughput, 140Gbps switching with 56W maximum AC power consumption. ES-48-LITE also features 2 SFP+ and 2 SFP ports, for your fiber connectivity needs.


Product Features:

  • (48) Gigabit RJ45 Ports
  • (2) SFP+ Ports
  • (2) SFP Ports
  • (1) Serial Console Port
  • Non-Blocking Throughput: 70 Gbps
  • Switching Capacity: 140 Gbps
  • Forwarding Rate: 104.16 Mpps
  • Maximum Power Consumption: 56W
  • Rack- or Wall-Mountable
  • Option: Redundant Power Supply Unit (PSU), Used as a Hot Spare
  • Ubiquiti Networks EdgeSwitch PSU, 56W
  • External PSU (Minimum Power: 56W, 25 to 16V) with 2.5 mm DC Power Inline Connector
Product Specifications:
  • Dimensions: 443 x 43 x 286mm (17.44 x 1.69 x 11.26")
  • Weight: Rack-Mount Brackets Included: 3.65kg (8.05lbs), Rack-Mount Brackets Excluded: 3.56kg (7.85lbs)
  • Total Non-Blocking Throughput: 70Gbps
  • Switching Capacity: 140Gbps
  • Forwarding Rate: 104.16Mpps
  • Max. AC Power Consumption: 56W
  • Power Method: 100-240VAC/50-60Hz, Universal Input. DC 25V/56W Min.
  • Power Supply: AC/DC, Internal, 56W FC
  • LEDs per Port: Serial Console Port: N/A, RJ45 Data Ports: Speed/Link/Activity, SFP Data Ports: Speed/Link/Activity
  • Networking Interfaces: (48) 10/100/1000Mbps RJ45 Ethernet Ports + (2) 1Gbps SFP Ethernet Ports + (2) 1/10Gbps SFP+ Ethernet Ports
  • Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
  • Certifications: CE, FCC, IC
  • Rackmount: Yes, 1U High
  • ESD/EMP Protection: Air:±24kV, Contact: ±24kV
  • Operating Temperature: -5 to 40°C (23 to 104°F)
  • Operating Humidity: 5 to 95% non-condensing
  • Shock and Vibration: ETSI300-019-1.4 Standard
Product Includes:


(1) EdgeSwitch 48-Port Lite Gigabit Switch 56W

(1) Power Cord

(2) Rack-Mount Brackets

(8) M4 Bracket Screws

(4) #10-32 x 5/8" Mounting Screws

(4) #10-32 x 5/8" Cage Nuts

(1) Quick Start Guide
