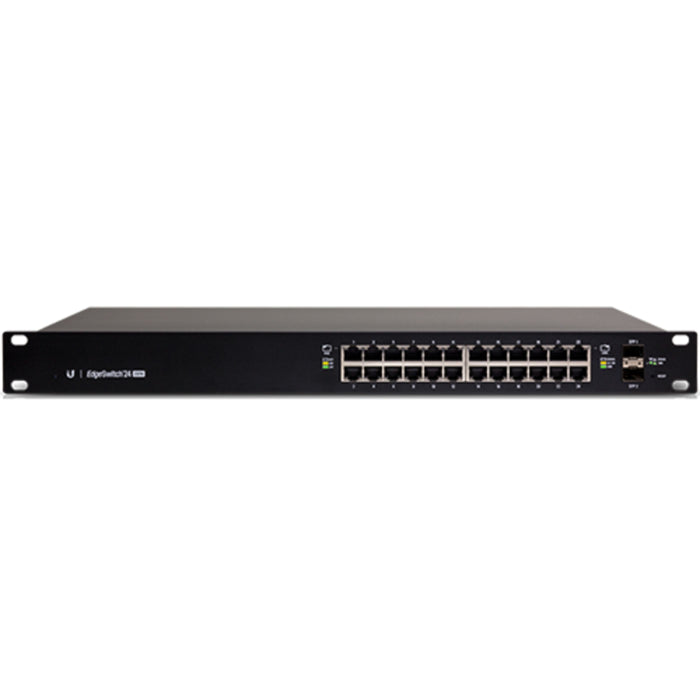

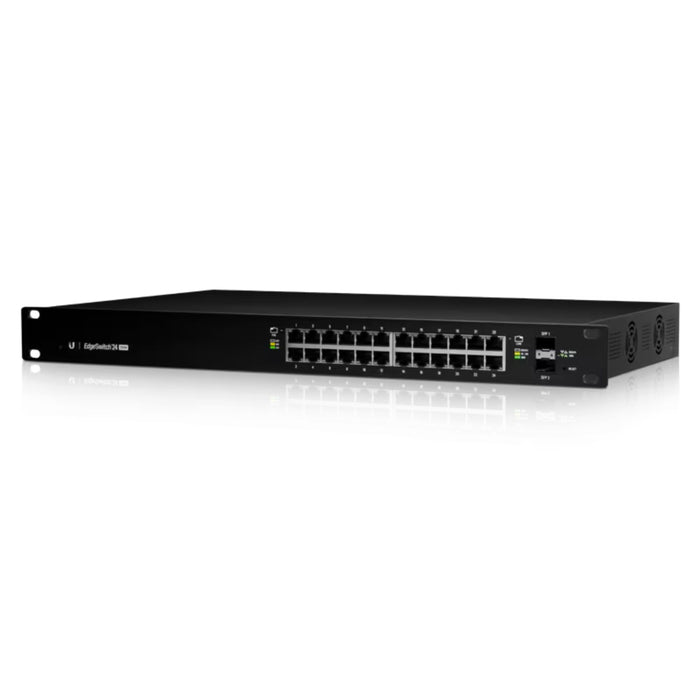

Ubiquiti EdgeSwitch 24-Port PoE Switch 250W

The EdgeSwitch ES-24-250W is 24-Port, Managed PoE+ Gigabit switch with 250W non-blocking throughput switching performance, Gigabit Ethernet RJ45 and SFP+SFP Ports and Auto-Sensing IEEE 802.3af/at PoE. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides layer-3 routing capabilities.

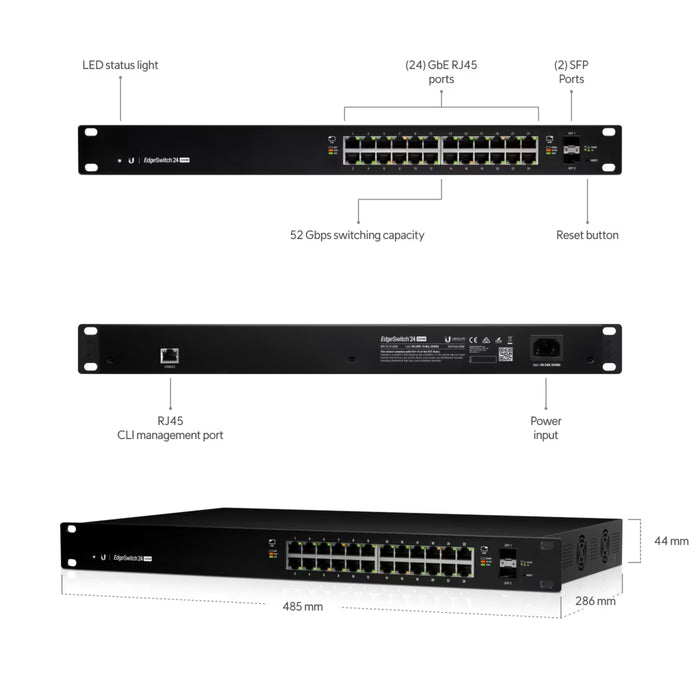

• (24) Gigabit RJ45 ports
• (2) SFP ports
• Total, non-blocking throughput: 26 Gbps
• Maximum power consumption: 250W
• Supports POE+ IEEE 802.3at/af and 24V Passive PoE
• Rackmountable
• Max Deliverable PoE: 250W

• Dimensions: 485 x 43.7 x 285.4mm (19.09 x 1.72 x 11.24")
• Weight: 4.7kg (10.4lbs)
• Total Non-Blocking Throughput: 26Gbps
• Switching Capacity: 52Gbps
• Forwarding Rate: 38.69 Mpps
• Max. Power Consumption: Includes PoE Output: 250W, Excludes PoE Output: 30W
• Power Method: 100-240VAC / 50-60Hz, Universal Input
• Power Supply: AC/DC, Internal, 250W DC
• LEDs Per Port: RJ45 Data Ports: PoE, Speed/Link/Activity, SFP Data Ports: Speed/Link/Activity
• Networking Interfaces: (24) 10/100/1000Mbps RJ45 Ethernet Ports + (2) 1Gbps SFP Ethernet Ports
• Management Interface: (1) RJ45 SerialPort, Ethernet In/Out Band
• Certifications: CE, FCC, IC
• Rackmount: Yes, 1U High
• ESD/EMP Protection: Air: ±24kV / Contact: ±24kV
• Operating Temperature: -5 to 40°C (23 to 104°F)
• Operating Humidity: 5 to 95% non-condensing
• Shock and Vibration: ETSI300-019-1.4 Standard

• PoE Interfaces: PoE+ IEEE 802.3af/at (Pins 1,2+;3,5-) / 24VDC Passive PoE (Pins 4,5+;7,8-)
• Max. PoE+ Wattage per Port by PSE: 34.2W
• Voltage Range 802.3at Mode: 50-57V
• Max. Passive PoE Wattage per Port: 17W
• 24V Passive PoE Voltage Range: 20-27V

(1) Ubiquiti EdgeSwitch 24-Port PoE Switch 250W

(1) Power Cord

(4) #10-32 x 5/8" Mounting Screws

(4) #10-32 x 5/8" Cage Nuts

(1) Quick Start Guide
