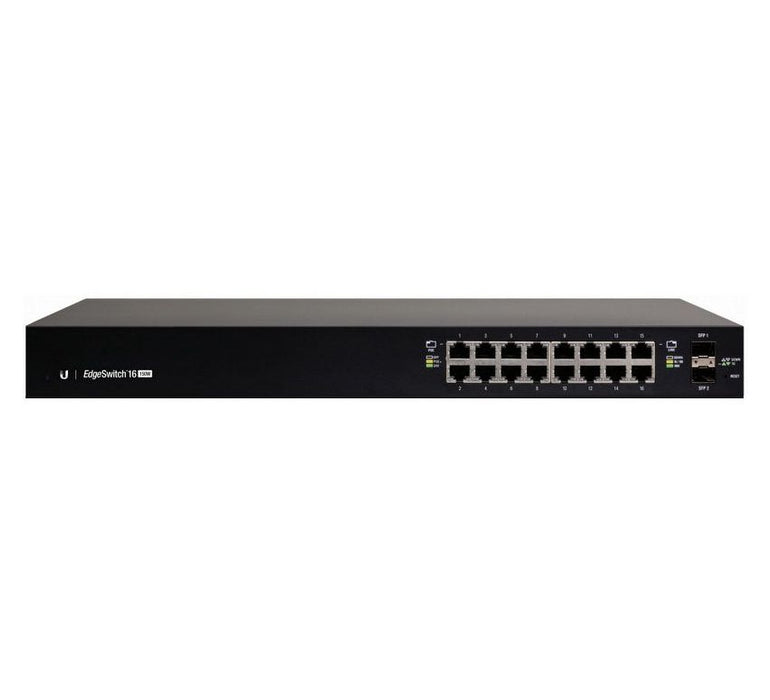

Ubiquiti EdgeSwitch 16-Port PoE Switch 150W

ES-16-150W by Ubiquiti Networks
Sold out
Original price $362.25 - Original price $362.25
Original price
$362.25
$362.25 - $362.25
Current price $362.25

The EdgeSwitch ES-16-150W is 16-Port Gigabit switch. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides layer-3 routing capabilities.EdgeSwitch, 16 ports, Managed PoE+ Gigabit Switches, 150 W. Non-Blocking Throughput Switching performance, Gigabit Ethernet RJ45 and SFP+/SFP Ports and Auto-Sensing IEEE 802.3af/at PoE. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides layer-3 routing capability.


Product Features:


• (16) Gigabit RJ45 Ports

• (2) SFP Ports

• (1) Serial Console Port

• Non-Blocking Throughput: 18Gbps

• Switching Capacity: 36Gbps

• Forwarding Rate: 26.78Mpps

• Maximum Power Consumption: 150W

• Supports POE+ IEEE 802.3at/af and 24V Passive PoE

• Rackmountable with Rack-Mount Brackets (Included)


Product Specifications:


• Dimensions: 443 x 43 x 221mm (17.44 x 1.69 x 8.70")

• Weight: Without Mount Brackets: 2.80kg (6.17lbs), With Mount Brackets: 2.89kg (6.37lbs)

• Total Non-Blocking Throughput: 18Gbps

• Switching Capacity: 36Gbps

• Forwarding Rate: 26.78Mpps

• Max. Power Consumption: Includes PoE Output: 150W Excludes PoE Output: 28W

• Power Method: 100-240VAC / 50-60Hz, Universal Input

• Power Supply: AC/DC, Internal, 150W DC

• LEDs per Port: RJ45 Data Ports: PoE, Speed/Link/Activity SFP Data Ports: Speed/Link/Activity

• Networking Interfaces: (16) 10/100/1000Mbps RJ45 Ethernet Ports + (2) 1Gbps SFP Ethernet Ports

• Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band

• Certifications: CE, FCC, IC• Rackmount: Yes, 1U High

• ESD/EMP Protection: Air: plusmn;24kV / Contact: Plusmn;24kV

• Operating Temperature: -5 to 40°C (23 to 104°F)

• Operating Humidity: 5 to 95% non-condensing

• Shock and Vibration: ETSI300-019-1.4 Standard

PoE per Port

• PoE Interfaces: PoE+ IEEE 802.3af/at (Pins 1,2+;3,6-) / 24VDC Passive PoE (Pins 4,5+;7,8-)• Max. PoE+ Wattage per Port by PSE: 34.2W

• Voltage Range 802.3at Mode: 50-57V

• Max. Passive PoE Wattage per Port: 17W

• 24V Passive PoE Voltage Range: 20-27V


Product Documentation:
