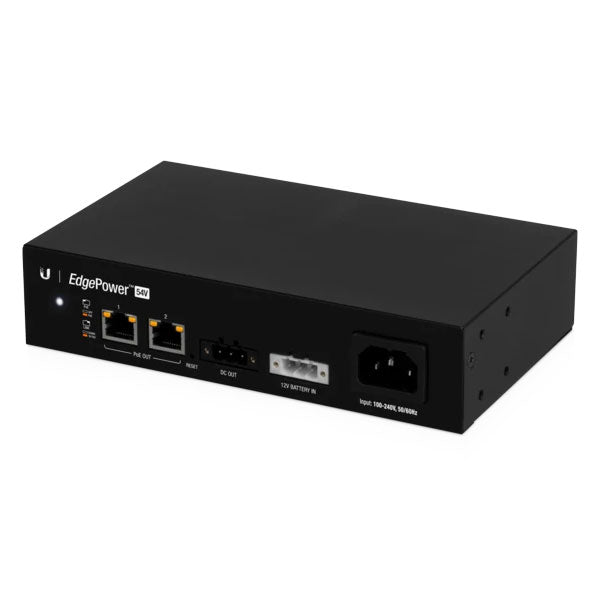

Ubiquiti EdgePower 54V DC 72W Power Supply w/ Integrated Battery Backup

EP-54V-72W by Ubiquiti Networks
Original price $169.00 - Original price $169.00
Original price
$169.00
$169.00 - $169.00
Current price $169.00

Ubiquiti EdgePower 54V 72W is a UNMS (Ubiquiti Network Management System) monitored and managed 54V DC power supply with integrated battery backup. This product provides WISPs with an easy-to-install 54V redundant power supply that includes a management user interface, SNMP (Simple Network Management Protocol), and simple 12V battery backup charger with multiple 54V outputs for small sites.UPS (Uninterruptible Power Supply) of WISPYou can receive alerts in the event of a power outage, and the EdgePower 54V offers a 12V lead acid battery input for redundancy if the AC input fails over (battery not included).Designed for convenient management, the EdgePower allows you to configure and monitor PSU features in a graphical user interface. You can also use UNMS for remote management, and SNMP is available to monitor the EdgePower for issues that warrant attention.


12V Battery Not Included


Product Features:


• 100-240VAC, 50-60 Hz, Universal Input

• 54V DC Output (terminal connector with dual DC barrel jack included)

• 12V Lead Acid Battery Input (Not Included)

• Two, 10/100 Ethernet, 54V Passive PoE output, switch-ports


Product Specifications:


• Networking: (2) 10/100 Mbps RJ45 Ports

• Management: Ethernet In-Band

• PoE Output: (2) 54VDC Passive PoE (Pins 4, 5+; 7, 8-)

• DC Output: 54V, 1.3A

Power Method

• AC Input: 100-240VAC, 50-60 Hz, Universal Input

• Battery Input: DC Terminal Block

Power Supply

• AC Input: AC/DC 72W

• Battery Input: 12VDC Lead Acid Battery (Not Included)

Max. Power Consumption

• System: 2W

• Output: 72W

LEDs

• System: Status

• RJ45 Data Ports: PoE; Link/ Activity

• ESD/ EMP Protection: Air: ± 12 kV, Contact ± 12 kV

• Operating Temperature: 0 to 40° C (32 to 104° F)

• Operating Humidity: 10 to 90% Non-condensing

• Certifications: CE, FCC, IC



Product Includes:


(1) EdgePower Power Supply

(2) Mount Brackets

(8) Bracket Screws

(2) Wall Mount Screws

(2) Wall Mount Anchors

(1) Power Cord

(1) Power Cable with DC Jack

(1) Power Cable with Ring Terminals
