Ubiquiti EdgePoint R6 Intelligent WISP Control Point Layer-3 Router with FiberProtect

Sold out
Original price $143.25 - Original price $143.25
Original price
$143.25
$143.25 - $143.25
Current price $143.25

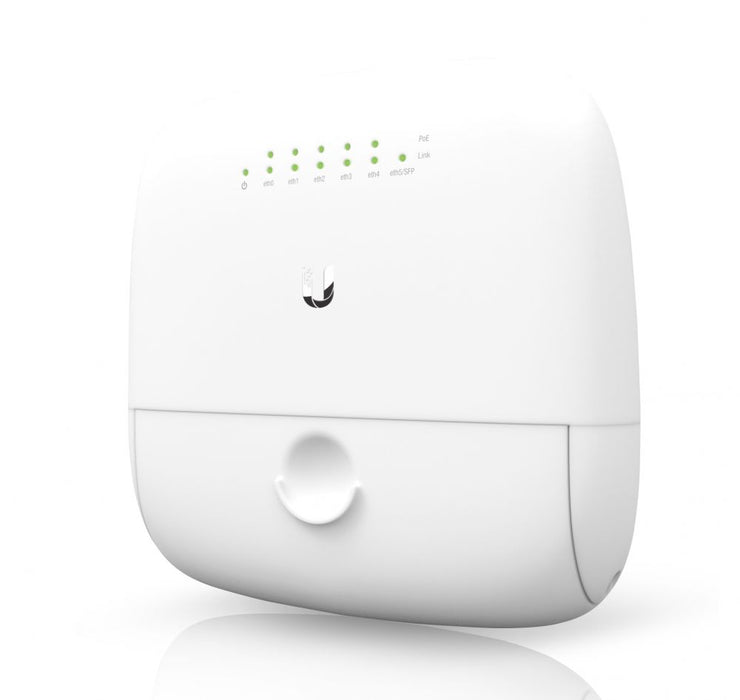

Ubiquiti Networks EdgePoint combines EdgeMAX routing features with fiber backhaul and versatile power capabilities. EP-R6 includes powerful routing features, such as load balancing and failover, providing redundancy and increased performance for outdoor wireless links. EP-R6 is powered by 24VDC or by PoE, and able to support 24V passive PoE to power most Ubiquiti products. A single, compact controller efficiently eliminates clutter, expensive cabinets, extraneous installations, and excessive maintenance.


Product Features:

  • (5) RJ45 Ethernet ports
  • (1) SFP Ethernet port
  • 24VDC, 3A Terminal Block
  • PoE Input: (5) 24V, 0.7A Passive PoE
  • Output Ports: (1) SFP Port
Product Specifications:
  • Dimensions: 188.6 x 177.1 x 49.8mm (7.43 x 6.97 x 1.96")
  • Weight: 605g (1.33lbs)
  • Enclosure Characteristics: Polycarbonate with UV Resistance
  • Max. Power Consumption: 7W (excludes PoE output)
Power Input:


(1) DC Terminal Block

(1) RJ34 (eth0) (Self-Correcting Polarity Protection on DC Terminal Block Only, Diode ORed Protection on All Power Inputs)

  • Power Supply: Min. 24V / 0.3A (excludes PoE output power)
  • VDC Input: 24V, 3A
  • Passive PoE Input: (1) 24V / 1.4A, 4-Pair (+1,2,3,4,5; -3,6,7,8) Passive PoE, eth0 (Do NOT Configure eth0 in PoE Output Mode if You're Using a POE Input Power Source)
  • Passive PoE Output: (5) 24V / 0.7A, 2-Pair (+4,5;-7,8) Passive PoE, eth0 to eth4
  • Power Monitoring: (1) DC Terminal Block, Input Power / (1) RJ45, eth0, Input Power
  • Supported Voltage Range: 26 to 16VDC
  • Button: Reset
LEDs:
  • System: Power, eth0 to eth4: Speed/Link/Activity, PoE, eth5/SFP: Speed/Link/Activity
  • Data Ports: (5) 10/100/1000 RJ45 Ports + (1) 1Gbps SFP Port
  • Processor: Dual-Core 880MHz, MIPS1004Kc
  • System Memory: 256MB DDR3-1600 RAM
  • Code Storage: 256MB NAND
  • Certifications: CE, FCC, IC
  • Pole Mount: Yes
  • Operating Temperature: -40 to 65°C (-40 to 149°F)
  • Operating Humidity: 10 to 90% non-condensing
Product Includes:


(1) EdgePoint Router

(1) Metal Strap

(1) Gigabit PoE (24V, 1.25A) with Mounting Bracket

(1) Power Cord

(1) Quick start guide
