Ubiquiti EdgeMAX EdgeRouter 4-Port Gigabit Router with SFP

Ubiquiti EdgeMAX EdgeRouter 4-Port Gigabit Router with SFP

ER-4 by Ubiquiti Networks
Ubiquiti Networks ER-4 Datasheet
Sold out
$199.00 - $199.00
$199.00
$199.00 - $199.00
$199.00

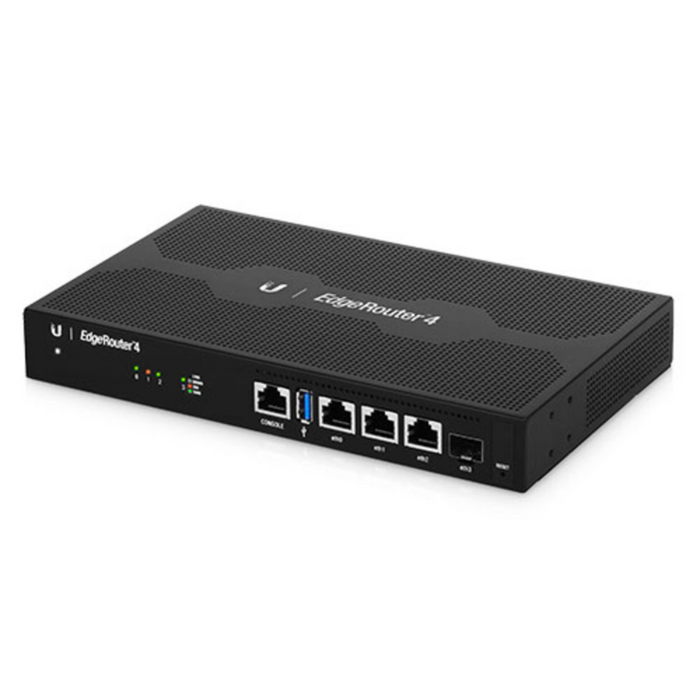

(1) Ubiquiti Networks introduces the EdgeRouter 4, part of the next generation of routers for the EdgeMAX platform. Edge Routers combine carrier-class reliability with enterprise-level features in a compact and affordable unit. The EdgeRouter 4 offers three Gigabit Ethernet ports and an SFP port for a fiber link. The Ubiquiti EdgeRouter 4 is capable of routing up to 3.4 million packets per second and has a line rate of 4 Gbps.


Direct Traffic Flow:

  • Interfaces: Each Gigabit port functions as an independent interface. You can also configure Virtual Local Area Network (VLAN) interfaces to meet your network segmentation requirements.
  • Routing: Configure static routes and dynamic routing protocols to effectively manage the routes used by the EdgeRouter.


Secure Your Network:
  • Firewall Policies: Organize the rules you apply in the order you specify.
  • Firewall Groups: Apply the policies to groups filtered by IP address, network address, or port number.
  • NAT Rules: The EdgeRouter Lite changes packet addressing based on your customized source and destination NAT rules.


Manage Your Network:
  • DHCP Server: Set up multiple DHCP servers to assign IP ranges in different subnets on the different interfaces. Easily control dynamic and static IP addressing for your network devices.
  • Monitoring Tools: Conveniently track network activity and devices from tools such as Ping, Trace, Discover, Packet Capture, and Log Monitor.
  • User Accounts: Manage access to the EdgeRouter Lite using unique administrator and operator accounts.


Product Specifications:
  • Processor: 4-Core 1 GHz, MIPS64
  • System Memory: 1GB DDR3 RAM
  • Onboard Flash Storage: 4GB eMMC, 8MB SPI NOR
  • Power Input: 110 - 240VAC
  • Rack-mountable: Yes
  • Data Ports: (3) 10/100/1000 Ethernet Ports, (1) 1 Gbps SFP Port
  • Serial Console Port: (1) RJ45 Serial Port
  • Packet Size: 64 Bytes - 3,400,000 pps
  • Packet Size: 128 Bytes or larger - 4 Gbps (Line Rate)
  • Dimensions: 229 x 136.5 x 31.1 mm (9.02 x 5.37 x 1.22 in)
  • Weight: 1.76lbs (0.8kg)


Product Includes:


(1) EdgeRouter 4-port

(1)  Set of Wall Mount Anchors

(1)  Set of Wall Mount Screws

(1) Power Cord

(1) Quick Start Guide
