Ubiquiti EdgeMAX 5-Port Gigabit 5W EdgeRouter X

Sold out
Original price $66.95 - Original price $66.95
Original price
$66.95
$66.95 - $66.95
Current price $66.95

The Ubiquiti ER-X accepts PoE input and features a passive PoE passthrough option to power an airMAX device, while the ER-X-SFP model supports 24V passive PoE to power up to five airMAX devices. Both models, the ER-X and ER-X-SFP, provide five independent, Gigabit RJ45 ports that are configurable for switching. The ER-X-SFP adds an optical SFP port to support backhaul applications. The intuitive, graphical user interface is easy to learn and makes routing features simple to configure and monitor. It includes an integrated Command-Line Interface (CLI) for convenient access to advanced functions.


Product Features:

  • Sophisticated routing features
  • Advanced security, monitoring and management
  • Versatile PoE capability
  • Gigabit connectivity
  • EdgeOS with advanced GUI
Product Specifications:
  • Max. Power Consumption 5W
  • Power Input: 12VDC, 0.5A Power Adapter (Included) or 24V Passive PoE
  • Power Supply: External AC/DC Adapter
  • Supported Voltage Range: 9 to 26VDC

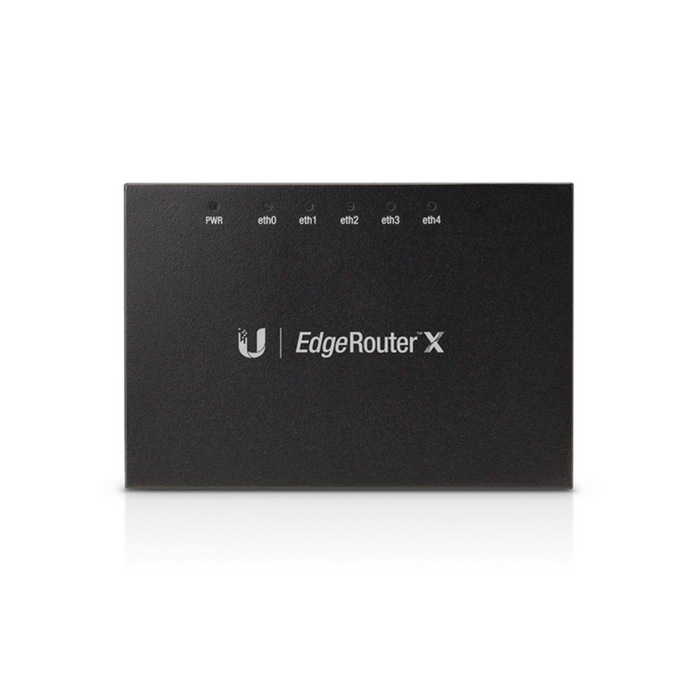

  • LED: Power, Ethernet 0-4
  • Processor: Dual-Core 880 MHz, MIPS1004Kc
  • System Memory: 256 MB DDR3 RAM
  • Code Storage: 256 MB NAND
  • Certifications: CE, FCC, IC
  • Wall-Mountable: Yes
  • ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
  • Operating Temperature: 14 to 113deg F (-10 to 45deg C)
Networking Interfaces:
  • Data/PoE Input Port: 1 x 10/100/1000 RJ45 Port
  • Data Ports: 3 x 10/100/1000 RJ45 Ports
  • Data/PoE Passthrough Port: 1 x 10/100/1000 RJ45 Port
Product Includes:
  • (1) Ubiquiti EdgeRouter X
  • (1) Power Adapter (12V, 0.5A)
  • (1) Quick Start Guide
24V passive PoE power adapter sold separately.


Product Documentation:



EdgeRouter X Data Sheet

EdgeRouter X Quick Start Guide
