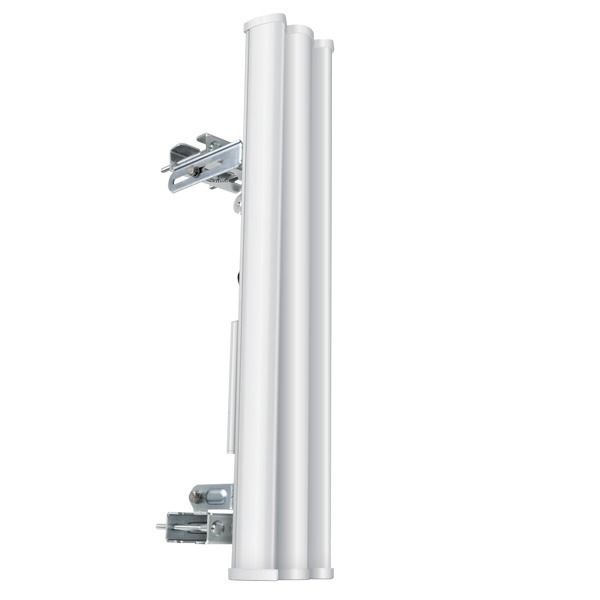

Ubiquiti Antenna 3GHz 18dBi 120-deg Dual-Pol Sector (RP-SMA pigtails included)

Ubiquiti Antenna 3GHz 18dBi 120-deg Dual-Pol Sector (RP-SMA pigtails included)

AM-3G18 by Ubiquiti Networks
Sold out
$218.95 - $218.95
$218.95
$218.95 - $218.95
$218.95

Ubiquiti Networks AM-3G18 is a sector antenna with a 120° beamwidth, 18dBi gain, and operating on 3GHz spectrum. Great to pair with the Rocket M365. Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M365 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included. Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.


Product Specifications:

  • Frequency Range: 3.3GHz - 3.8GHz
  • Gain: 17.3-18.2dBi
  • Polarization: Dual Linear
  • Cross-pol Isolation: 28dB min
  • Max VSWR: 1.5:1
  • Hpol Beamwidth (6dB): 118deg;
  • Vpol Beamwidth (6dB): 121deg;
  • Elevation Beamwidth: 6deg;
  • Electrical Downtilt: 2deg;
  • ETSI Specification: EN 302 326 DN2
  • Dimensions: 27.6x5.7x3.7in (700x145x93mm) diameter
  • Weight: 13.0lbs (5.9kg)
  • Windloading: 160 mph
Product Documentation:


Ubiquiti Dual-Pol Sector Antenna Data Sheet

Ubiquiti Dual-Pol Sector Antenna Support
