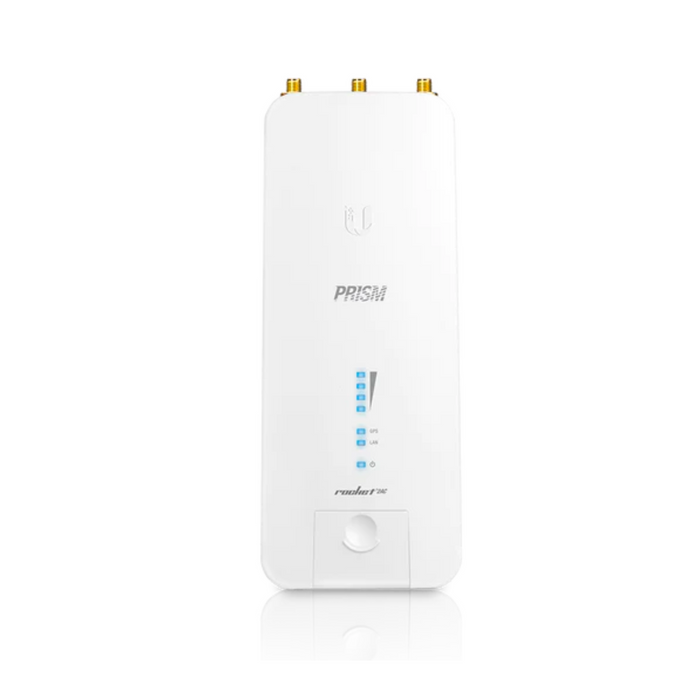

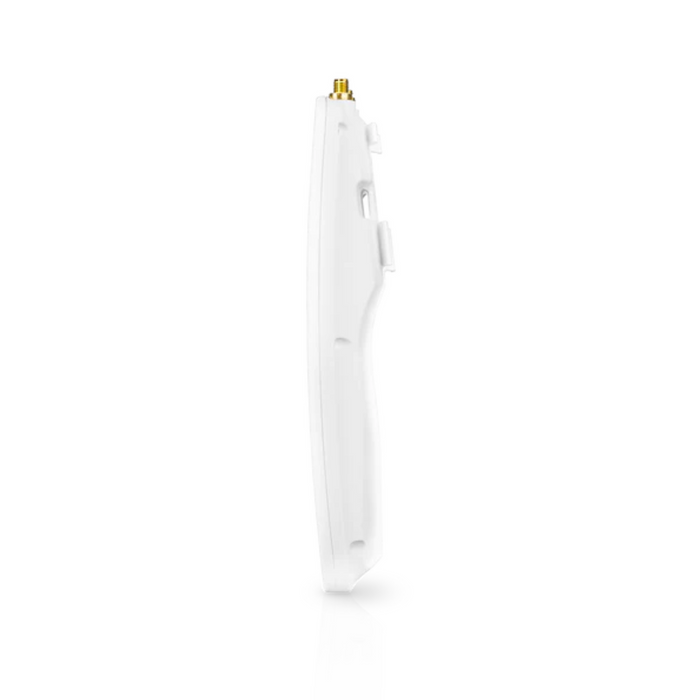

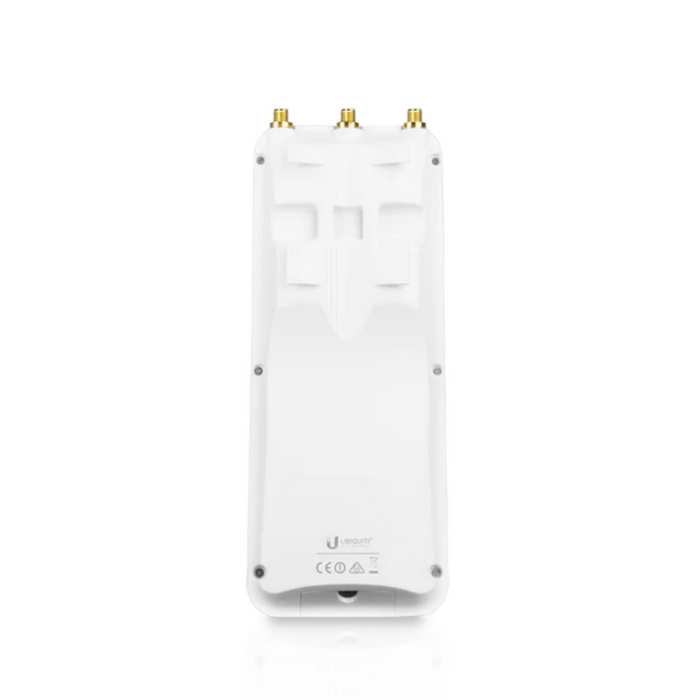

Ubiquiti airMAX Rocket 2AC Prism 2GHz 802.11ac BaseStation w/ airPrism US

R2AC-PRISM US by Ubiquiti Networks
Original price $238.95 - Original price $238.95
Original price
$238.95
$238.95 - $238.95
Current price $238.95

This product is a US version, intended for use in the US and Canada. This US version contains the following frequencies 2412 - 2462MHz.


Ubiquiti Networks R2AC-PRISM US features both airMAX ac and airPrism technologies for maximum wireless performance in high-density areas. The R2AC-PRISM US delivers complete coverage of the 2.4GHz spectrum with a single radio, allowing for flexibility in configuring channel bandwidths.


Product Specifications:

  • Dimensions: 88 x 40 x 230mm (3.47 x 1.58 x 9.06")
  • Weight: 440g (15.52oz)
  • Power Supply: 24V, 0.5A Gigabit PoE
  • Max. Power Consumption: 8.5W
  • Power Method: Passive PoE (Pairs 4,5+; 7,8 Return)
  • Supported Voltage Range: 18-26VDC
  • Operating Frequency: 2412 - 2462MHz
  • Networking Interface: (1) 10/100/1000 Ethernet Port

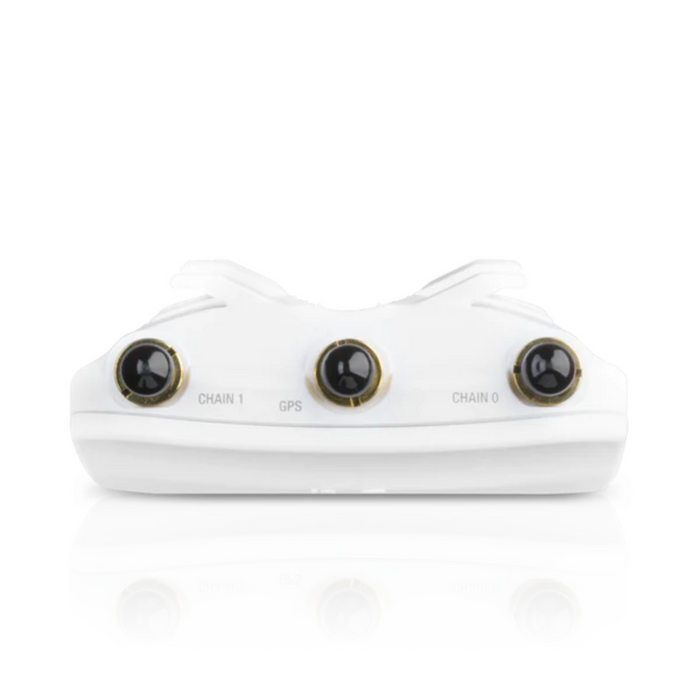

  • RF Connectors: (2) RP-SMA (Waterproof); (1) GPS (Waterproof)
  • Processor Specs: Atheros MIPS 74Kc, 720MHz
  • Memory: 128MB DDR2 SDRAM, 16MB NOR Flash
  • LEDs: Power, LAN, (4) Signal Strength, GPS
  • Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels
  • Channel Width Support: 10/20/40MHz
  • Enclosure Characteristics: Die-Cast Aluminum with White Powder Coating
  • ESD/EMP Protection: Air:±24kV, Contact:±24kV
  • Operating Temperature: -40 to 70°C (-40 to 158°F)
  • Operating Humidity: 5 to 95% non-condensing
  • Wireless Approvals: FCC, IC, CE
  • RoHS Compliance: Yes
  • Shock and Vibration: ETSI300-019-1.4
  • Modes: Access Point, Station
  • Services: Web Server, SNMP, SSH Server, Telnet, Ping Watchdog, DHCP, NAT, Bridging, Routing
  • Utilities: airMagic, airView, Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
  • Distance Adjustment: Dynamic Ack and Ackless Mode
  • Power Adjustment: Software Adjustable UI
  • Security: WPA2 AES Only
  • QoS: Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low
  • Statistical Reporting: Uptime, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate
  • Other: Remote Reset Support Software Enabled/Disabled, VLAN Support, 256QAM, GPS, TX Filter
  • Ubiquiti Specific Features: 10MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode
Product Documentation:


R2AC-PRISM US Datasheet
