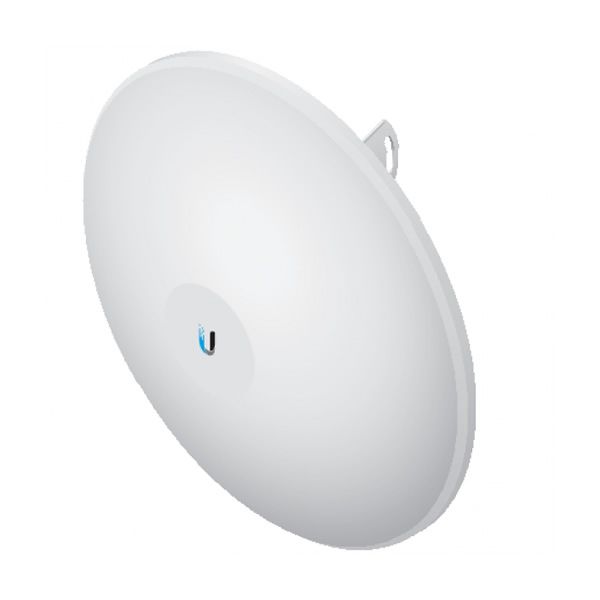

Ubiquiti airMAX PowerBeam 5GHz 27dBi 500mm 802.11ac Bridge (with radome) US

PBE-5AC-500 US-INV by Ubiquiti Networks
Original price $161.95 - Original price $161.95
Original price
$161.95
$161.95 - $161.95
Current price $161.95

US and Canada version: operating frequency 5725-5850Mhz. International version with additional operating frequency within Mhz is also available, SKU# PBE-5AC-500


Using airMAX 802.11ac technology, this kit supports up to 450+ Mbps throughput in a small form factor. It launches with PtP functionality, however client mode feature can be added with a firmware upgrade from Ubiquiti. The radio includes a protective radome cover to shield it from the environmental elements.


Product Features:
  • Processor: Atheros MIPS 74Kc, 720MHz
  • Memory: 128MB DDR2, 8 MB flash
  • Networking interface: (1) 10/100/1000 Ethernet port
  • Operating Frequency: 5725-5850Mhz
  • Channel size: 10/20/30/40/50/60/80MHz (PtP) / 10/20/30/40MHz (PtMP)
  • Protocol: 802.11AC
  • Polarization: Dual linear
  • Gain: 27dBi
  • ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
  • Operating Temperature -40 to 70° C (-40 to 158° F)
  • Operating Humidity 5 to 95% Non-Condensing
  • Power Supply 24V, 0.5A Gigabit PoE
  • Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)• Max. Power Consumption 8.5W

Product Includes:


(1) Dish reflector (500mm)

(1) Radome

(1) Antenna feed

(1) Rear housing

(1) Dish bracket

(1) Pole clamp

(1) U-Bolt

(2) M8 flange nuts

(1) Gigabit PoE Adapter (24V, 0.5A)

(1) Power Cord

(1) Quick Start Guide


Product Documentation:


PBE-5AC-500 Datasheet

PBE-5AC-500 Quick Start Guide
