Ubiquiti airMAX NanoStation AC Loco 5GHz Radio 5-Pack US [LOCO5AC-5-US]

LOCO5AC-5-US by Ubiquiti Networks
Original price $240.00
Original price $240.00 - Original price $240.00
Original price $240.00
Current price $215.95
$215.95 - $215.95
Current price $215.95

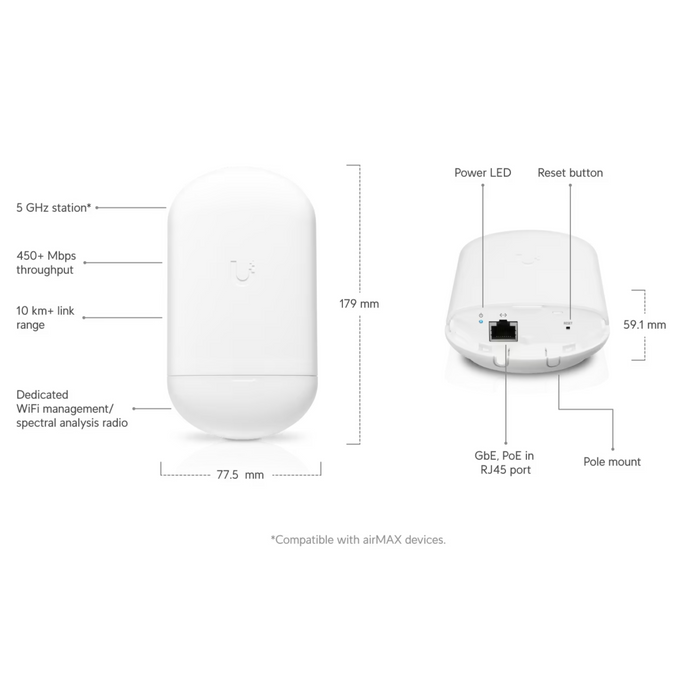

Classic Ubiquiti NanoStation design with updated proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UNMS mobile app support and fast setup. Excellent solution for a simple PtP bridge or use as a PtMP station (CPE).

Ubiquiti Networks set the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the NanoStation M. The Ubiquiti NanoStation AC loco takes the same concept to the future with a sleek form factor, along with integrated airMAX (MIMO TDMA protocol) technology and dedicated Wi-Fi management. The radio and antenna are combined to create a more efficient and compact CPE. The Ubiquiti NanoStation AC loco get maximum gain out of the smallest footprint. The low cost, high performance, and small form factor of the Ubiquiti NanoStation AC loco makes it extremely versatile and economical to deploy.

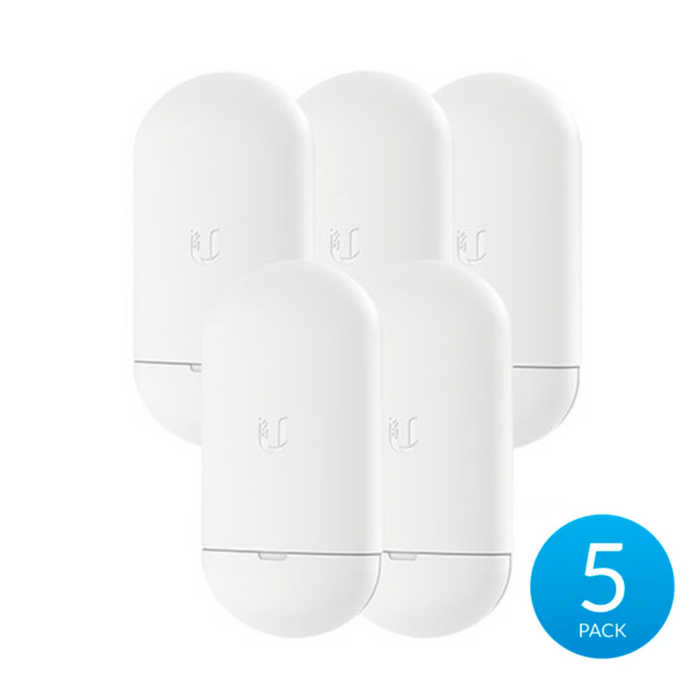

This is a bundle containing 5 Ubiquiti NanoStation AC Loco Radios\

Product Features:

  • New antenna
  • Improved design
  • Management WiFi Radio/ UNMS mobile app
  • AirOS 8
  • Versatile Mounting- Suitable for indoor and outdoor installations
  • Improved Surge Protection- Utilizes the latest ESD Protection to help protect against power surges
  • Efficient Footprint- The radio and antenna are combined in a single body that takes up minimal space
  • Quick Installation- No fasteners are required for pole-mounting
Product Specifications:
  • Processor: MIPS 74K
  • Memory: DDR2 64 MB
  • Cross-pol Isolation: 20 dB Minimum
  • Antenna Gain: 13 dBi
  • Networking Interface: (1) 10/100/1000 Ethernet Port
  • Channel Bandwidths: 10/20/30/40/50/60/80 MHz
  • Processor Specs: Atheros MIPS 74Kc, 560 MHz
  • Max. VSWR: 1.8:1
  • Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
  • Polarization: Dual-Linear
  • Power Method: 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return), 24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
  • Power Supply: 24V, 0.3A Gigabit PoE Supply (Not Included: POE-24-12W-G Recommended)
  • Max. Power Consumption: 7W
  • Enclosure: Outdoor UV-Stabilized Plastic
  • LEDs: (1) Power
  • Mounting: Pole-mount (Kit Included)
  • Supported Voltage Range: 24V±10%
  • ESD/ EMP Protection: ±24kV Contact/ Air
  • Operating Temperature: -40 to 70°C (-40 to 158°F)
  • Operating Humidity: 5 to 95% Non-Condensing
  • RoHS Compliance: Yes
  • Shock & Vibration: ETSI300-019-1.4
  • Certifications: CE, FCC, IC
Product Includes:
  • (5) Ubiquiti NanoStation ac loco
  • (5) Zip Tie
  • (1) Quick Start Guide
