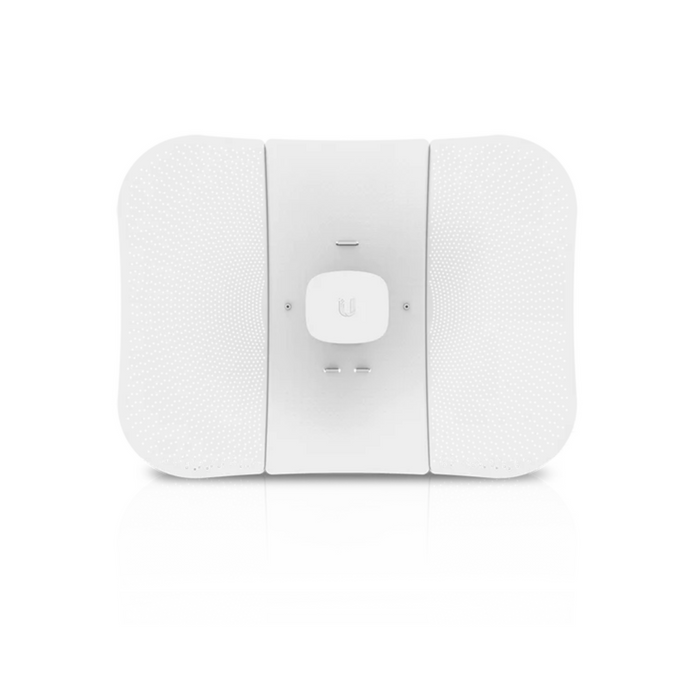

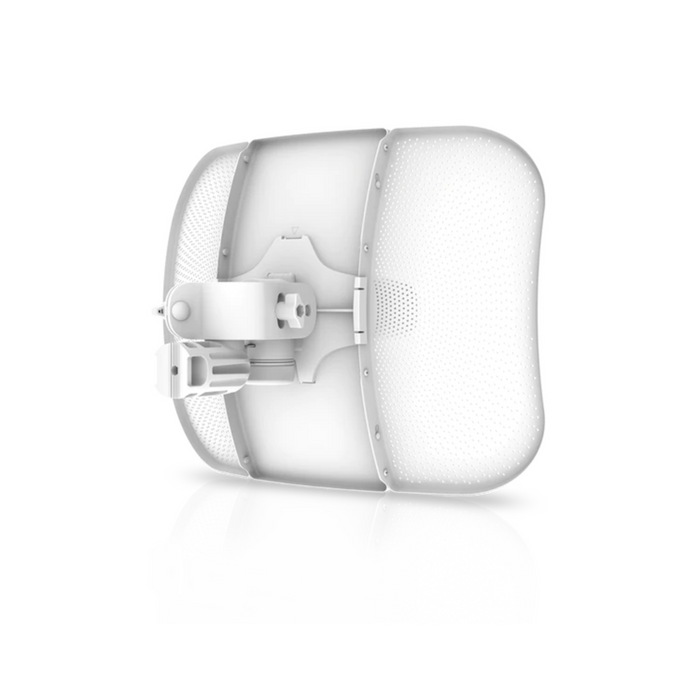

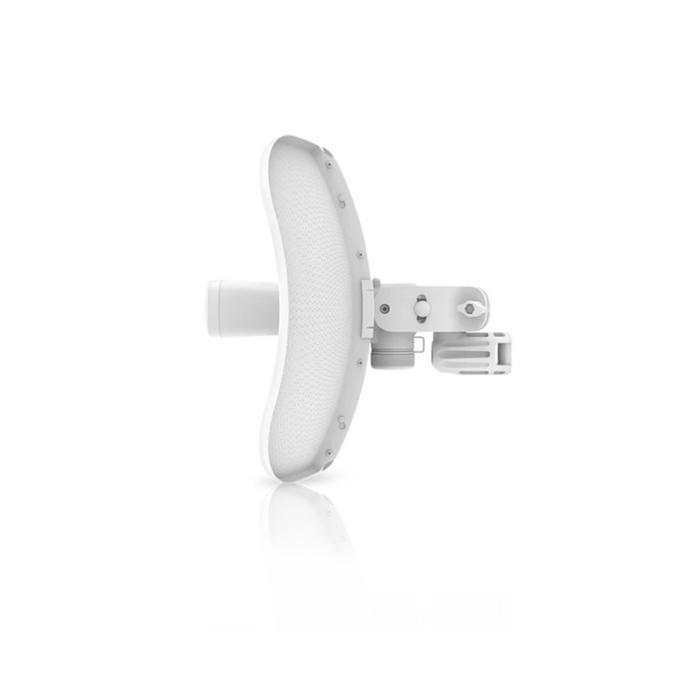

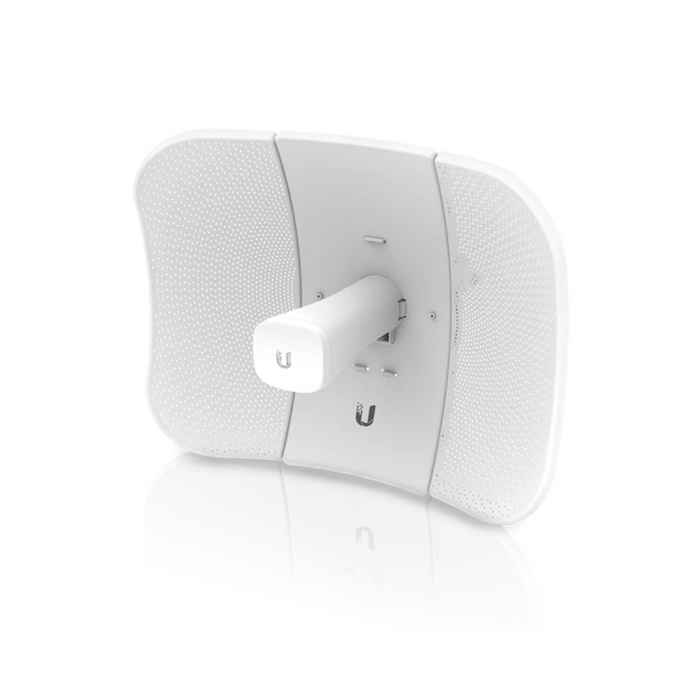

Ubiquiti airMAX LiteBeam Gen 2 5AC 5GHz 23dBi CPE US

LBE-5AC-Gen2 US by Ubiquiti Networks
Original price $65.00 - Original price $65.00
Original price
$65.00
$65.00 - $65.00
Current price $65.00

This product is a US version, intended for use in the US and Canada. This US version contains the following frequencies 5150-5250 MHz*, 5250-5350 MHz*, 5470-5725 MHz*, 5725-5850MHz.

The Ubiquiti Networks LBE-5AC-Gen2 is a 802.11ac LiteBeam CPE. It uses 5GHz frequencies with a 23dBi, and utilizes the new UMobile app for easy setup and installation. LiteBeam 5AC features a two-mount system that provides adjustment flexibility along both axes for versatile mounting options. The mounting system, couples with the built-in bubble level, enables quick and easy alignment.

Product Specifications:

  • Dimensions: 358 x 271.95 x 272.5mm (14.09 x 10.71 x 10.73")
  • Weight: Without Mount: 800g (1.76lbs), With Mount: 980g (2.16lbs)
  • Power Supply: 24V, 0.3A Gigabit PoE Adapter (included)
  • Max. Power Consumption: 7W
  • Power Method: Passive PoE (Pairs 4,5+;7,8 Return)
  • Supported Voltage Range: 24V±10%
  • Operating Frequency: 2412 - 2462MHz, USA U-NII-1: 5150 - 5250MHz, USA U-NII-2A: 5250 - 5350MHz, USA U-NII-2C: 5470 - 5725MHz, USA U-NII-3: 5725 - 5850MHz
  • Gain: 23dBi
  • Networking Interface: (1) 10/100/1000 Ethernet Port
  • Processor Specs: MIPS 74Kc
  • Memory: 64 MB DDR2
  • LEDs: Power, Ethernet
  • Channel Sizes: PtP Mode: 10/20/30/40/50/60/80MHz, PtMP Mode: 10/20/30/40MHz
  • Enclosure Characteristics: Reflector (SGCC 0.6T) / Plastic: PC
  • Mounting: Pole-Mounting Kit (Included)
  • Wind Loading: 275N @ 200km/h (61.8lbf @ 125mph)
  • Wind Survivability: 200km/h (125mph)
  • ESD/EMP Protection: ±24kV Contact / Air
  • Operating Temperature: -40 to 70°C (-40 to 158°F)
  • Operating Humidity: 5 to 95% non-condensing
  • Certifications: CE, FCC, IC
Product Includes:
(1) Antenna Feed
(1) Central Reflector Panel
(2) Side Reflector Panels
(1) Feed Receiver
(1) Azimuth Mount
(1) Elevation Mount
(1) Metal Strap
(1) Knob Kit
(1) Gigabit PoE (24V, 0.3A) with mounting bracket
(1) Power Cord
(1) Quick Start Guide
