Ubiquiti airMAX LiteBeam 5AC Extreme-Range US [LBE-5AC-XR-US]

Ubiquiti airMAX LiteBeam 5AC Extreme-Range US [LBE-5AC-XR-US]

LBE-5AC-XR-US by Ubiquiti Networks
Ubiquiti Networks LBE-5AC-XR-US Datasheet
$179.00 - $179.00
$179.00
$179.00
$179.00 - $179.00
$179.00
The airMAX® LiteBeam® AC 5 GHz XR [LBE-5AC-XR-US] is an outdoor, wireless station designed to establish high-speed connections over extremely long distances, allowing you to serve more subscribers with just a single device. The LBE 5AC XR also features a proprietary, high-gain antenna capable of delivering 450+ Mbps throughput over the 5 GHz frequency range.

Highlights:
  • 5 GHz, 30+ km link range
  • 450+ Mbps throughput
  • Easy to assemble
Product Features:
  • Proprietary airMAX ac chipset
  • Ultra-lightweight aluminum alloy and UV-stabilized polycarbonate
  • High-gain antenna with InnerFeed® technology
  • Establishes high-speed, extremely-long-distance links
  • Integrated GPS
  • Dedicated management radio for quick device setup via the UISP® Mobile app

    Product Specifications:

    Mechanical

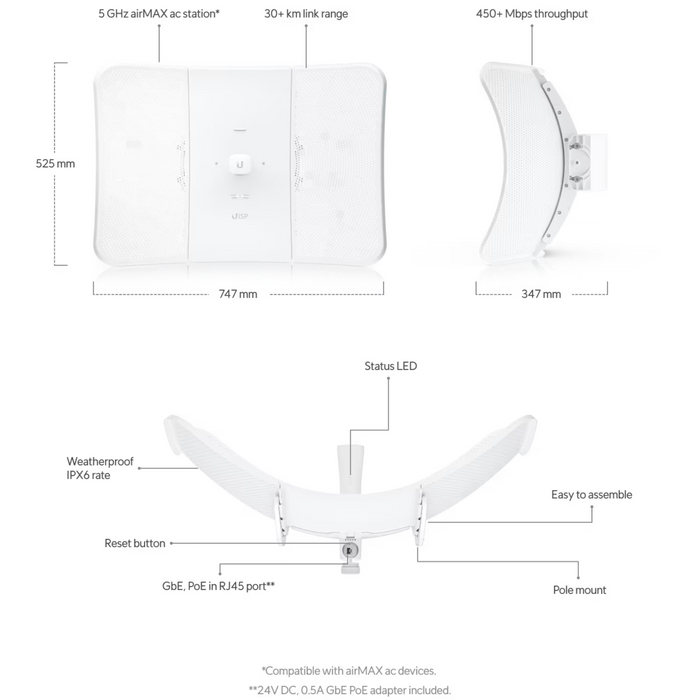

    • Dimensions: 747 x 525 x 347 mm (29.41 x 20.67 x 13.66")
    • Weight: 3.2 kg (7.06 lb)
    • Enclosure materials: Aluminum alloy, UV stabilized polycarbonate
    • Mount material: UV stabilized polycarbonate
    • Mounting:
      • Integrated pole mount (included)
      • Pole compatibility: Ø35 to 60 mm (Ø1.38 to 2.36")
    • Wind loading: 1100 N at 200 km/h (247.29 lbf at 125 mph)
    • Weatherproofing: IPX6

    Hardware

    • Networking interface: (1) GbE RJ45 port
    • Power method: Passive PoE 2-pair (4, 5+; 7, 8-)
    • Power supply: 24V DC, 0.5A Gigabit PoE adapter (included)
    • Supported voltage range: 22—26V DC
    • Max. power consumption: 7W
    • RF connections: Internal
    • LEDs: Power/ethernet
    • Button: Factory reset
    • Operating temperature: -40 to 70° C (-40 to 158° F)
    • Operating humidity: 5 to 95% non-condensing
    • Certifications: FCC, IC, CE

    System

    • Maximum throughput: 450+ Mbps
    • Encryption: WPA2-PSK (AES)

    Software

    • OS: airOS®
    • Modes: PtMP, PtP
    • Services: SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
    • Utilities: airView®, speed test, alignment, discovery, ping, traceroute, constellation
    • Management interface: Dedicated management radio for quick device setup via the UISP™ Mobile app
    • WEB UI
    • Minimum software requirements: Modern Web browser or Android/iOS smartphone

    RF

    • Operating frequency*: 5.15 to 5.85 GHz (* Depends on regulatory region.)
    • Max. conducted TX power: 25 dBm
    • Management radio: 2400 - 2483.5 MHz
    • Channel bandwidth: 10/20/30/40/50/60/80 MHz
    • Antenna Gain: 29 dBi
    • Isolation: 20 dB
    • Beamwidth:
      • HPOL: 3 dB: 5.5°, 6 dB: 7.5°
      • VPOL: 3 dB: 5.5°, 6 dB: 7.5°
      • Elevation: 3 dB: 5.5°, 6 dB: 7.5°
    • Electrical downtilt: 0°
