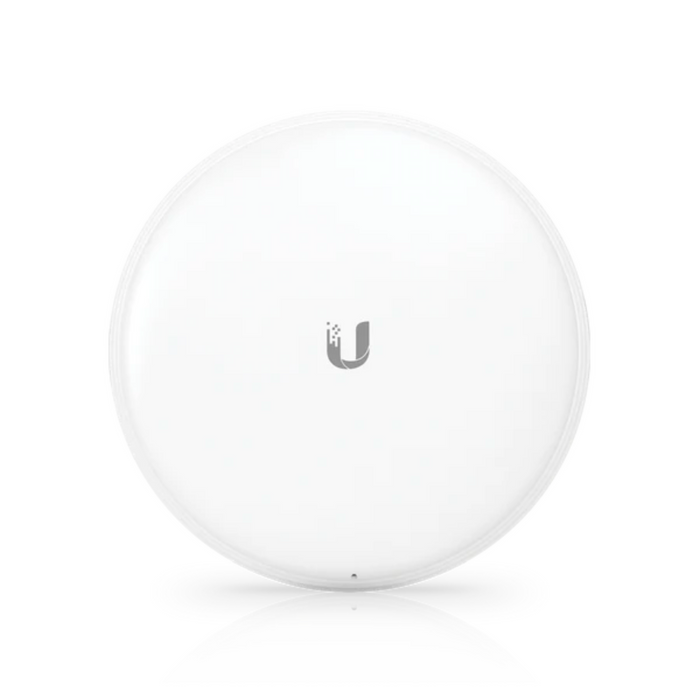

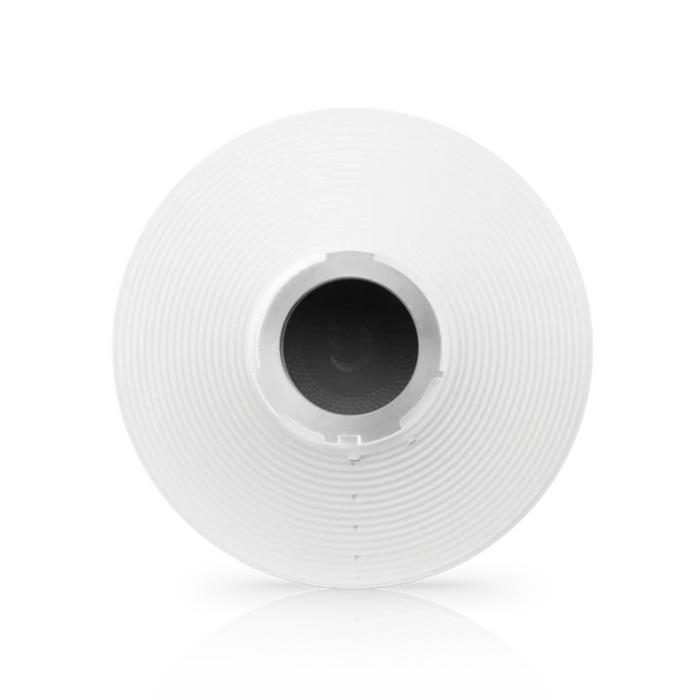

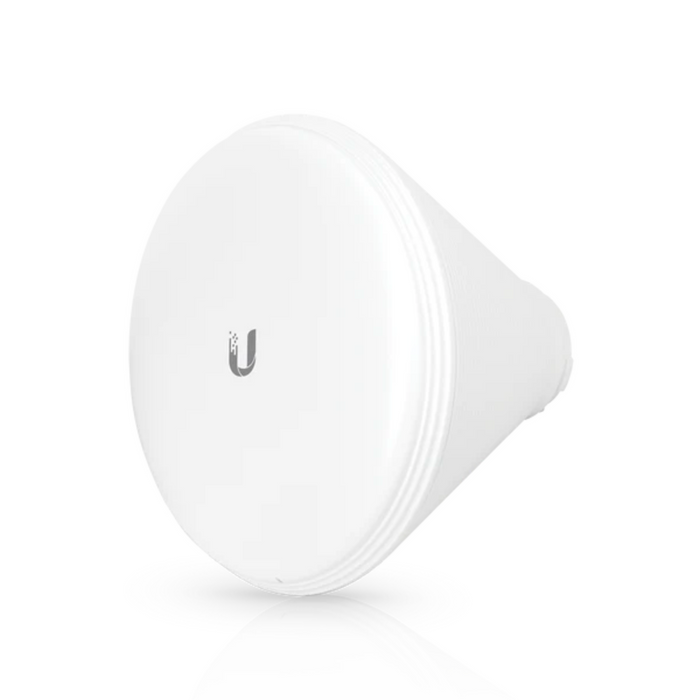

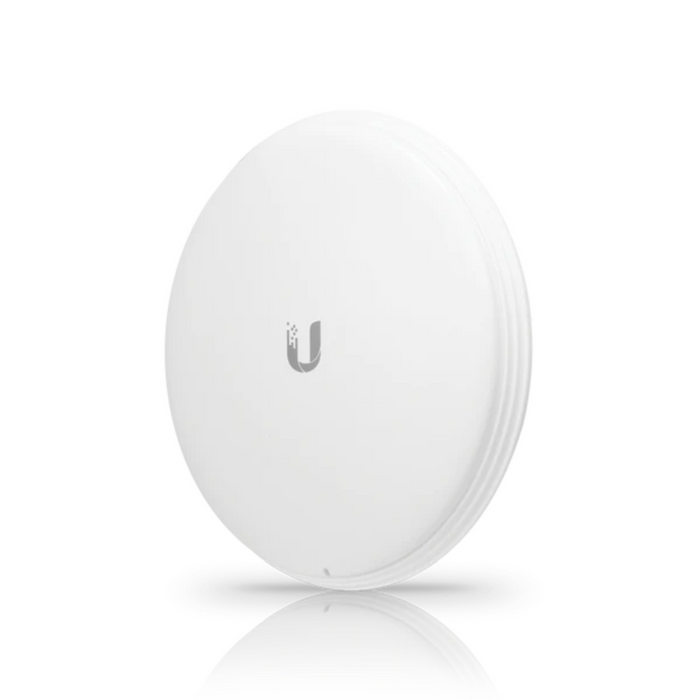

Ubiquiti airMAX Horn5 5GHz 45deg Horn Antenna

Horn-5-45 by Ubiquiti Networks
Original price $94.95 - Original price $94.95
Original price
$94.95
$94.95 - $94.95
Current price $94.95

This product is a US version, intended for use in the US and Canada. This US version contains the following frequencies 5.15 to 5.85GHz.


The Ubiquiti Networks Horn-5-45 is a 45° 5GHz Horn Antenna designed to be used with PrismStation or IsoStation radios. It is easily attached, with a locking mechanism instead of using connectors.


Product Features:

  • Asymmetrical horn antennas designed for increased co-location performance
  • 45° beamwidth
  • Single button release for ease of changing antennas
  • Newly designed horn for improved beam shaping
Product Specifications:
  • Dimensions: 175 x 175 x 184mm
  • Weight: 0.54kg
  • Operating Frequency: 5.15 to 5.85GHz
  • Gain: 15.5dBi
  • HPOL Beam Angle: 45°
  • VPOL: Beam Angle: 45°
  • Elevation Beamwidth: 45°
  • Electrical Downtilt: 0°
  • Polarization: Dual-linear
  • Cross-Pol Insulation: 17dB
  • Max. VSWR: 1.7:1
  • Wind Loading (w/ PrismStation): 56N @ 200km/h (12.59lbf @ 125mph)
  • Wind Survivability: 200km/h (125mph)
Product Documentation:


Horn-5-45 Datasheet
