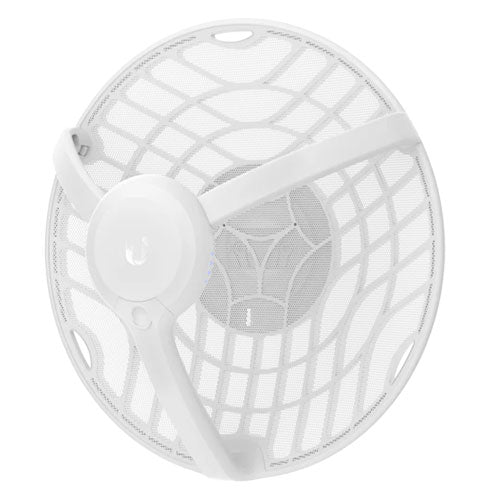

Ubiquiti airMAX GigaBeam Long Range 60GHz/ 5GHz Radio 1+Gbps Throughout

GBE-LR-US by Ubiquiti Networks
Original price $219.00 - Original price $219.00
Original price
$219.00
$219.00 - $219.00
Current price $219.00

Featuring a high-gain dish antenna, the Ubiquiti Networks GigaBeam LR is a 60 GHz radio designed for low-interference and high-throughput connectivity in long-range deployments. It includes a 5 GHz radio for failover. For the 60 GHz link, the GigaBeam LR supports full bandwidth use of 2.16 GHz. The dedicated management radio allows easy setup via Wi-Fi.


Product Features:

  • 60 GHz radio with 5 GHz radio backup
  • Low-interference 60 GHz spectrum
  • Up to 1+ Gbps with low latency
  • 2.4 GHz management radio
  • Full bandwidth support: 2.16 GHz
  • Enclosure: Aluminum, UV-Resistant Polycarbonate
  • Networking Interface: 10/100/1000 Ethernet Port, Wi-Fi for Management
  • Mounting:
  • Pole-Mount Kit (Kit Included)
  • Wall-Mount (Not Included)
Product Specifications:
  • Antenna Gain: 5 GHz: 11 dBi, 60 GHz: 38 dBi
  • Networking Interface: (1) 10/100/1000 Mbps Ethernet Port
  • Max. Power Consumption: 11W
  • Power Method: Passive PoE (Pairs 4, 5+; 7, 8-)
  • Power Supply: 24VDC, 0.5A Gigabit PoE (Included)
  • Voltage Range: +22 to +26VDC
  • LEDs: Power/ Ethernet/ 5G/ 60G
  • Wind Loading: 56 N @ 200 Km/H (12.6 lbf @ 125 MPH)
  • Wind Survivability: 200 Km/H (125 MPH)
  • Mounting: Pole-Mount (Included)
  • ESD/ EMP Protection: ± 24kV Contact/ Air
  • Operating Temperature: -40 to 60°C (-40 to 140°F)
  • Operating Humidity: 5 to 95% Non-condensing
  • Certifications: CE, FCC, IC
  • Max. Conducted TX Power: 5/ 60 GHz Combined: 25 dBm
  • Channel Bandwidth:60 GHz: 2160 MHz, 5 GHz: 20/ 40/ 80 MHz
  • Management Radio (MHz): US/CA: 2412-2462

Product Includes:


(1) Dish

(1) Main Arm

(2) Support Arms

(1) Mounting Bracket

(1) Screw

(1) U-Clamp

(2) Flat Washers

(2) Lock Washers

(2) Flange Nuts

(1) Gigabit PoE (24V, 0.5A) with Mounting Bracket

(1) Power Cord
