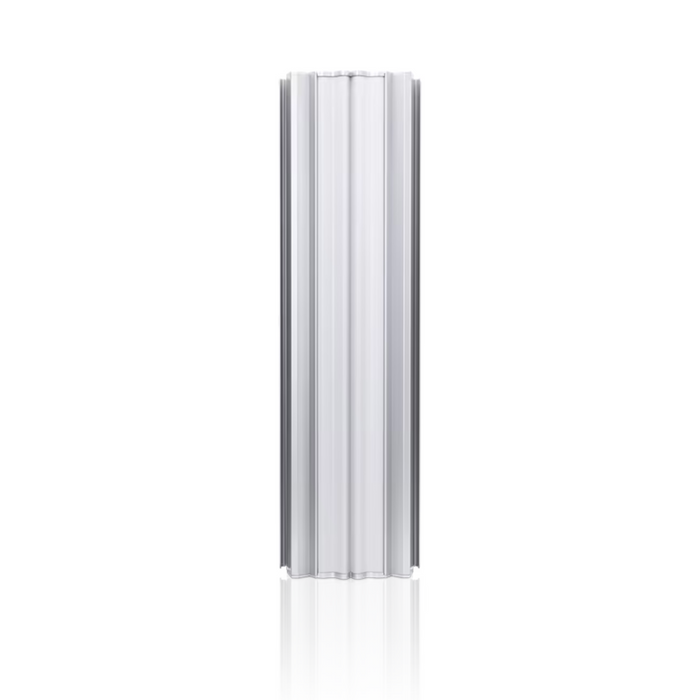

Ubiquiti airMAX 5GHz 22dBi 45deg 802.11AC Sector Antenna (2x2 MiMO)

AM-5AC22-45 by Ubiquiti Networks
Original price $205.95 - Original price $205.95
Original price
$205.95
$205.95 - $205.95
Current price $205.95

AM-5AC22-45 is a Ubiquiti Networks airMAX sector antenna designed to be used with Rocket 5AC radios. It operates on 5GHz frequency with 22dBi and 45deg; beamwidth.


The airMAX 802.11ac Sector Antenna is highly resistant to noise interference in co-location deployments and feature an innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area – potentially on the same tower.


With improved Signal-to-Noise Ratio (S/N or SNR), the airMAX 802.11ac Sector Antenna allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate).


Product Includes:

  • (1) Antenna
  • (1) Protective Shroud
  • (2) U-Brackets
  • (2) Pole Brackets
  • (2) Pole Clamps
  • (4) M8x135 Carriage Bolts
  • (4) M8x20 Serrated Flange Bolts
  • (8) M8 Serrated Flange Nuts
  • (2) Weatherproof RF Cables
  • (1) Quick Start Guide
Product Specifications:
  • Dimensions: 750 x 215 x 94mm (29.53 x 8.47 x 3.70")
  • Weight: 6kg (13.23lbs)
  • Frequency Range: 5.10 - 5.85GHz
  • Gain: 22dBi
  • HPOL Beamwidth: 45° (6dBi)
  • VPOL Beamwidth: 45° (6dBi)
  • Electrical Beamwidth: 4°
  • Electrical Downtilt: 2°
  • Max. VSWR: 1.5:1
  • Wind Survivability: 200km/h (125mph)
  • Wind Loading: 347N @ 200km/h (78lbf @ 125mph)
  • Polarization: Dual-Linear
  • Cross-Polarization Isolation: 30dB Min.
  • ETSI Specification: EN 302 326 DN2
  • Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included
Product Documentation:


AM-5AC22-45 Datasheet

AM-5AC22-45 Quick Start Guide
