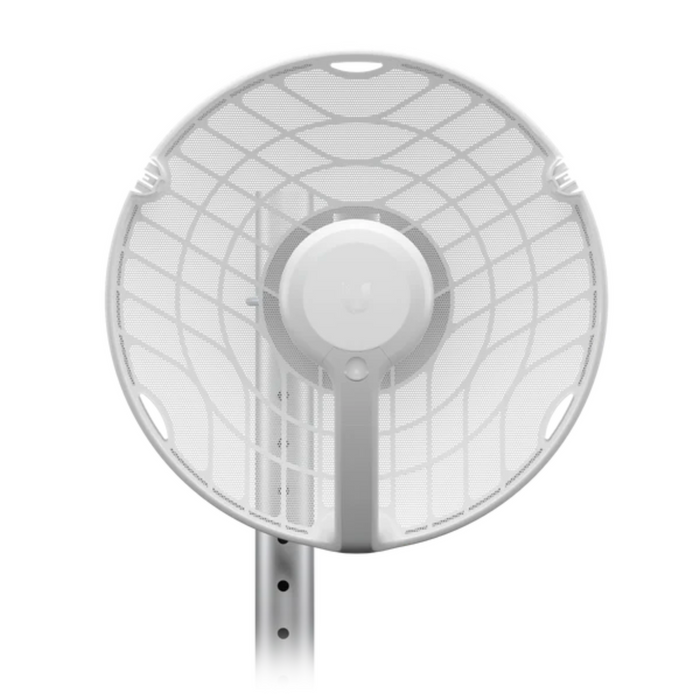

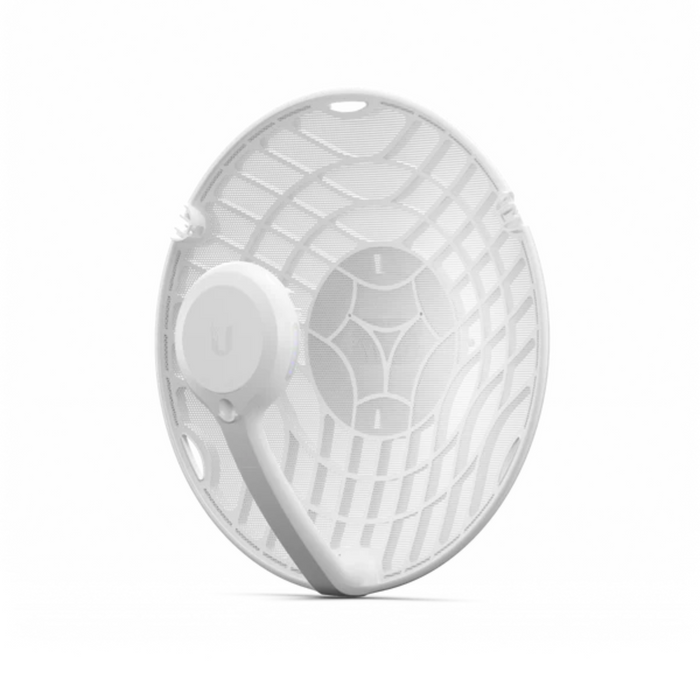

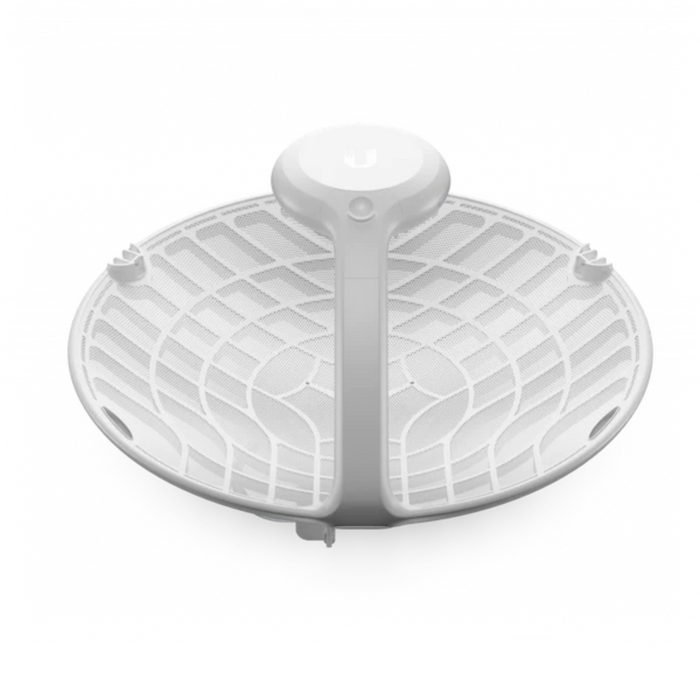

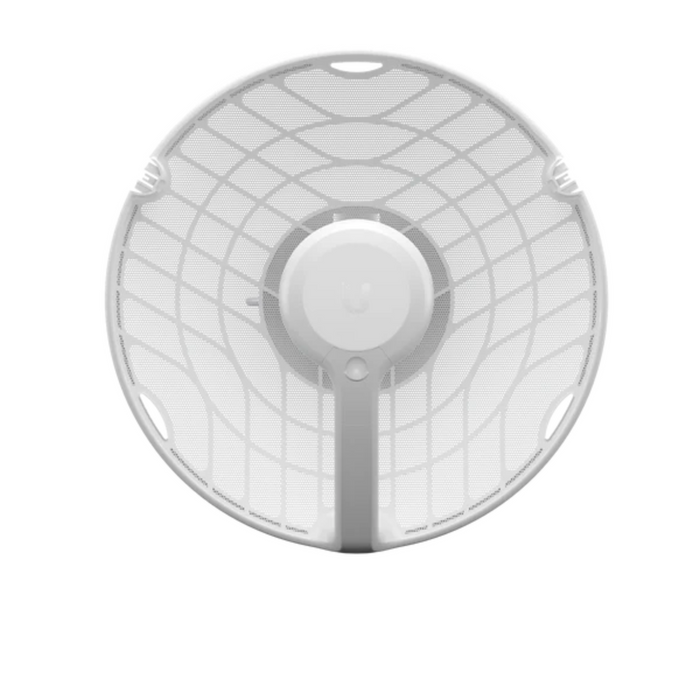

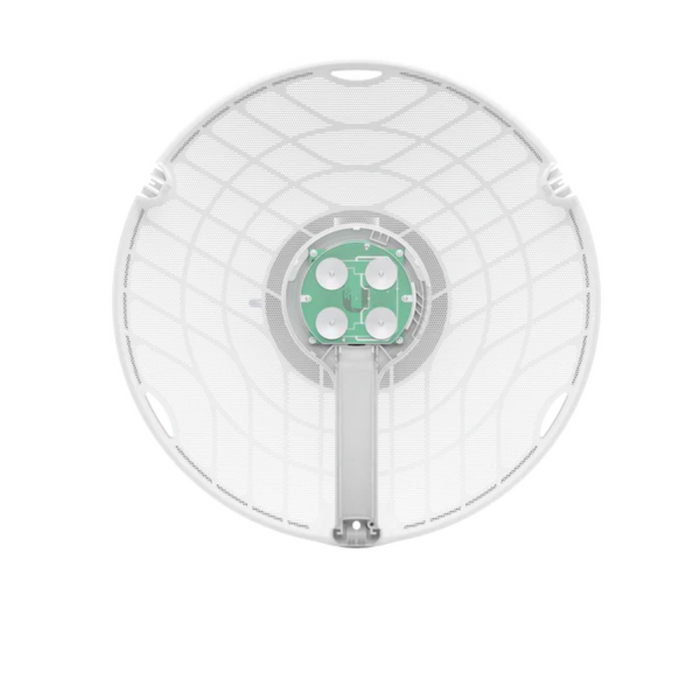

Ubiquiti airFiber 60GHz/5GHz Radio System with 1+Gbps Throughput

AF60-US by Ubiquiti Networks
Original price $299.00 - Original price $299.00
Original price
$299.00
$299.00 - $299.00
Current price $299.00

AF60 is a 60 GHz radio for low-interference and high-throughput connectivity. It's integrated with a high-gain dish antenna for long range and high performance. For the 60 GHz link, the AF60 supports two channel width options: 2 GHz and 1 GHz – automatically switching between both options depending on link performance.


Product Features:

  • 60 GHz radio with 5 GHz radio backup
  • Low-interference 60 Ghz spectrum
  • Long range, up to 2 km
  • Up to 1 Gbps with low latency
  • Integrated GPS
  • Full and half bandwidth support
  • Enclosure: Aluminum, UV-stabilized polycarbonate
Product Specifications:

  • Antenna Gain: 5 GHz: 11 dBi, 60 GHz: 38 dBi
  • Networking Interface: (1) 10/100/1000 Mbps Ethernet Port
  • Max. Power Consumption: 11W
  • Power Method: Passive PoE, Pins 4, 5+ and 7, 8-
  • Power Supply: 24VDC, 0.5A Gigabit PoE Adapter (Included)
  • Voltage Range: +22 to +26VDC
  • LEDs: Power/Ethernet/5G/60G/GPS

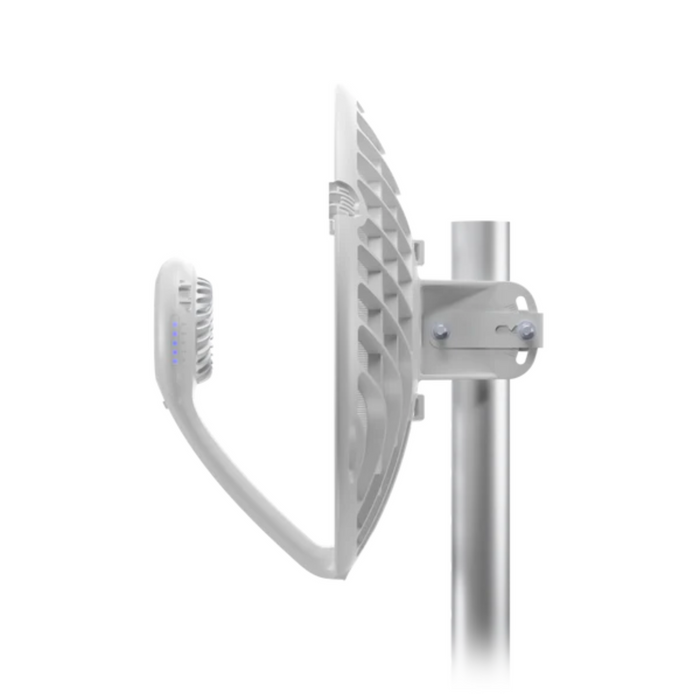

  • Mounting: Pole Mount (Included)
  • Wind Loading: 420 N @ 200 km/h, 94.4 lbd @ 125 mph
  • Wind Survivability: 200 km/h (125 mph)
  • ESD/ EMP Protection: ± 24kV Contact/Air
  • Operating Temperature: -40 to 60° C (-40 to 140° F)
  • Operating Humidity: 5 to 95% Non-condensing
  • Certifications: FCC, IC, CE

System:

  • Max Conducted TX Power (5/60 GHz Combined): 25 dBm
  • Channel Bandwidth: 60 GHz: 2160 MHz, 5 GHz: 20/ 40/ 80 MHz

Operating Frequency (MHz):


US/ CA: U-NII-1: 5150-5250, U-NII-2A: 5250-5350, U-NII-2C: 5470-5725, U-NII-3: 5725-5850, 57,000-67,000

Worldwide: 5180-5875, 57,000-66,000


Management Radio (MHz):

  • Worldwide: 2412-2472
  • US/CA: 2412-2462

Product Includes:


(1) Dish

(1) Main Arm

(2) Stabilizer Arms

(1) Mounting Bracket

(1) Screw

(1) U-Clamp

(2) Flat Washers

(2) Lock Washers

(2) Flange Nuts

(1) Gigabit 24V0.5A PoE with Mounting Bracket

(1) Power Cord
