Ubiquiti EdgePower Module 54V-150W DC [EP-54V-150W-DC]

EP-54V-150W-DC by Ubiquiti
Original price $79.00
Original price $79.00 - Original price $79.00
Original price $79.00
Current price $72.95
$72.95 - $72.95
Current price $72.95

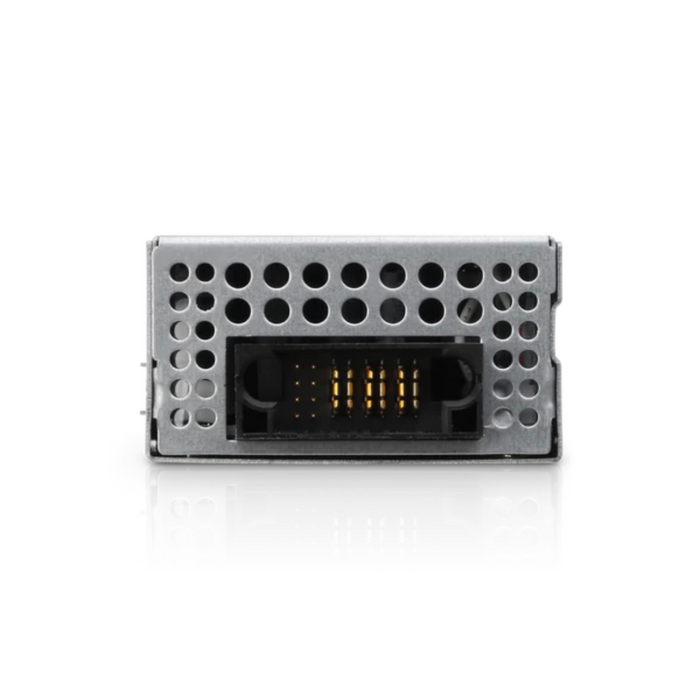

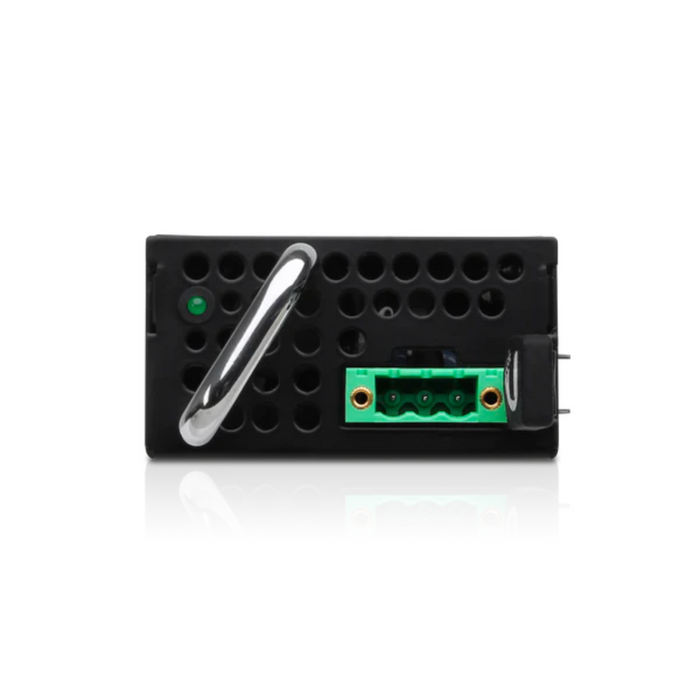

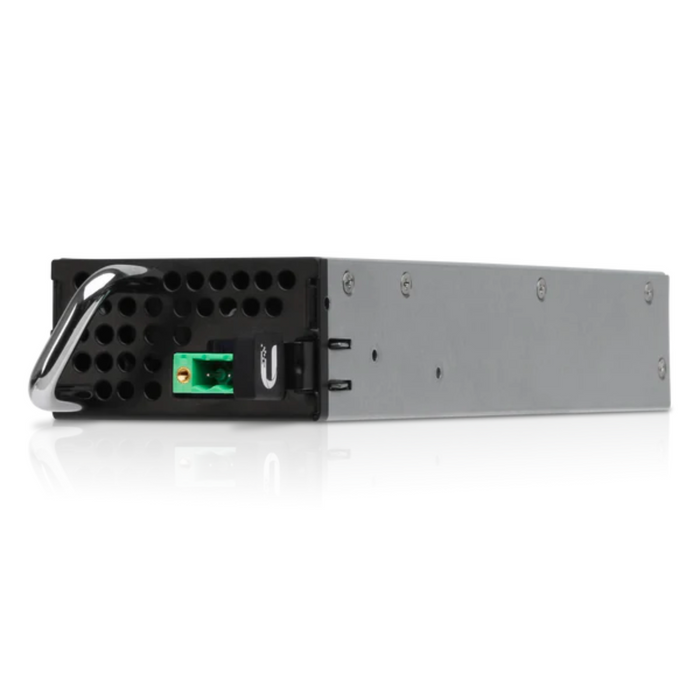

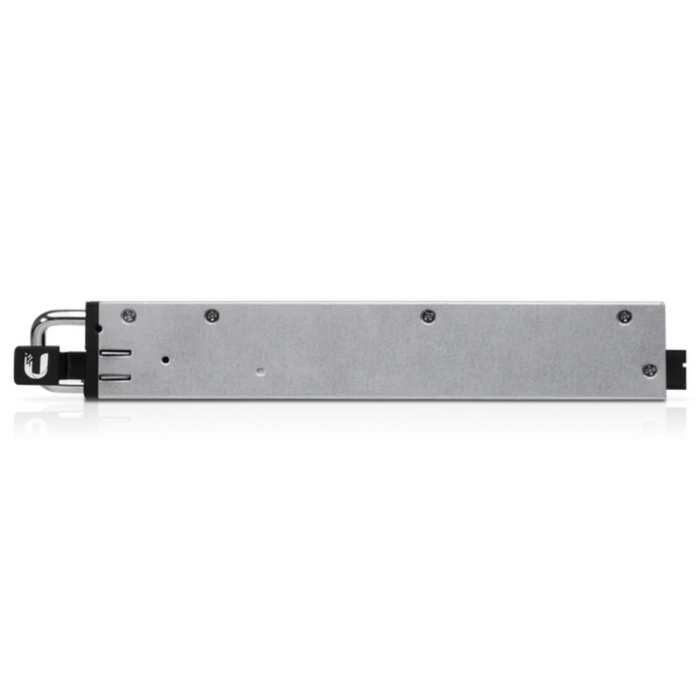

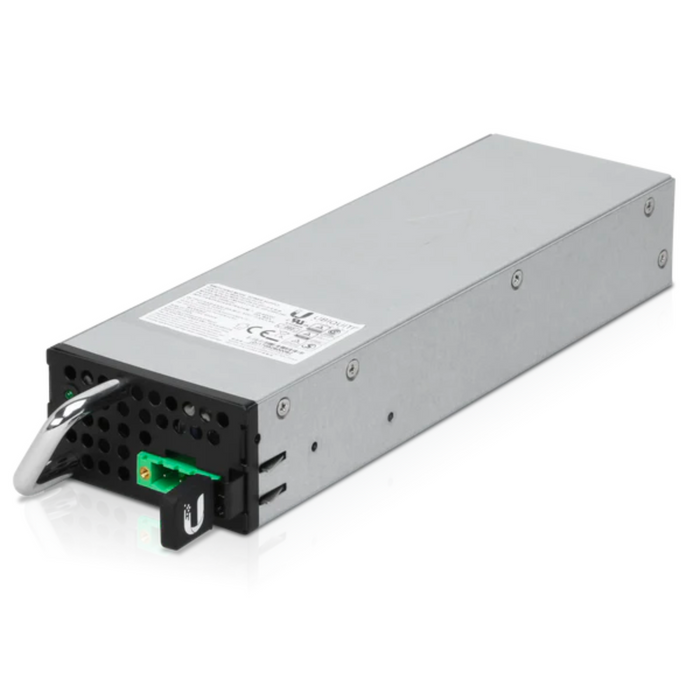

The EP-54V-150W-DC is a DC to DC PSU module designed for use with the EdgePower EP-54V-150W.

It can be used as a primary or auxiliary DC PSU to deliver 150W of power output, or used as a backup to the primary PSU.

Features:

  • Modular DC to DC Power Supply Unit
  • 54V, 150W Maximum Power Output
  • Compatible with EdgePower EP-54V-150W
  • 150W Primary or Backup DC PSU, or
  • Increase Total Power Output up to 300W
  • Smart charging and discharging protection for 2/3/4 series lead acid battery
Product Specifications:
  • Power Method: DC/DC 150W for 22-60V Inputl, DC Terminal Block for 54V Output
  • Power Supply: DC/DC 150W for 22-60V Input
  • Supported Voltage Rang: DC/DC for 22-60V Input, 54V Output
  • Battery Type: 2/3/4 Series Lead Acid Battery
  • Maximum Charging Voltage:
  • 2 Series: 26.8 - 27.5V
  • 3 Series: 40.2 - 41.2V
  • 4 Series: 53.6 - 55V
  • Discharge Protection Voltage:
  • 2 Series: 21.5V
  • 3 Series: 32V
  • 4 Series: 43V
  • Charging Current:
  • 2 Series: 0.3A
  • 3 Series: 0.3A
  • 4 Series: 0.2A
  • LED: System On/Off
  • Operating Temperature: 0 to 40°C (32 to 104°F)
  • Operating Humidity: 10 to 90% RH
  • ESD/EMP Protection: Air ±8KV; Contact ±6KV
  • Certifications: CE, FCC, IC
