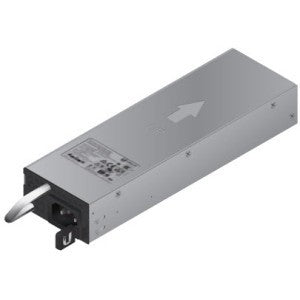

Ubiquiti 54V 150W AC Modular Power Supply for EdgePower [EP-54V-150W-AC]

Ubiquiti 54V 150W AC Modular Power Supply for EdgePower [EP-54V-150W-AC]

EP-54V-150W-AC by Ubiquiti Networks
Ubiquiti Networks EP-54V-150W-AC Datasheet
Save 8% Save 8%
$79.00
$79.00 - $79.00
$79.00
$72.95
$72.95 - $72.95
$72.95

The Ubiquiti EP-54V-150W-AC is an AC power supply unit designed to work as a backup, or concurrently with the EdgePower EP-54V-150W power supply product.


This power supply can be placed into the secondary PSU bay on the EP-54V-150W as an extra power supply. This EP-54V-150W-AC secondary PSU may be configured as a backup PSU. in backup mode, the secondary PSU remains inactive and offline. If failure of the primary PSU is detected, the secondary PSU automatically activates to supply continuous power.


Product Specifications:
  • Power Method: AC/DC 150W for 110-240VAC Inpt, DC Terminal Block for 54V Output
  • Power Supply: AC/DC 150W for 110-240VAC Input
  • Supported Voltage Range: AC/DC for 110-240VAC Input, 54V Output
  • LED: System On/Off
  • Operating Temperature: 0 to 40°C (32 to 104°F)
  • Operating Humidity: 10 to 90% RH
  • ESD/EMP Protection: Air ±8KV; Contact ±6KV
  • Certifications: CE, FCC, IC
