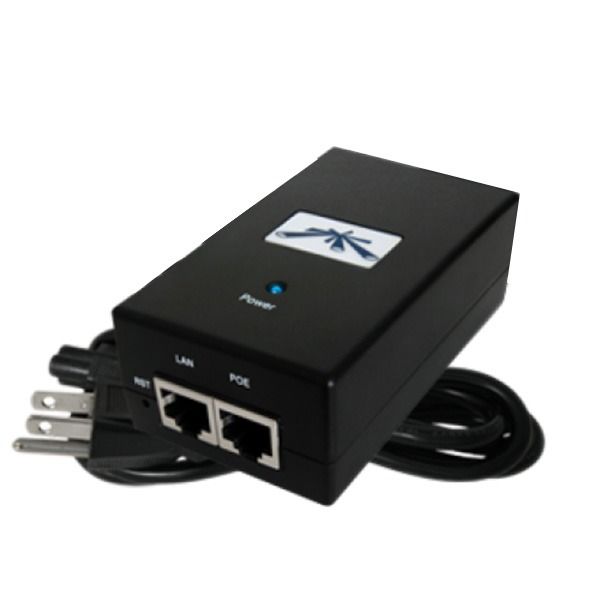

Ubiquiti 48V DC 0.5A 24W Gigabit Replacement PoE Adapter [POE-48-24W-G]

POE-48-24W-G by Ubiquiti Networks
Sold out
Original price $16.00
Original price $16.00 - Original price $16.00
Original price $16.00
Current price $13.95
$13.95 - $13.95
Current price $13.95

POE-48-24W is a Ubiquiti Networks Gigabit PoE Injector with a 48VDC 0.5A output voltage. It works great with Rocket M5 and UniFi access points, with ESD protection.


Product Specifications:
  • Dimensions: 92 x 60 x 33mm (3.62 x 2.36 x 1.30")
  • Weight: 158.5g (5.59oz)
  • Output Voltage: 48VDC @ 0.5A
  • Gigabit LAN Port: Yes
  • Input Voltage: 90-260VAC @ 47-63Hz
  • Input Current: 0.6A @ 120VAC, 0.4A @ 240VAC
  • Inrush Current: <65A Peak @ 120VAC, <130A Peak @ 230VAC
  • Efficiency: 80+%
  • Output Ripple: 1% Max.
  • Switching Frequency: 65kHz
  • Line Regulation: ±1%
  • Load Regulation: ±3%
  • 2-Pair Powering: Pins 4,5(+) and Pins 7,8(-)
  • Operating Temperature: 0 to 40°C (32 to 104°F)
  • Storage Temperature: -30 to 70°C (-22 to 158°F)
  • Operating Humidity: 35 to 95% non-condensing
  • AC Connector: IEC-320 C6
  • Data IN/PoE: RJ45 Shielded Socket
  • Surge Protection: Difference and Common Mode
  • Clamping Protection: 11V Data, 60V Power
  • Max. Surge Discharge: 1500A (8/20us) Power
  • Peak Pulse Current: 36A (10/1000us) Data
  • Shunt Capacitance: <5pF Data
  • Response Time: <1ns
