Ubiquiti 24V DC 1.0A 24W Gigabit Replacement PoE Adapter

Ubiquiti 24V DC 1.0A 24W Gigabit Replacement PoE Adapter

POE-24-24W-G by Ubiquiti Networks
Ubiquiti Networks POE-24-24W-G Datasheet Ubiquiti Networks POE-24-24W-G Datasheet
$16.00 - $16.00
$16.00
$16.00 - $16.00
$16.00

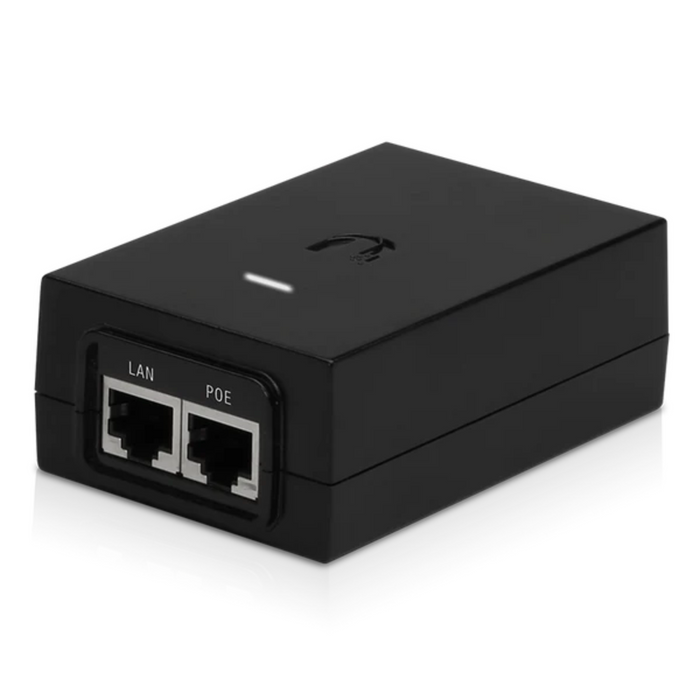

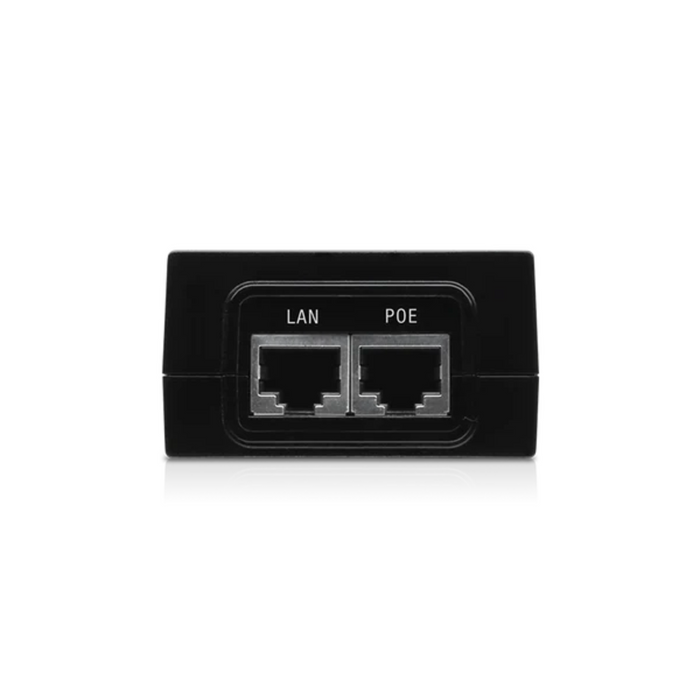

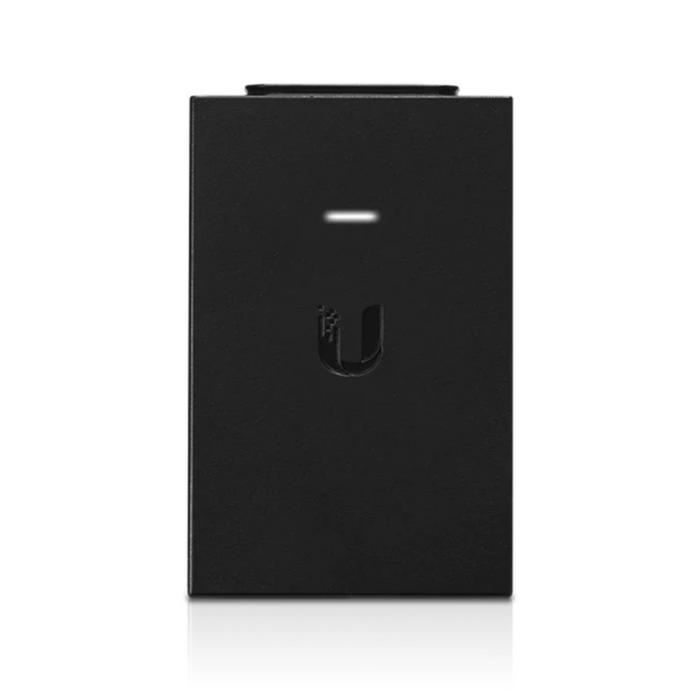

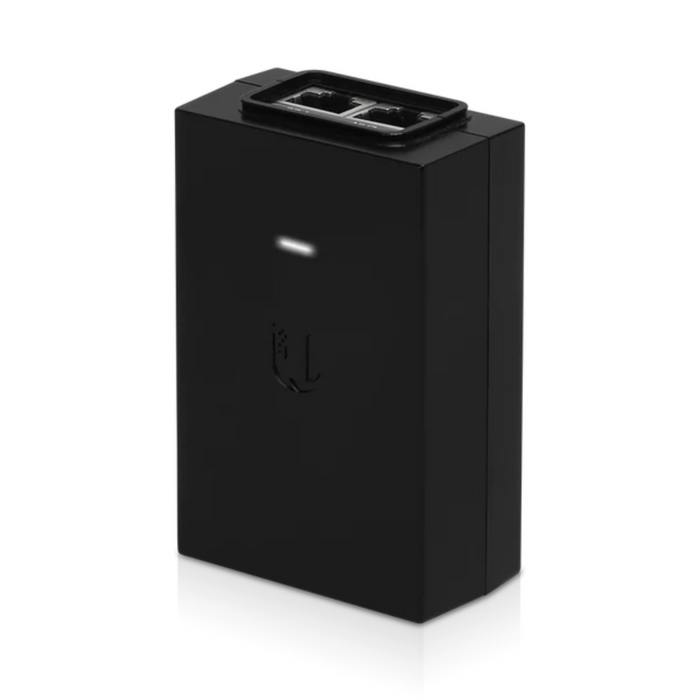

Ubiquiti Networks POE-24-24W-G is a Gigabit replacement PoE for use with Ubiquiti airFiber products. Its a 24VDC 1A, 24W model, and is designed to protect against any ESD events.


Product Features:


  • Surge protection
  • Clamping protection
  • Maximum surge discharge
  • Peak pulse current
  • AC cable with earth ground


    • Product Specifications:


  • Output voltage: 24VDC @ 1A
  • Input voltage: 90-260VAC @ 47-63Hz
  • Input current: 0.6A @ 120VAC, 0.4A @230VAC
  • Efficiency: 80+%
  • Output ripple: 1% Max
  • Switching frequency: 65kHz
  • Line regulation: +/- 1%
  • Load regulation: +/- 3%
  • Operating temperature: 32 to 104 deg F (0C to 40 deg C)
  • Storage temperature: -22 to 158 deg F(-30C to 70 deg C)
  • Operating humidity: 35% to 95% non condensing
  • Size: 3.47 x 2.24 x 1.3in (88 x 57 x 33mm)
  • Model: GP-H240-100G


    • Product Includes:


    (1) POE-24-24W-G PoE Injector

    (1) Power cord
