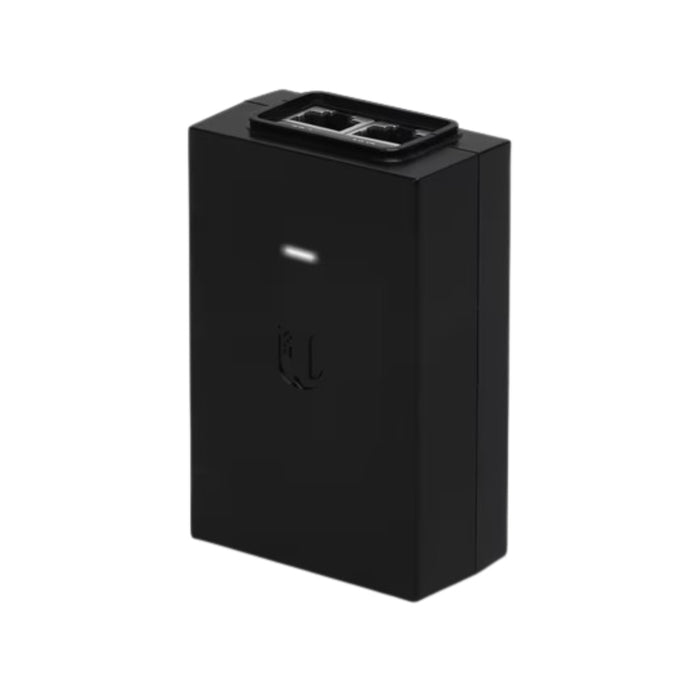

Ubiquiti 24V DC 0.5A 12W Replacement PoE Adapter

POE-24-12W by Ubiquiti Networks
Original price $14.95 - Original price $14.95
Original price
$14.95
$14.95 - $14.95
Current price $14.95

Ubiquiti Networks POE-24-12W is for use with airMAX and UniFi products. It's a replacement 24V, 12W PoE adapter, with remote hardware reset circuitry.


The POE-24 (24V, 12W) features earth grounding/ESD protection, power LED, and is available in USA (NEMA 5-15). Remote re-start capability is a key feature of the power injector.


Product Specifications:
  • Dimensions: 87 x 44 x 29mm (2.43 x 1.73 x 1.14")
  • Weight: 92g (3.25oz)
  • Remote Reset Capability: Yes
  • Reset Button Yes
  • Input Voltage: 90-260VAC @ 47064Hz
  • Input Current:
        0.3A @ 120VAC
        0.2A @ 240VAC
  • Inrush Current:
        <30A Peak @ 120VAC
        <60A Peak @ 230VAC
  • Efficiency: 75+%
  • Output Ripple: 1% Max.
  • Switching Frequency: 50kHz
  • Line Regulation: ±1%
  • Load Regulation: ±3%
  • 2-Pair Powering: Pins 4,5(+) and Pins 7,8(-)
  • Operating Temperature: 0 to 40°C (32 to 104°F)
  • Storage Temperature: -30 to 70°C (-22 to 158°F)
  • Operating Humidity: 35 to 95% non-condensing
  • AC Connector: IEC-320 C6
  • Data IN/PoE: RJ45 Shielded Socket
  • Surge Protection: Difference and Common Mode
  • Clamping Protection: 11V Data, 60V Power
  • Max. Surge Discharge: 1500A (8/20us) Power
  • Peak Pulse Current: 36A (10/1000us) Data
  • Shunt Capacitance: <5pF Data
  • Response Time: <1ns
Product Documentation:


POE-24-12W Datasheet
