Ubiquiti 24V AC 1A 24W Gigabit Replacement PoE Adapter for AF-5X

POE-24-AF5X by Ubiquiti Networks
Original price $15.95 - Original price $15.95
Original price
$15.95
$15.95 - $15.95
Current price $15.95

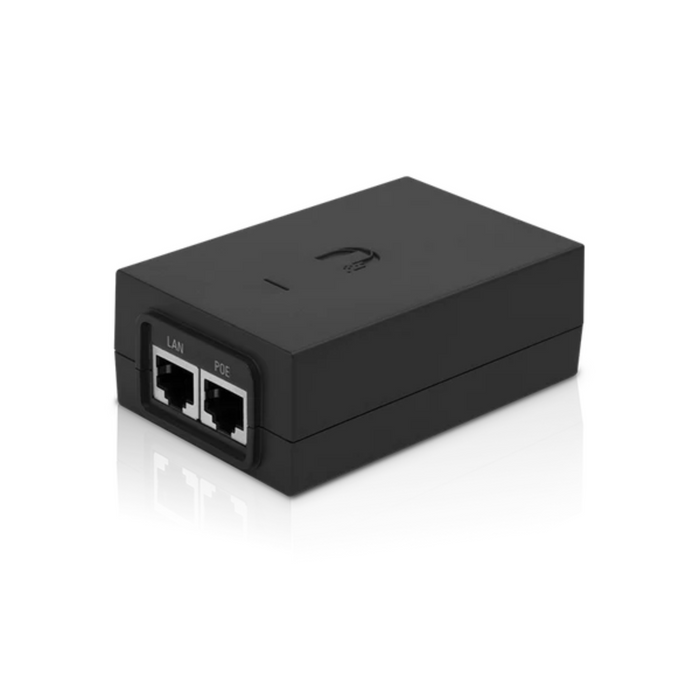

This Ubiquiti PoE Gigabit Injector is 24VDC, 24W and compatible with most Ubiquiti PoE devices including airFiber, airMAX, airVision, and UniFi. It includes surge protection, clamping protection, maximum surge discharge, and AC cable with earth ground.

Product Specifications:
  • Dimensions: 88 x 57 x 33mm (3.47 x 2.24 x 1.30")
  • Weight: 158.5g (5.59oz)
  • Output Voltage: 24VDC @ 1.0A
  • Gigabit LAN Port: Yes
  • Remote Reset Capability: Yes
  • Reset Button: Yes
  • Input Voltage: 90-260VAC @ 47-63Hz
  • Input Current: 0.6A @ 120VAC, 0.4A @ 240VAC
  • Inrush Current:
        <60A Peak @ 120VAC
        <120A Peak @ 230VAC
  • Efficiency: 80+%
  • Output Ripple: 1% Max.
  • Switching Frequency: 65kHz
  • Line Regulation: ±1%
  • Load Regulation: ±3%
  • 4-Pair Powering: Pins 1,2,4,5(+) and Pins 3,6,7,8(-)
  • Operating Temperature: 0 to 40°C (32 to 104°F)
  • Storage Temperature: -30 to 70°C (-22 to 158°F)
  • Operating Humidity: 35 to 95% non-condensing

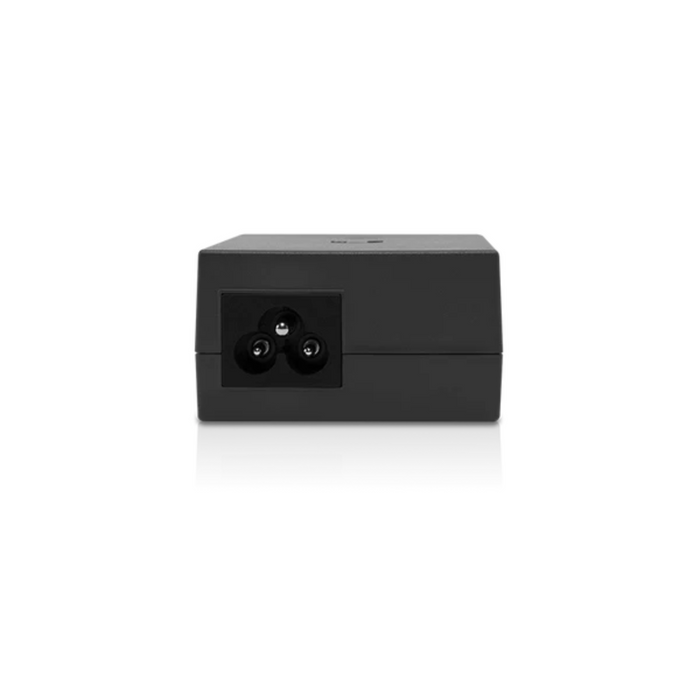

  • AC Connector: IEC-320 C6

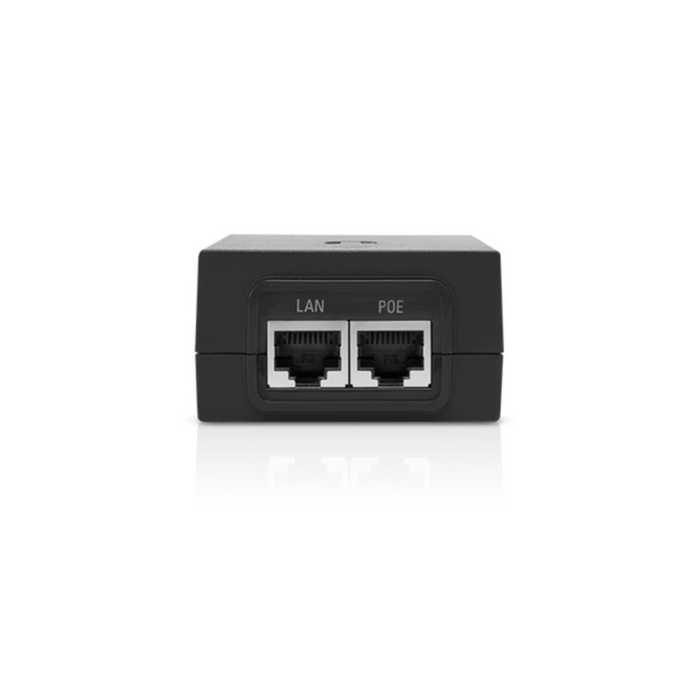

  • Data IN/PoE: RJ45 Shielded Socket
  • Surge Protection: Difference and Common Mode
  • Clamping Protection: 11V Data, 60V Power
  • Max. Surge Discharge: 1500A (8/20us) Power
  • Peak Pulse Current: 36A (10/100us) Data
  • Shunt Capacitance: <5pF Data
  • Response Time: <1ns
  • Compliance: IEC 60950-1:2005+A1 UL60950-1, EN55022:2010, EN55024:2010, FCC Class B
