Tycon Solar Weatherproof Steel Outdoor Enclosure - 24 x 24 x 16 [ENC-STL-24x24x16]

ENC-STL-24x24x16 by TYCON Systems
Sold out
Original price $649.95 - Original price $649.95
Original price $649.95
$649.95
$649.95 - $649.95
Current price $649.95

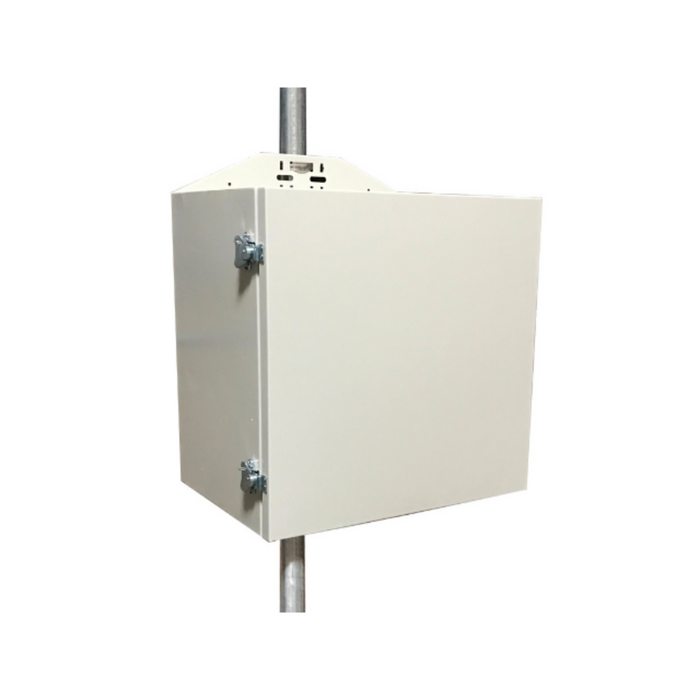

Tycon Solar ENC-ST-24x24x16 is an outdoor enclosures which is designed for applications that require a sturdy, weatherproof enclosure to house various electronics. They are made from UV resistant materials and gasket sealed for long service life. They are able to be both wall or pole mounted with the included U-Bolts. Heavy duty pole mounting can accommodate up to a 4" diameter pole. For larger poles, stainless steel straps are recommended.

The enclosure is designed to be passively ventilated and also includes a thermostatically controlled ventilation system that runs on 12VDC - 24VDC, and turns on when interior temperatures exceed 45°C.

Enclosure can be securely locked. Door closures are two stainless draw latches that can accommodate up to 9mm (0.35") diameter user supplied padlock.

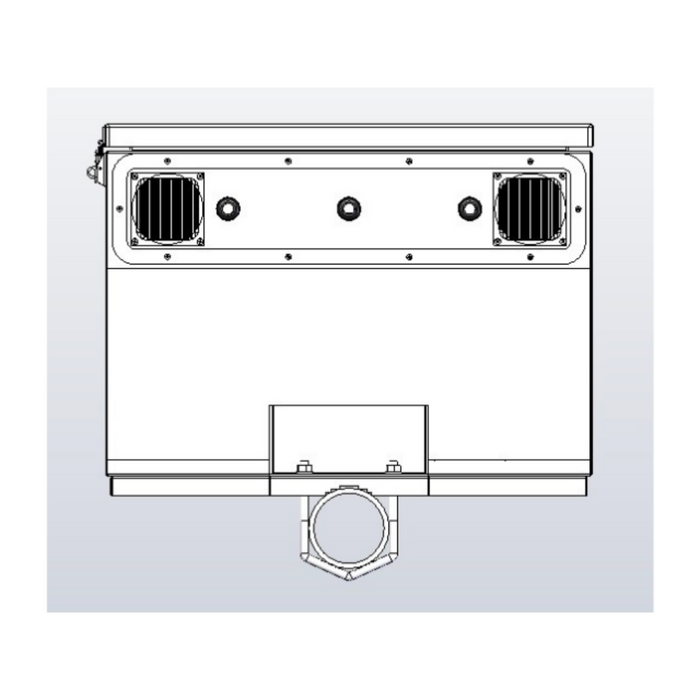

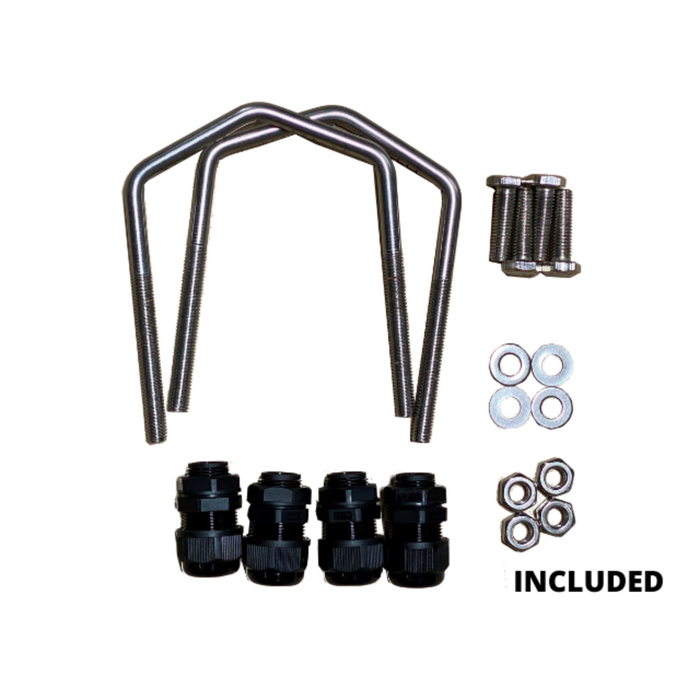

Comes with 3 RJ45 Feed thru cable glands for weatherproof cable entry/exit. The cable glands are mounted in the bottom of the enclosure on a removable gasketed access plate. Enclosure is corrosion resistant, material is powder coated steel, and all hardware is stainless steel.

Product Features
  • Weatherproof Nema 4X / IP65, UV resistant, outdoor enclosures
  • Ventilated, Gasket sealed and lockable using padlocks

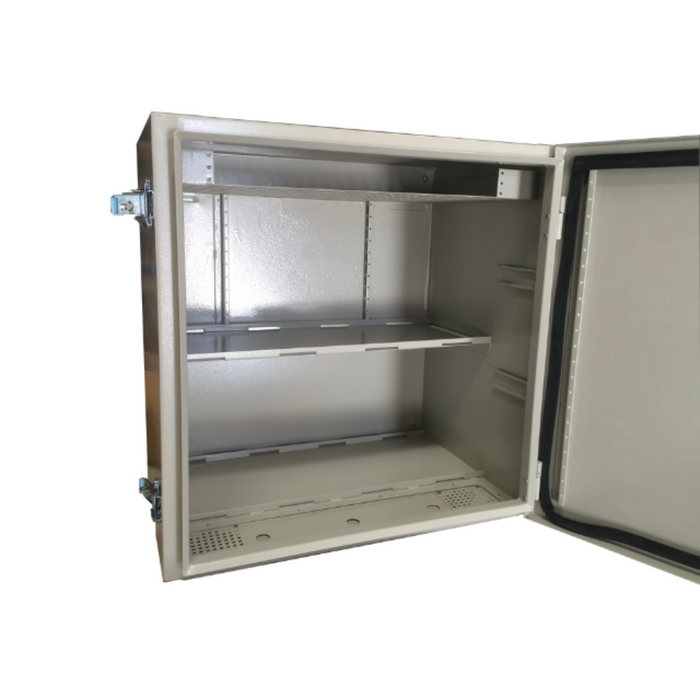

  • 1U 19" rackmount shelf

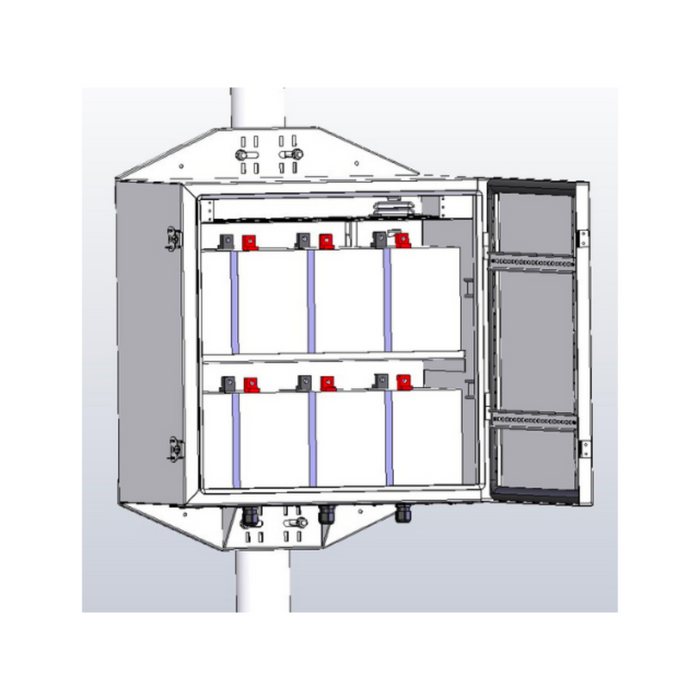

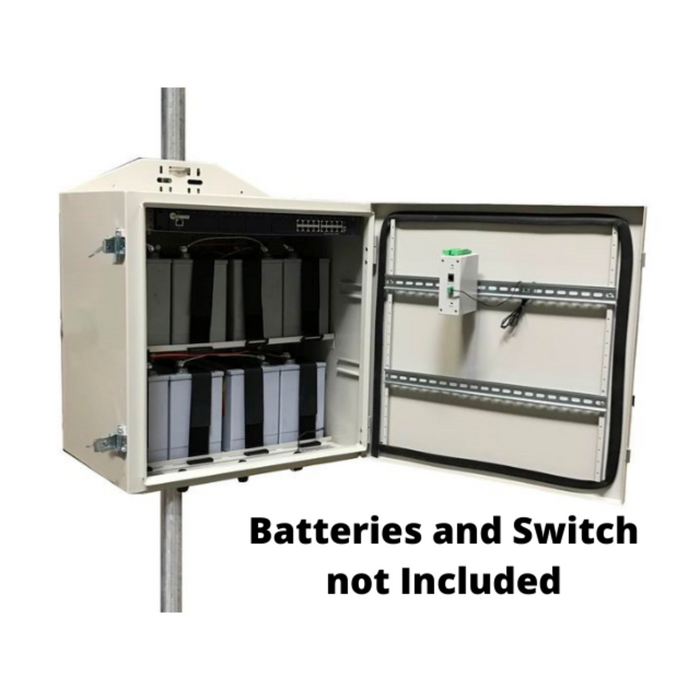

  • Two battery shelves, can hold up to 400Ah of battery
  • Built in mounting for DIN rails on inside door and back
  • Built in DIN rails on inside left and right sides
  • Weatherproof cable feedthroughs
  • Thermostatically controlled ventilation

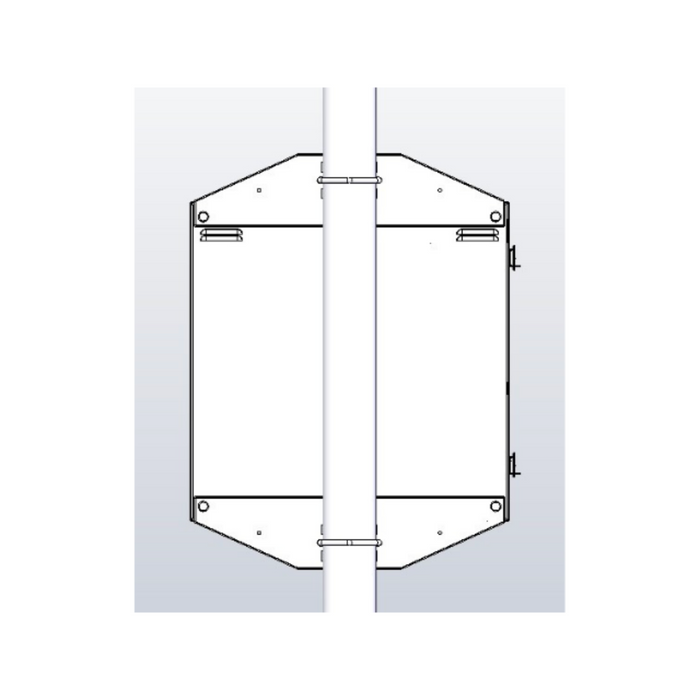

  • Wall and pole mountable (includes mounting hardware)
Product Applications
  • Wireless Base Stations and Clients
  • Surveillance Cameras
  • Wireless Bridge and Repeaters
  • Remote Sensors
  • Outdoor Utilities
  • Solar and Wind Power
Product Specifications
  • Enclosure Type: Powder Coated Steel
  • Weatherproofing: Nema 4X / IP65
  • Enclosure Mounting: Wall or pole mount with U Bolt or hose clamps
  • Interior Mounts: 1U 19" Rackmount (13.9" depth), 4" Long Din Rails (4), Din Rail Mounts (4)
  • Enclosure External Size: 24.1 x 24.1 x 17.5" (612.5 x 612.5 x 445.6mm)
  • Enclosure Internal Size: 23.9 x 23.9 x 16.1" (608 x 608 x 409.5mm)
  • Weight: 75lbs (34kg)
