Tycon Solar UPSPro 750W 8600VA Aluminum Enclosure 720Ah Batteries 24V/48VDC 30A Output 900W Solar Ready Outdoor UPS System
UPAL24/48-720-900
by TYCON Systems
Sold out
Original price
$5,199.95
-
Original price
$5,199.95
Original price
$5,199.95
$5,199.95
$5,199.95
-
$5,199.95
Current price
$5,199.95
The Tycon Solar UPSPro UPAL24/48-720-900 outdoor backup power system is designed for applications that require a flexible backup power source in order to maintain uninterrupted service to customers. The enclosure is powered from 120/240VAC. It is also solar ready (requires blocking diode with most panels) so a solar panel can be added as an alternate power source or to extend backup time.
Features include 24V/48VDC configurable output, an advanced 60A MPPT battery charge controller to protect against over-charging or overdischarging of the valve regulated sealed lead acid pure lead carbon AGM batteries. The ground mount aluminum enclosure has multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They have thermostatically controlled power ventilation which turns on automatically when inside temperature exceeds 45C.
There is generous space inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. There are mounting struts incorporated inside the enclosure to be able to mount DIN Rails or a flat metal or plywood plate. Equipment runs on battery power which isolates it from power line surges which is a main cause of outdoor equipment failure.
Applications
• Wireless Base Stations and Clients
• Surveillance Cameras
• Wireless Bridge and Repeaters
• Remote Sensors
• Mission critical outdoor power
• Backup Power Systems
Product Features
• Configurable as 24V or 48VDC System
• Weatherproof, UV resistant, outdoor enclosure
• Powered from AC mains power and/or Solar
• Interior space for customer electronics
• Ground Mounting
• Isolates Customer Equipment from Power Line Surges
• High Quality GEL Sealed Lead Acid Batteries
• Advanced battery charge controller protects against overcharge and over discharge
Product Specifications
• Battery Voltage (DC): 24VDC or 48VDC (customer configurable)
• Input Voltage (AC): 120/240VAC, 50/60Hz, 5A Max.
• Capacities (Amp Hr): 720Ah
• Avail. Storage Capacity (Watt Hr): 8640Whr
• Max. Output Power: 900W
• Suggested Maximum Load: 750W
• Maximum Instantaneous Load: 30A 500msec
• Battery Type: Valve Regulated Sealed Lead Acid / GEL
• Battery Life: 5+ years
• Battery Cable Fuse: 40A 250V Blade Fuse
• Controller Type: 60A MPPT Solar Controller with Status Display and 30A Load with on/off switch
• Maximum Solar Panel Size: 1560W @ 24V Battery Config, 3120W @ 48V Battery Config
• Controller Display Status: Battery Voltage, Charging Voltage, Charging Current, Load Current, Temperature
• Bulk Charge: 28.8V / 57.6V
• Float Charge: 27.5V / 55.2V
• Over-discharge protection: 22V / 44V
• Over-discharge recovery voltage: 25.2V / 50.4V
• Controller Self Consumption: <1W

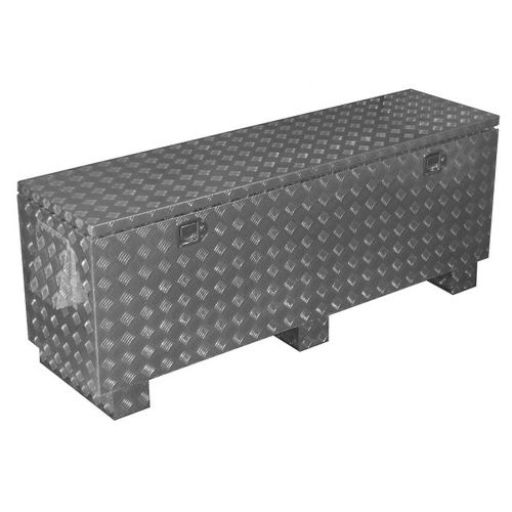

• Enclosure Type: Ground Mount, Key Lock, Aluminum Diamond Plate
• Enclosure Size: 65” x 18” x 20” (1651 x 457 x 508mm)
• Operating Temperature: -40°C to +65°C (-40°F to 149°F)
• System Weight (without batteries): 78lbs (35kg)
• Battery Weight: 4 x 127lbs (58kg)
• Certifications: Individual components used have CE Certifications.
• Warranty: 3 Years
Product Includes
(1) Aluminum Enclosure
(4) Batteries
(1) MPPT Solar Charge Controller
(1) Power Supply
Product Documentation
UPAL24/48-720-900 Data Sheet
