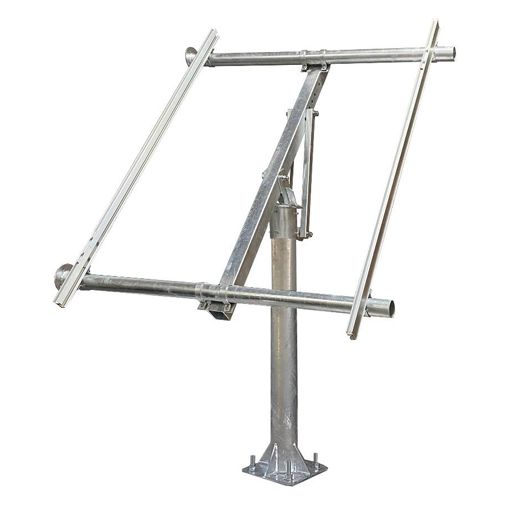

Tycon Solar Top of Pole Mount for Two 250-360W Solar Panels [TPSM-350x2-TP]

TPSM-350x2-TP by TYCON Systems
Sold out
Original price $1,349.95 - Original price $1,349.95
Original price $1,349.95
$1,349.95
$1,349.95 - $1,349.95
Current price $1,349.95

At Baltic Networks discretion this product may be required to ship via LTL Truck Freight due to it's size, weight and/or to prevent damage during the shipping process. A member of our customer service support team may contact you to request additional information and the capabilities of the delivery location in to provide you with a LTL Freight Quote.


Tycon Solar’s versatile Pole Top solution is designed to satisfy the most common small-medium solar power needs, particularly in the wireless and security infrastructure markets. The mount assembles easily and can be used to construct 720Wp (2 x 360Wp modules) stations, whether used to connect directly to a grid with grid tied inverter(s) to offset power usage, or charge a battery bank for remote applications. With modules commonly available up to 360W+, even greater power production can be achieved in a single installation. Made with heavy galvanized steel, anodized aluminum rails and stainless-steel hardware, the structure is designed for many years of durability in harsh environments. With the array centrally balanced on the pole top, manual seasonal tilt or orientation adjustments can be made easily by one person. The 2 panel pole top mount is expandable to 4 panels and 6 panels using available Tycon adapter kits as your needs grow. See below for adapter kit part numbers. When comparing pole mounts be sure to remember that the Tycon Pole Top includes the mounting pole and anchors in the price of the system.


Product Features

  • All components required to mount 2x 60-72 cell modules, nominally 230 through 360 watt modules
  • Stainless Steel, Galvanized Steel, and Anodized Aluminum construction
  • Includes integrated equipment ground solution
  • Tilts ranging from 10 to 65 degrees
  • 45 inches clearance to front of array for snow shedding
  • Includes flanged vertical post and concrete anchors
  • Ships in single crate

Product Applications

  • 720W remote power generation
  • Oil and gas monitoring stations
  • Security monitoring
  • Wireless stations
  • Remote Cabins
  • Grid connected power supplement

Product Specifications

  • Pole height: 1829mm (72”)
  • Pole Diameter: 140mm (6”)
  • Max. array height (back of array at 65deg): 3048mm (120”)
  • Min. array height (front of array at 65deg): 1143mm (45”)
  • Total module rail length: 2083mm (82”)
  • Structural cross tube total length: 2 module: 1499mm (59”)
  • Array Dimensions:
  • Width: 3367mm (132.5”)
  • Height: 2017mm (79.4”)
  • Panel Thickness: 30-50MM
  • Tilt: 10 – 65 degrees
  • Mounting method: anchor bolts in concrete footing (Anchors included, concrete provided by installer)
  • Max wind speed: 100mph
  • Warranty: 3 Years

Product Package Includes:

  • (1) Top of Pole Mount
  • (1) Flanged Base Pole
  • (1) Concrete Anchors
