Tycon Solar Side of Pole Mount for 2 - 4 80W Solar Panels

TPSM-80x4-UNI by TYCON Systems
Original price $247.95 - Original price $247.95
Original price
$247.95
$247.95 - $247.95
Current price $247.95

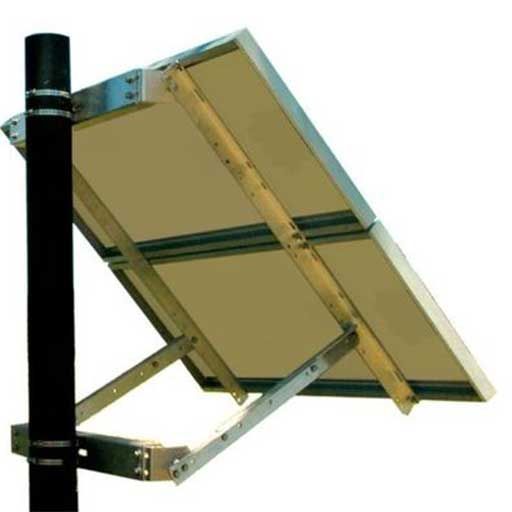

Tycon Solar TPSM-80x4-UNI can hold between 2 and 4 80W solar panels, ideal for remote power systems and off-grid applications. The TPSM-80x4-UNI is a solar panel mount designed to be used with Tycon Solar's solar panels, but are flexible in their design and can be used with other manufacturers panels. Construction is heavy duty aluminum with all stainless steel hardware for a very long service life in the harshest of conditions. Product Features • Simple, Low Cost Design • Flexible Side of Pole Mounting (2 - 4" dia. Pole) • Heavy Duty Aluminum and Stainless Steel Components for Long Life • Easy to Install - Reduced Installation Time • Quick Tilt Adjustment • Certified for up to 110mph Winds Product Applications • 2-4 80W Solar Panels • Remote Power Systems Product Specifications • Solar Panel Width: Up to 54" • Typical Solar Panel Size: 120 to 320W • Solar Panel Mount Type: Edge Clip • Pole Diameter: 2 to 4.5" • Pole Attach: Stainless Steel Hose Clamp (5/16" driver) • Wind Speed Rating: 90mph • Shipping Weight: 10.6kg (23.3lbs) • Shipping Dimensions: 1372 x 152 x 127mm (54 x 6 x 5") • Tilt Adjustment: 15 to 65° • Warranty: 2 Years Product Documentation TPSM-80x4-UNI Datasheet
