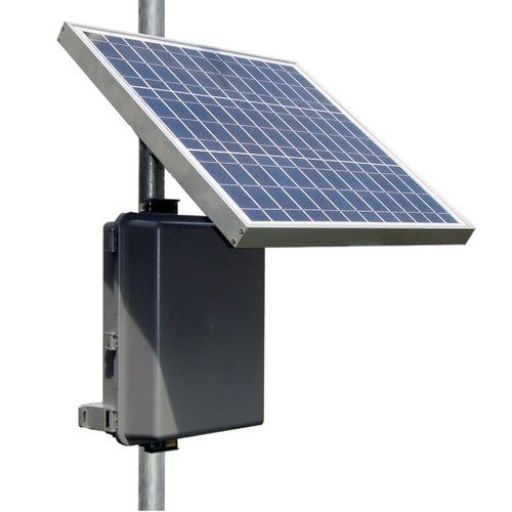

Tycon Solar RemotePro 12V 8W Polycarbonate Enclosure 12V 36Ah Battery 35W Solar Panel 48V 30W PoE Continuous Solar Power System

RPPL1248-36-35 by TYCON Systems
Original price $513.95 - Original price $513.95
Original price
$513.95
$513.95 - $513.95
Current price $513.95

The Tycon Solar RemotePro PL (RPPL) RPPL1248-36-35 outdoor power system is designed for applications that require a primary off-grid power source to run various electronics. The sealed and weatherproof Polycarbonate enclosure holds up to four 12V 8.5AH batteries. The enclosure is hinged and gasket sealed.

They can accept a padlock to protect your equipment.

The enclosures can be mounted to a wall or pole with the included mounting bracket system.

The high quality solar panels have a 25 year power output guarantee. The 30W solar panels can be mounted to a 51mm to 101mm (2" to 4") diameter pole or alternately to a wall with the included bracket kit.

Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid batteries. Most of the RPPL systems include a controller with built in POE inserter and DCDC converter to supply 48V POE from the 12V battery system. Enclosures have multiple ports for CAT5/6 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.

Batteries are an Advance Glass Matt (AGM) type which have good all temperature performance.

Applications

  • Wireless Base Stations and Clients
  • Surveillance Cameras
  • Wireless Bridge and Repeaters
  • Remote Sensors
  • Remote Lighting
  • Backup Power Systems
Product Features
  • Complete Remote Power Solution for Off-Grid Operation
  • Weatherproof, UV Resistance, Outdoor Enclosures
  • Enclosures can be Wall or Pole Mounted
  • High Performance Valve Regulated Sealed Acid Batteries
  • Advanced Battery Charge Controller Protects Against Overcharge and Over Discharge
Product Specifications
  • Rated Power Generation: 8W
  • Reserve Time @ Rated Power: 27hrs
  • PoE Output Voltage: 24V1.2A/ 48V.62A
  • Secondary Volts Out (DC): 12V 1.5A
  • Battery Capacity (Amp Hours): 36Ah
  • Battery Voltage (DC): 12V
  • Battery Type: Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM)
  • Battery Life: 5 Years
  • Controller Type: Dual Input: Solar/POE, Dual Output: Battery Voltage/POE with DCDC Converter
  • Overcharge Protection: 14.4V
  • Over-Discharge Protection: 11.0V
  • Over-Discharge Recovery Volts: 12.5V
  • Controller Self Consumption: <0.5W
  • Enclosure Type: Polycarbonate
  • Enclosure External Size: 17.5 x 12.5 x 6" (445 x 318 x 152mm)
  • Enclosure Internal Size: 14 x 10 x 5" (356 x 254 x 127mm)
  • Solar Panel Dimensions: 26 x 16" (654 x 401mm)
  • Operating Temperature: -30 to 60°C (-22 to 140°F)
  • System Weight: (no batteries) 22lbs (10kg)
  • Battery Weight: 22lbs (10kg)
  • Wind Speed Rating: 110mph (49m/s)
  • Warranty: 3 Years
Product Includes
(1) 35W Solar Panel
(1) Solar Panel Cable
(4) 12V 36Ah Batteries
(1) 35W Solar Mount
(1) Outdoor Enclosure
