Tycon Solar RemotePro 12V 8W Polycarbonate Enclosure 12V 36Ah Battery 35W Solar Panel 24V 30W PoE Continuous Solar Power System

RPPL1224-36-35 by TYCON Systems
Original price $513.95 - Original price $513.95
Original price
$513.95
$513.95 - $513.95
Current price $513.95

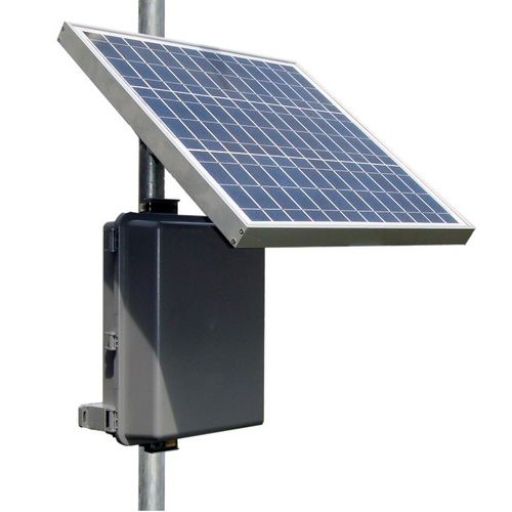

The Tycon Solar RemotePro PL (RPPL) RPPL1224-36-35 outdoor power system is designed for applications that require a primary off-grid power source to run various electronics. The sealed and weatherproof Polycarbonate enclosure holds up to four 12V 8.5AH batteries. The enclosure is hinged and gasket sealed. They can accept a padlock to protect your equipment. The enclosures can be mounted to a wall or pole with the included mounting bracket system. The high quality solar panels have a 25 year power output guarantee.

The 30W solar panels can be mounted to a 51mm to 101mm (2" to 4") diameter pole or alternately to a wall with the included bracket kit. Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid batteries. Most of the RPPL systems include a controller with built in POE inserter and DCDC converter to supply 24V PoE from the 12V battery system. Enclosures have multiple ports for CAT5/6 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas. Batteries are an Advance Glass Matt (AGM) type which have good all temperature performance.

Applications
• Wireless Base Stations and Clients
• Surveillance Cameras
• Wireless Bridge and Repeaters
• Remote Sensors
• Remote Lighting
• Backup Power Systems

Product Features
• Complete Remote Power Solution for Off-Grid Operation
• Weatherproof, UV Resistance, Outdoor Enclosures
• Enclosures can be Wall or Pole Mounted
• High Performance Valve Regulated Sealed Acid Batteries
• Advanced Battery Charge Controller Protects Against Overcharge and Over Discharge

Product Specifications
• Rated Power Generation: 8W
• Reserve Time @ Rated Power: 27hrs
• PoE Output Voltage: 24V1.2A/ 48V.62A
• Secondary Volts Out (DC): 12V 1.5A
• Battery Capacity (Amp Hours): 36Ah
• Battery Voltage (DC): 12V
• Battery Type: Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM)
• Battery Life: 5 Years
• Controller Type: Dual Input: Solar/POE, Dual Output: Battery Voltage/POE with DCDC Converter
• Overcharge Protection: 14.4V
• Over-Discharge Protection: 11.0V
• Over-Discharge Recovery Volts: 12.5V
• Controller Self Consumption: <0.5W
• Enclosure Type: Polycarbonate
• Enclosure External Size: 17.5 x 12.5 x 6" (445 x 318 x 152mm)
• Enclosure Internal Size: 14 x 10 x 5" (356 x 254 x 127mm)
• Solar Panel Dimensions: 26 x 16" (654 x 401mm)
• Operating Temperature: -30 to 60°C (-22 to 140°F)
• System Weight: (no batteries) 22lbs (10kg)
• Battery Weight: 22lbs (10kg)
• Wind Speed Rating: 110mph (49m/s)
• Warranty: 3 Years

Product Includes
(1) 35W Solar Panel
(1) Solar Panel Cable
(4) 12V 36Ah Batteries
(1) 35W Solar Mount
(1) Outdoor Enclosure
