Tycon Solar RemotePro100W,400Ah Batt,720W Sol,12/24V MPPT [RPSTL12/24M-400-720]

RPSTL12/24M-400-720 by TYCON Systems
Sold out
Original price $4,599.95 - Original price $4,599.95
Original price $4,599.95
$4,599.95
$4,599.95 - $4,599.95
Current price $4,599.95

Shipping charges may not calculate correctly when you place this product in your shopping cart. Due to its size, this product ships on freight. Please contact us for a shipping quote.

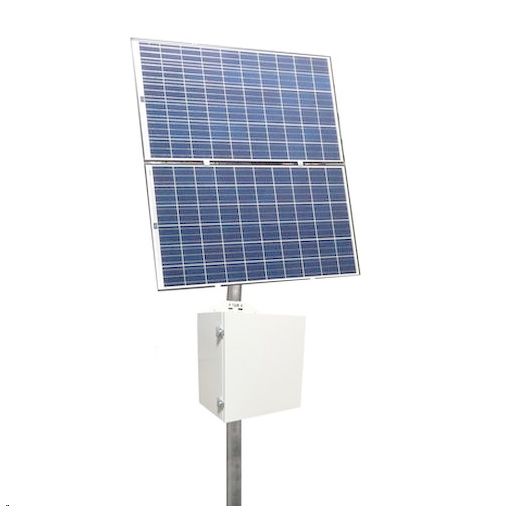

The Tycon Solar 720W RemotePro MPPT RPSTL12/24M-400-720 outdoor power system is designed for applications that require a primary off-grid power source to run various equipment. The vented weatherproof enclosure has generous space available inside for mounting customer equipment. Multiple mounting brackets are welded inside the enclosure for mounting DIN rails or flat plates.


The system can be configured as 12VDC or 24VDC for greater compatibility. The manageable MPPT solar controller improves system efficiency by about 15% meaning that more solar energy reaches the batteries. It supports up to 20A load control.


The enclosures are hinged, and gasket sealed with tamper resistant locks for security. It has four cable gland ports for CAT5/6 cable, antenna cables/connectors and other cabling. Included is a thermostatically controlled fan assembly which turns on automatically when the temperature exceeds 45°C. The high-quality solar panels have a 25year power output guarantee and a +5W output tolerance. The enclosures and solar mount can be mounted to a wall or pole (2-4”) with the included mounting systems.


Batteries are a Non-Spillable Valve Regulated Sealed Lead Acid Advance Glass Matt (AGM) type which have excellent temperature and deep discharge performance. Expected battery life exceeds 5 years.


The system comes with all cabling required to connect the batteries to the controller and 20’ outdoor rated cable to connect the solar panels to the controller.


Applications
  • Wireless Base Stations
  • Surveillance Cameras
  • Wireless Bridge and Repeaters
  • Off Grid Power
  • Remote Lighting
  • Backup Power Systems
Product Features
  • Complete 720W Remote Power Solution for Off-Grid Operation.
  • Supports up to 157W continuous power with 6hrs peak sun.
  • Weatherproof Outdoor Enclosures with up to 720Ah Battery
  • Expandable Ground Mounted Solar Mount
  • High Performance Sealed Lead Acid AGM Batteries
  • MPPT Solar Charge Controllers with RS485 Interface
  • Thermostatically Controlled Ventilation
Product Specifications
  • Battery Type: Maintenance Free Non-Spillable Valve Regulated Sealed Lead Acid AGM
  • Battery Life: 5+ years
  • Enclosure Type: ENC-STL-24x24x16 Pole/Wall Mount, Powder Coat Steel
  • Enclosure Size: 23.9 x 23.9 x 16.1" (608 x 608 x 409.5mm)
  • Internal Mount Features: DIN Rail/Flat Plate Mounting Brackets Welded to Door and Back
  • Solar Panel Dims (L x W x T): 720W Solar Array 78” x 77” x 1.6” (1980 x 1956 x 40mm)
  • Operating Temperature: -30°C to +60°C (-22°F to 140°F)
  • System Weight (no batteries): 377lb (171 kg)
  • Battery Weight: 40.3lb (18.3 kg) (Each 50AhAh Battery)
  • Wind Speed Rating: 90MPH
  • Warranty: 3 Years
Product Includes
(2) 170W Solar Panels
(1) Steel Enclosure
(1) Solar Mount
(8) Batteries
(1) MPPT Solar Controller
