Tycon Solar MPPT Solar Controller w/ Monitor and 7-Port Gigabit PoE Switch V2+

TPDIN-SC48-20 V2+ by TYCON Systems
Sold out
Original price $514.95 - Original price $514.95
Original price
$514.95
$514.95 - $514.95
Current price $514.95

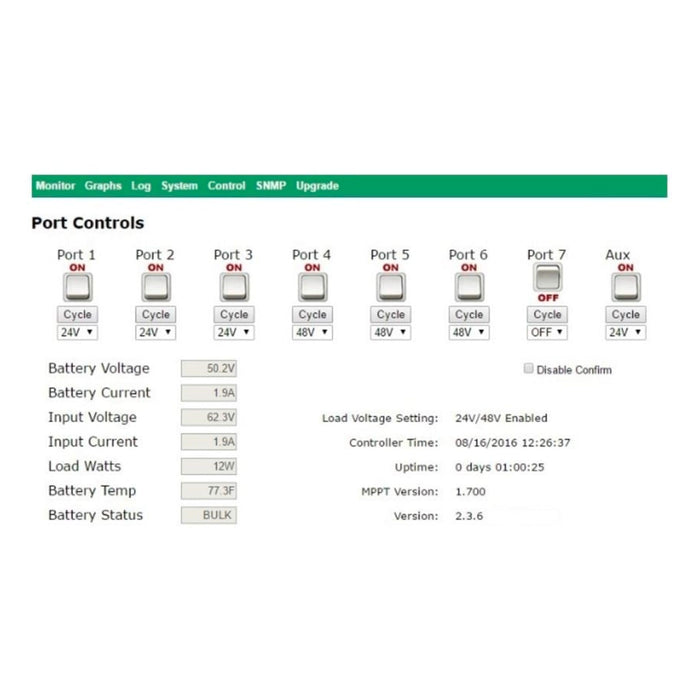

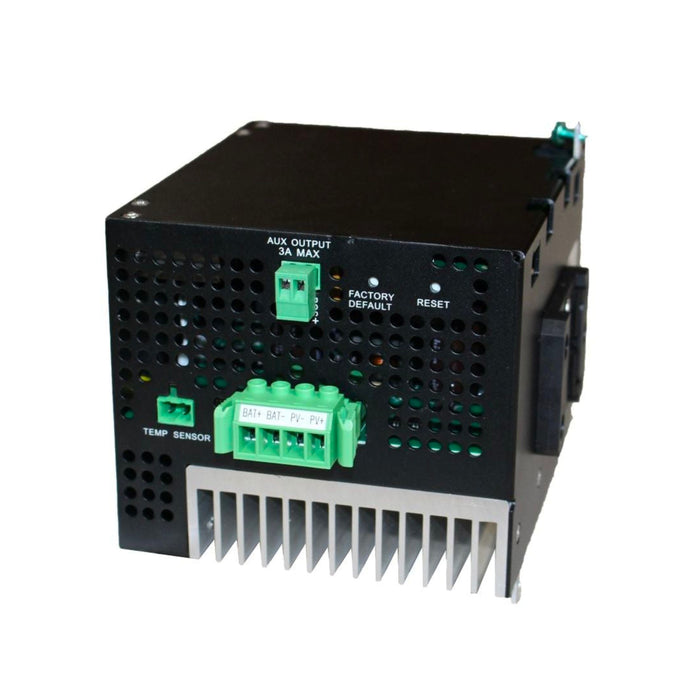

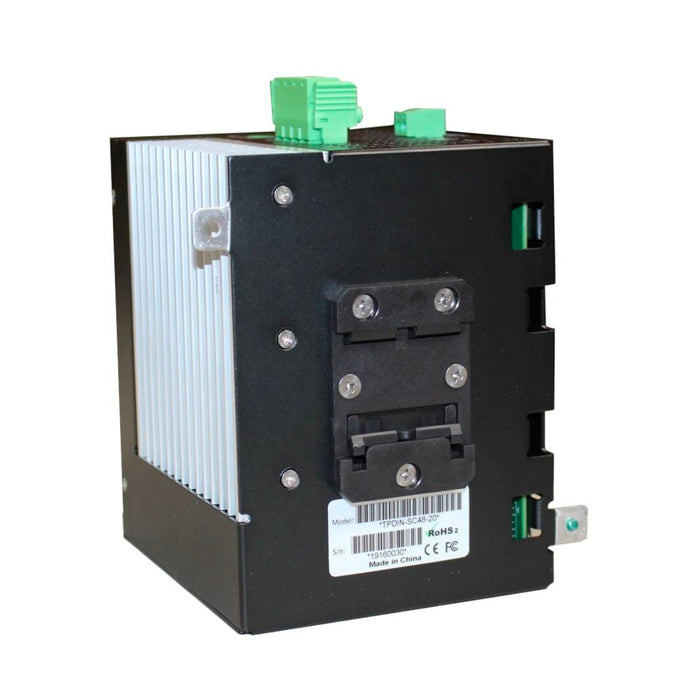

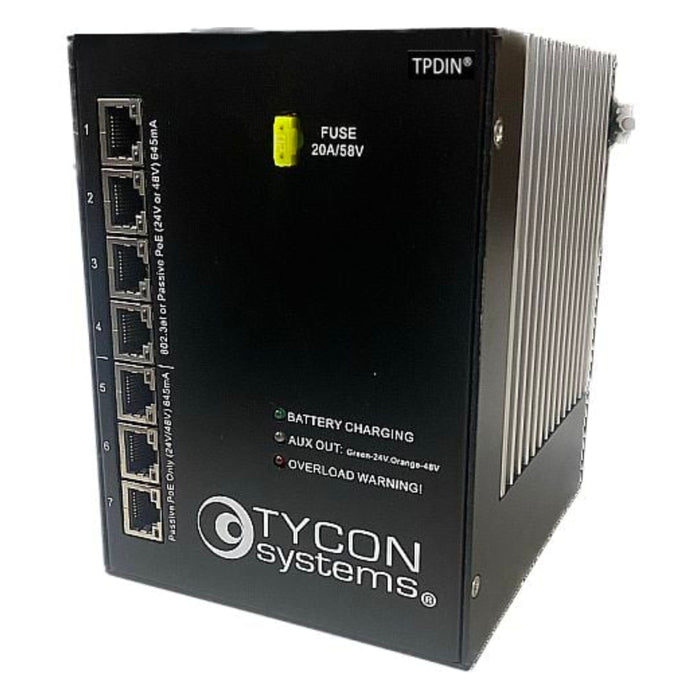

The TPDIN-SC48-20 is a web manageable MPPT Solar Controller with built-in 7 Port Gigabit Passive PoE switch. The controller uses temperature compensated smart battery charging to properly charge GEL or AGM batteries and extend their life. It has a balance charge mode for periodic battery bank maintenance. There are 3 Gigabit Passive PoE+ 35W and 4 Gigabit Passive PoE 18W ports. There is a wire terminal auxiliary output capable or 2.25A maximum. Total from all outputs is set at 150W at 48VDC and 72W at 24 VDC for a max total of 222W. Outputs can be switched by user between 48VDC and 24VDC or OFF through the web interface. Product Features • MPPT 47V 20A Solar Controller • Temperature Compensated Smart Battery Charging • 7 Port Gigabit Passive PoE Switch • Remote Monitor and Control • 48V or 24V User Selectable Output Voltage • 2.25A Auxiliary Wire Terminal Output • Total 200W Power Output • Automatic Low Voltage Battery Disconnect • DIN Rail or Screw Tab Mounting Product Specifications • Solar Input Voltage: 62VDC to 80VDC • Solar Input Current: 20A Maximum • Battery Voltage: 48VDC (Controller will function to 12VDC) • Battery Current: 20A Maximum • Battery Type: GEL or AGM • Fuse Type: 58V 20A Fast Blo Automotive Blade Type (Littlefuse 142.6185.5206) • Low Voltage Disconnect: 45.8V to 47.8V - Settable in Web Interface • Low Voltage Disconnect Recovery: 48.1V to 49.2V - Settable in Web Interface • External DC Power Input Voltage: 62VDC to 80VDC • External DC Power Input Current: Internally Regulated to 3A. Power Source Must be great or equal to 3A • External DC Power Input Connector: 4-pin Mini DIN - Mating Connector CUI Inc. Model PDP-40 • Auxiliary DC Output Voltage: 24VDC or 48VDC - Settable in Web Interface • Auxiliary DC Output Current: 2.25A Maximum • Auxiliary DC Output Controls: Temperature, Voltage, Time - Settable in Web Interface • PoE Swich: (7) RJ35, 10/100/1000Mbps Gigabit Ethernet, Layer 2, Auto Crossover • PoE Output Voltage: 48VDC or 24VDC or OFF - Settable in Web Interface • PoE Output Power:      Ports 1-3: 35W Passive PoE+ at 48VDC, 18W at 24VDC      Ports 4-7: 17W Passive PoE at 48VDC, 9W at 24VDC      PoE Power Supplied on Pins 4,5 (V+) and 7,8 (V-)(Mode B) • Port Surge Protection:      IEC 61000-4-2 (ESD) 15kV (air), 15kV (contact)      IEC 61000-4-4 (EFT) 40A (5/50ns)      IEC 61000-4-5 (Lightning) 25A (8/20µs) • Maximum Power Output: 222W Total (150W @ 48VDC and 72W @ 24VDC) from all output ports (including Aux Output), Auto Shutdown and Auto Recovery from Fail • Indicator LED's:     Charge (Green)     24VDC (Green)     48VDC (Yellow)     External DC Power ON (Green)     Overload (Red) • Measurement Accuracy (V/I/T): ±0.1V, ±0.1A, ±1°C • Power Consumption: 3.5W Typ. • Accessibility: Via Web Browser and SNMP • Data-Logger: FIFO, 15,000 Data Sets, Programmable Log Interval • Wire Size:     Solar and Battery - 8AWG     Aux DC Output - 12AWG • Mounting: DIN Rail or 4mm Screw Tab • Operating Temperature: -40 to 65°C (-40 to 149°F) • Humidity: 0 to 90% • Dimensions: 151 x 111 x 138 mm (5.9 x 4.4 x 5.4 ") • Weight: 1.5 kg (3.3 lbs) • MTBF: >100,000 Hours • Certifications: FCC/CE EN55022 (EMC); CE EN55024 (EMC); CE/UL EN60950-1 (LVD) • Warranty: 2 Years
Product Documentation TPDIN-SC48-20 Datasheet
