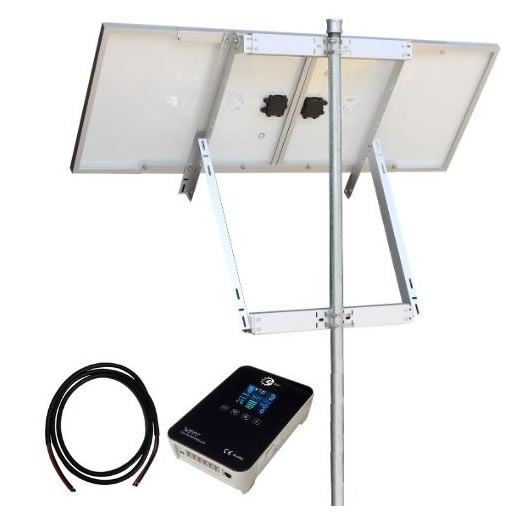

Tycon Solar Kit 170W 12V or 24V 40W Continuous Pole Mount 85W Solar Panel Kit with MPPT Controller
The Tycon Solar TPSK12/24M-170W solar panel kit comes complete with high efficiency multi-crystalline solar panel, side of pole/ wall mounts, MPPT Charge Controller, and an outdoor rated 12AWG cable. They are ready for quick connection to Tycon Power Systems outdoor UPSPro Systems or any other application requiring solar power. The panels use only the best silicon cells from Germany to provide excellent low light performance and long life (25 years). The rugged aluminum frame and high transparency, low iron, tempered glass withstands high wind, hail and snow loading. The mounts are heavy duty aluminum with stainless steel hardware. They are a simplified design that makes them easy to install, saving precious installer time. The mounts are designed for pole mounting but can also be wall mounted. They provide quick tilt adjustment for positioning the panel to proper sun angles for summer and winter sun.
- Complete Kit – Solar Panel, Pole/Wall Mount, Outdoor
- 12AWG Cable, Battery Charge Controller
- Accommodates 2" to 4.5" dia. Pole or Wall Mount
- Quick tilt adjustment (15° to 65°)
- Certified for up to 110MPH Winds
- Solar Panel Voltage/Capacity: 12V/ 24 170W
- Solar Panel Max Current: 4.94A
- Solar Panel Size: 2x 26" x 42"
- Solar Panel Model: TPSHP-12-85
- Pole Diameter: 2" to 4.5"
- Pole Mount Model: TPSM-60-SP
- Wind Speed Rating: 110MPH
- Charge Controller Model: TP-SC24-10
- Operating Temperature: -40°C to +85°C
- Shipping Weight: 24.5kg (54lb)
(2) 85W Solar Panels
(1) 12AWG Battery Charge Controller Cable
(1) Pole/ Wall Mount
(1) 12AWG Outdoor Cable
