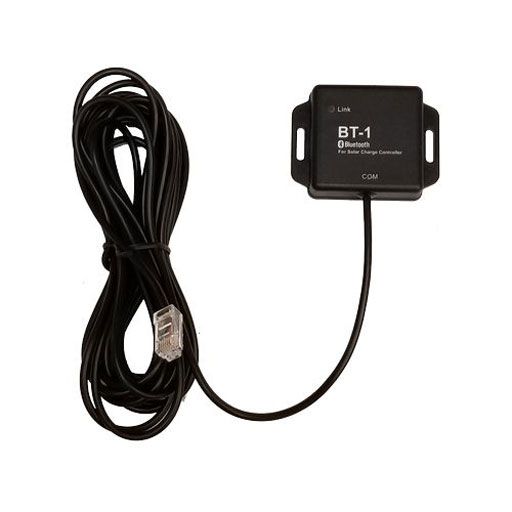

Tycon Solar Bluetooth Adapter For MPPT Solar Charge Controller

TP-SC-BT1 by TYCON Systems
Original price $38.95 - Original price $38.95
Original price
$38.95
$38.95 - $38.95
Current price $38.95

The Tycon Solar™ TP-SC-BT1 Bluetooth adapters that connect to the TP-SCxxxx-MPPT solar charge controllers via the RS232 interface on the charge controller. It allows connection to the controllers via a smartphone. This allows a technician to monitor and control the charge controller from a distance of up to 15m. An Android and IOS Mobile app is available to provide the connectivity.


Product Features

• Provides Connectivity up to 15m range

• Designed for Tycon TP-SC MPPT Charge Controllers

• Employs a dedicated Bluetooth chip with high performance and ultralow power consumption

• Adopts Bluetooth 4.0 and BLE technologies; boasting advantages ofquick communication, excellent anti-interference capability, etc.

• No External Power Source Required

• Conformal Coated Electronics for Environmental Protection

• Waterproof, Industrial Temperature Range


Applications

• Tycon TP-SCxxxx-MPPT Solar Charge Controllers

• Remote monitoring and control


Product Specifications

• Input Voltage: 5V to 12V

• Standby Power Consumption: 0.04W

• Operating Power Consumption: 0.05W

• Communication: Distance <15m (49’)

• LED Function: Red Flashing = Data Active ; Off = Standby mode

• Serial Baud Rate: 9600bps (Fixed)

• Communication Mode: RS232

• Connector Type: RJ12

• Cable Length: 5m (16ft)

• Environmental Protection: IP67

• Certifications: CE, RoHS

• Operating Temp: -40°C to 75°C (-40°F to 167°F)

• Dimensions: 66 x 51 x 15.5mm (2.6 x 2 x 0.6”)

• Weight: 120g (4.2oz )

• Warranty: 3 years
