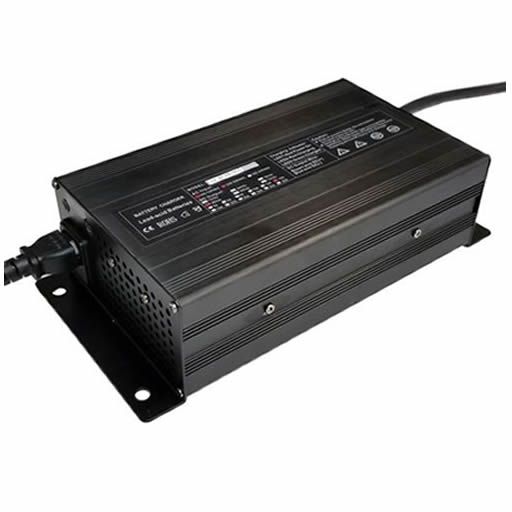

Tycon Solar 900W Battery Charger 88.2V 10A w/US Power Cord

TP-BC72-900 by TYCON Systems
Sold out
Original price $285.95 - Original price $285.95
Original price
$285.95
$285.95 - $285.95
Current price $285.95
Tycon Solar 900W Battery Charger, TP-BC72-900, is a battery charger that provides up to 900W of total charging power. The battery charger is compatible with GEL/AGM type sealed lead acid batteries. The charger has various protections for reverse current, short-circuit, over-load, over-voltage, and over-current. There is an LED which indicates charging (Red) or battery full (Green). The unit comes with a removeable AC cord with a North American Plug. The units are can work from 90VAC to 240VAC (selectable via switch). Specifications • Total Power Available (for Load and Battery charging) 900W • Nominal Battery Voltage 72VDC • Battery Charge Max Current 10A • Battery Charger Voltage 88.2V • Battery Float Voltage 82.8V • Efficiency >88% • DC Output Cable 2 Wire 14AWG ; 1.2m (48”) long cable Brown = V+, Blue = VAC • Input Connector IEC C14 • AC Power Cord IEC C13 to Nema 5-15P, 1.2m (48") • AC Power Input 120VAC / 240VAC , 50/60Hz • Hi-Pot Test 1500VAC / 10mA / 1min • Insulation Resistance >10MOhm, 500VDC • Operating Temperature -10°C to +40°C (14°F to +104°F) • Operating Humidity (RH) 5% to 90% (non condensing) • Storage Temperature -40°C to +70°C (-40°F to +158°F) • Storage Humidity 5% to 95% (non-condensing) • Standards Compliance CE, EN60335-1:2002 and EN60335-2-29:2002 • MTBF (Mean Time Between Failure) >50,000 hrs • Dimensions (LxWxH) incl mtg flange 272 x 135 x 70mm (10.7 x 5.3 x 2.75”) • Weight 1.95kg (4.3lb) • Warranty 2 Years Datasheet TP-BC72-900
