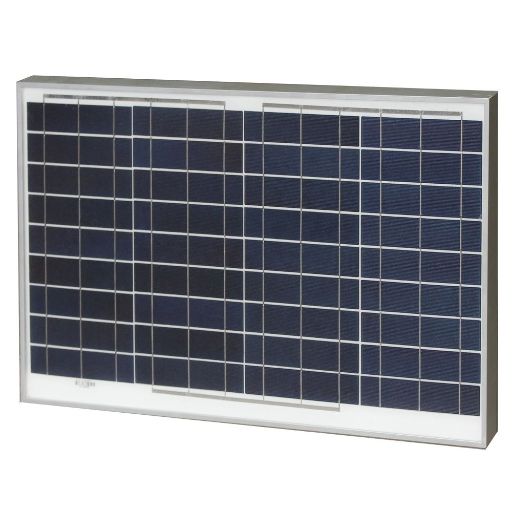

Tycon Solar 85W 12V 30.7 X 26.7" Solar Panel

TPS-12-85W by TYCON Systems
Sold out
Original price $162.95 - Original price $162.95
Original price
$162.95
$162.95 - $162.95
Current price $162.95
The Tycon Solar TPS-12-85W solar panels are high efficiency 36 cell designs with excellent low light performance. The polycrystalline silicon solar cells are laminated with a TPT (Tedlar/Polyester/Tedlar) and EVA (Ethylene Vinyl Acetate) bi-layer for high reliability and long life. The cell array is sealed in a heavy duty extruded 6063-T5 aluminum frame with a high transparency low iron tempered glass cover to protect the solar cells from harsh environments; hail, wind, snow and ice. The solar panels are easy to mount because of the aluminum frame design. The wired connections are via a 12AWG x 900mm (36”) outdoor rated cable terminated with MC4 solar connectors. Applications • Battery Charging Applications • Surveillance Cameras • Wireless Base Stations • Outdoor Lighting • Remote Sensors • Remote Gates • Electric Fence • Backup Power Systems Product Features • Excellent Low Light Performance • Extremely Reliable. 5 Year Product Warranty. 25 year Solar Cell Output Warranty. • High Efficiency with High Transparency Low Iron Tempered Glass Cover. Rugged Extruded Anodized Aluminum Frame • Sealed for Protection from Harsh Environments • 36” Output Cables with MC4 Solar Connectors for Easy Hookup Applications • Battery Charging Product Includes (1) Solar Panel Product Documentation TPS-12-85W Datasheet
