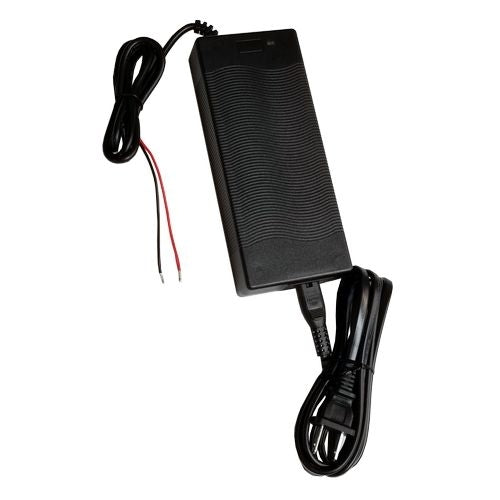

Tycon Solar 48VDC 2.15A 120W Battery Charger 120-240VAC in 2 Wire Output

TP-BC48-120 by TYCON Systems
Sold out
Original price $54.95 - Original price $54.95
Original price
$54.95
$54.95 - $54.95
Current price $54.95
The TP-BCxx-120 battery chargers provide up to 120W of total charging power. The battery charger is compatible with GEL/AGM type sealed lead acid batteries. The charger has various protections for short-circuit, over-load, over-voltage, over-current and over-temp. It operates over a wide temperature range. . The unit comes with a removeable AC cord with a North American Plug. The units are auto-ranging so they can work from 100VAC to 240VAC. Product Features • 120W Total Power. 12V, 24V and 48V models. • Small Form Factor, Low Cost • Over-Voltage, Over-Current, Over-Temp, OverLoad, Short-Circuit Protections • Led indicator: Red=Charging, Green=Battery Full • Wide temperature operation • CE, UL and FCC Certifications Applications • Wireless Base Stations, Cellular Base Stations • Surveillance Systems • Battery Backup Systems Product Features • Total Power Available (for Load and Battery charging) 120W • Nominal Battery Voltage 48VDC • Battery Charge Max Current 2.15A • Battery Charger Voltage 57.6V • Load Regulation 5% • Line Regulation 3% • Efficiency 85% Minimum • Output Connector 2 Wire ; 914mm (36”) long cable • EMC Standards FCC Class B , NE55022 Class B • Safety Standards UL60950-1, CSA 22.2, TUV EN60950 • AC Power Input (+-10%) 120VAC / 240VAC , 50/60Hz • AC Input Current 2.5A Max • HiPot Test 3000VAC • Insulation Resistance 50 MOhm, 500VDC • Operating Temperature -30 to +55C (22 to +131°F) • Operating Humidity (RH) Up to 90% (non condensing) • Storage Temperature -40 to +85°C (-40 to +185°F) • Storage Humidity Up to 90% (non-condensing) • MTBF (Mean Time Between Failure) >50,000 hrs • Dimensions (LxWxH) 172 x 72.5 x 34.5mm ( 6.8 x 2.9 x 1.4”) • Weight 439g (15.5oz) • Warranty 3 Years Product Documentation TP-B148-120 Data Sheet TP-BC48-120 User Guide
