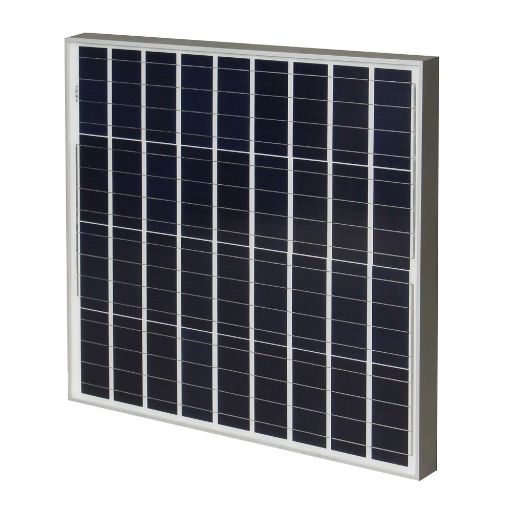

Tycon Solar 35W 12V 21.5 x 19.3" Solar Panel

The Tycon Solar TPS-12-35W solar panels are high efficiency 36 cell designs with excellent low light performance. The polycrystalline silicon solar cells are laminated with a TPT (Tedlar/Polyester/Tedlar) and EVA (Ethylene Vinyl Acetate) bi-layer for high reliability and long life. The cell array is sealed in a heavy duty extruded 6063-T5 aluminum frame with a high transparency low iron tempered glass cover to protect the solar cells from harsh environments; hail, wind, snow and ice. The solar panels are easy to mount because of the aluminum frame design. The wired connections are via a 12AWG x 900mm (36”) outdoor rated cable terminated with MC4 solar connectors.

Applications

• Battery Charging Applications

• Surveillance Cameras

• Wireless Base Stations

• Outdoor Lighting

• Remote Sensors

• Remote Gates

• Electric Fence

• Backup Power Systems

Product Features

• Excellent Low Light Performance

• Extremely Reliable. 5 Year Product Warranty. 25 year Solar Cell Output Warranty.

• High Efficiency with High Transparency Low Iron Tempered Glass Cover. Rugged Extruded Anodized Aluminum Frame

• Sealed for Protection from Harsh Environments

• 36” Output Cables with MC4 Solar Connectors for Easy Hookup

Product Includes

(1) Solar Panel
