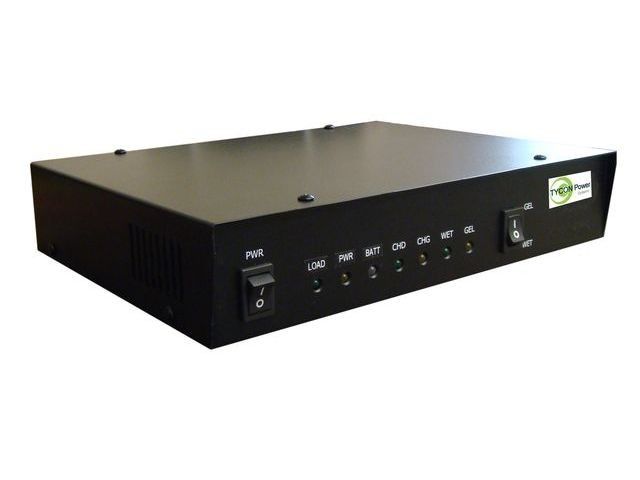

Tycon Solar 24V Smart Battery Charger 300W Regulated

TP-BC24-300 by TYCON Systems
Sold out
Original price $313.95 - Original price $313.95
Original price
$313.95
$313.95 - $313.95
Current price $313.95
The load output is regulated so that output voltage does not exceed 12.5VDC on the 12V model and 24.5VDC on the 24V model. Also the load output will turn off when the battery voltage is low to prevent over discharge of the batteries which can shorten the useable life of the batteries. Load output will turn back on automatically when batteries have sufficient charge. The TP-BC series provides seamless switchover from AC power to battery power so there is no interruption which could reset a user’s electronics. The charger auto-recovers from a power failure so no user action is necessary. The Tycon charger has various protections for short circuit, overvoltage protection, overcurrent and reverse battery. It operates over a wide temperature range making it suitable for industrial applications. The battery charger will not work without a battery connected. A solar panel and solar charge controller can be added to the system if supplemental power from solar is desired. There are various LEDS on the front panel to see status-at-a-glance of the Load Output, Charging Condition and AC Power Condition.250 x 185 x 55mm (9.8 x 7.3 x 2.2in) 2.4kg (5.2lb)
