Tycon Power18-32VDC In, 12VDC@1.25A Out
TP-VR-2412
by TYCON Systems
Sold out
Original price
$23.95
-
Original price
$23.95
Original price
$23.95
$23.95
-
$23.95
Current price
$23.95

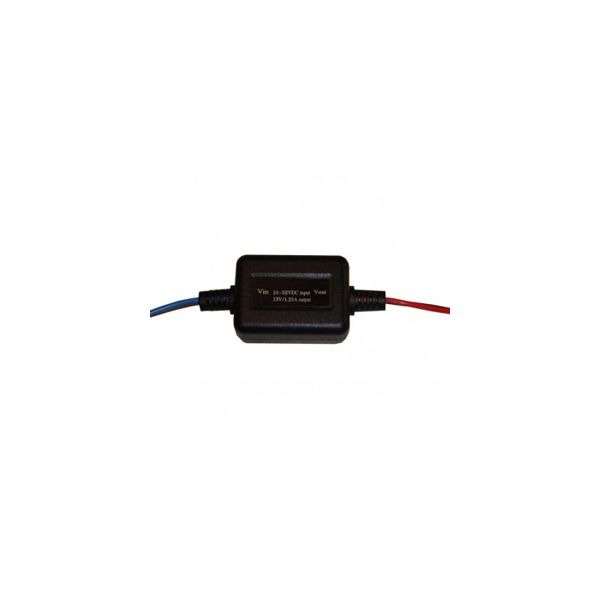

The TP-VR-2412 is a sealed DC to DC regulator that offers high output regulation in a compact and sealed enclosure. They have 12" long 18AWG leads on input and output for universal connectivity.
Product Features
• Compact size
• High output, short circuit protected
• Sealed design
• 12" 18AWG lead wires
Product Applications
• Security systems
• Remote power systems
• Marine applications
• Wireless base stations
Product Specifications
• DC input voltage range: 16V to 32VDC
• DC voltage output: 12VDC @ 1.25A
• Maximum power dissipation: 15W
• Efficiency: 80%
• Load / line regulation: 5% / 1%
• Ripple / noise: 2% / 5%
• Wire gauge: 18AWG
• Lead wire length: 12"
• Operating temperature: -40°F to 149°F (-40°C to +65°C)
• Operating humidity: 0 to 99% RH
• Size: 2.75 x 1.25 x 1" (70 x 32 x 25mm)
• Weight: 1.5oz (43g)
Product Data Sheet
Tycon Power Learning Center Presentation
