Tycon Power USB Thingy, 10-32VDC In, 5VDC@1A USB Out

TP-VR-2405-USB by TYCON Systems
Sold out
Original price $27.95 - Original price $27.95
Original price
$27.95
$27.95 - $27.95
Current price $27.95

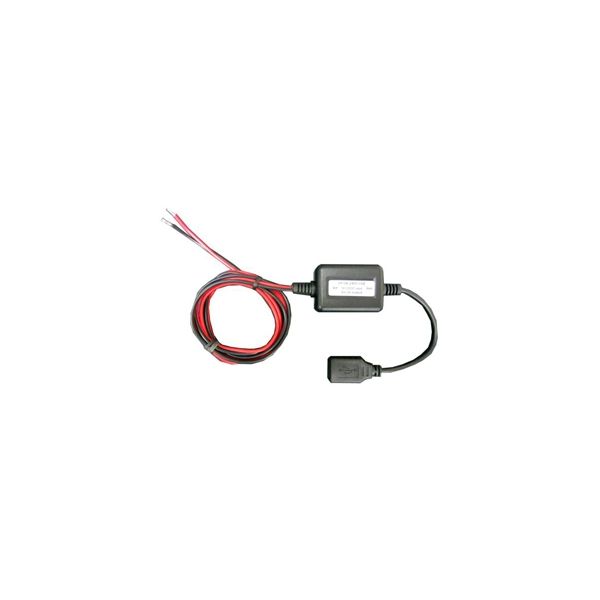

The TP-VR-2405-USB USB Thingy™ is a USB power adapter that provides 1A of USB power from a 10-32VDC input. It is perfect for providing a high power USB port in all kinds of situations from vehicles to stationary remote power systems. The USB port is becoming a standard battery charging port for all kinds of electronic devices including cell phones, smartphones and tablets. The USB Thingy™ can be connected directly to a 12V solar panel for charging USB powered devices directly from the sun. 15W Voltage Regulator. Product Features • Compact Size, Sealed Design • High Output (1A), Short Circuit Protected • 1m (39") 18AWG Lead Wires Product Applications • Vehicular Applications • Remote Power Systems • Marine Applications • Solar Applications Product Specifications • DC Input Voltage Range: 10V to 32VDC • DC Voltage Output: 5VDC @ 1A • Maximum Power Dissipation: 5W • Efficiency: 80% • Load / Line Regulation: 5% / 1% • Ripple / Noise: 2% / 5% • Wire Gauge: 18AWG • Lead Wire Length: 39" (1m) • Operating Temperature: -40 to 149°F (-40 to 65°C) • Operating Humidity: 0 to 99% RH • Size: 2.75 x 1.25 x 1" (70 x 32 x 25mm) • Weight: 1.5oz (43g) Product Documentation Product Data Sheet Tycon Power Learning Center Presentation
