Tycon Power Shielded POE Inserter, CAT5e Rated

POE-INJ-S by TYCON Systems
Sold out
Original price $5.95 - Original price $5.95
Original price
$5.95
$5.95 - $5.95
Current price $5.95

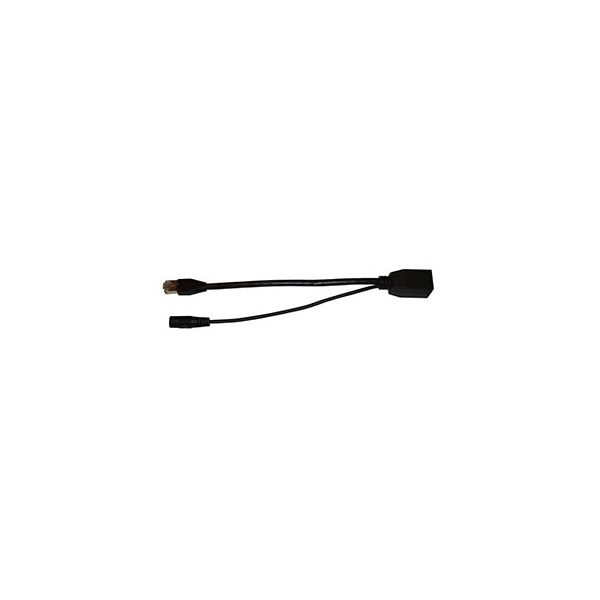

The Tycon POE-INJ-S is a low cost Power Over Ethernet (POE) Inserter to insert POE power to a CAT5 ethernet data cable on the unused ethernet pins 4,5(+) and 7,8(-). Product Features • Shielded CAT5e cable and connectors for added protection against surges and interference • CAT5 rated RJ45 jack for more reliable high speed data connections (10/100MB) • Shrouded DC jack for improved safety Product Applications • Wireless Access Points and Client Devices • IP Phone and Security Camera Systems Product Specifications • Materials: UL Rated Materials, Meets RoHS Requirements • Voltage Rating: 60VDC Maximum • RJ45 Jack: Shielded CAT5 Rated, Gold Plated Contacts • RJ45 Power Pins: 4,5(+) 7,8(-) • DC Jack or Plug: 5.5 x 2.1mm, Shrouded • DC Wire Size: 28AWG x 4 • CAT5 Wire Size: 28AWG x 8, Shielded • Cable Length: 165mm (6.5") • Total Length: 254mm (10") • Weight: 31g (1.1oz) • Operating Temperature: -40 to 80°C (-40 to 176°F) Product Data Sheet Tycon Power Learning Center Presentation
