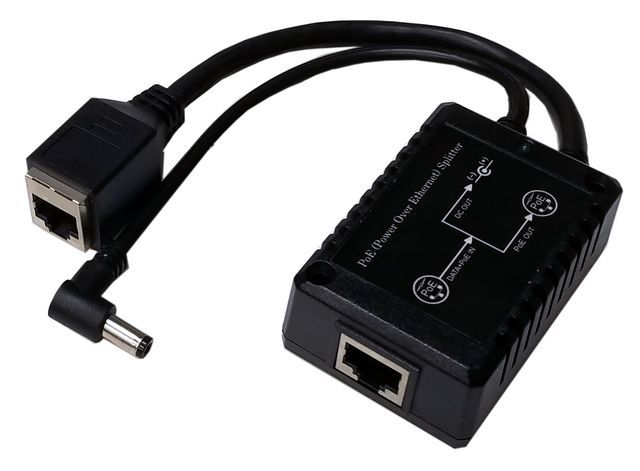

Tycon Power POE Splitter, 48VDC 802.3af POE Input, 12VDC @ 1A Output, 12W (w/ RJ45 socket)

POE-MSPLT-4812P-F by TYCON Systems
Original price $52.95 - Original price $52.95
Original price
$52.95
$52.95 - $52.95
Current price $52.95
Tycon Power POE-MSPLT-4812P-F is a splitter with dual outputs. It can output both 802.3af PoE and 12VDC. This model uses an RJ45 socket instead of connector. The DC connector is compatible with Tycon passive PoE injectors like POE-INJ-1000-S for ease of integration. Inputs and outputs are isolated, the devices include protections for short circuit and overload. Product Features • Very Compact Size • Dual Output: 48V PoE plus 12VDC Output • Converts an Active PoE Input to a DC Output • Output Power up to 12W • Short Circuit, Over Current Protection Product Specifications • Output Voltage:     48VDC Passive Poe     24VDC on 5.5/2.5mm DC Connector • Output Current:     0.3A     0.5A • Total Max Output Power: 12W • DC Output Connector: 5.5 / 2.5 mm Barrel Connector - Compatible with 2.1mm • Data Output Connector: RJ45 Shielded Socket • Output Cable Length: 153mm (6") • Load Regulation and Noise: 5% • Line Regulation and Ripple: 1% • PoE Input (RJ45): IEEE 802.3af/at or Passive PoE (36-60VDC) • Ethernet Speed: 10/100Mbps • Efficiency: 75% Min. • EMC Standards: FCC Class B, NE55022 Class B • Isolation Voltage: 1500VDC • Isolation Resistance: 100M Ohms Minimum • Operating Temperature: -25 to 50°C (-14 to 122°F) • Operating Humidity: 5 to 90% non-condensing • Storage Temperature: -40 to 80°C (-40 to 176°F) • Dimensions: 65 x 45 x 26 mm (2.6 x 1.8 x 1 ") • Weight: 62 g (2.2 oz) • Warranty: 1 Year Product Documentation POE-MSPLT-4812P-F
