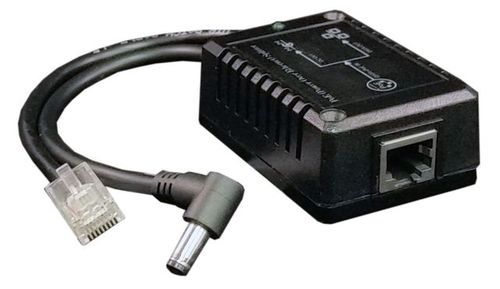

Tycon Power POE splitter, 48VDC 802.3af/at POE input, 9VDC @ 1.3A Output, 24W, 5.5x2.1 Barrel Connector

POE-MSPLT-4809 by TYCON Systems
Sold out
Original price $35.95 - Original price $35.95
Original price
$35.95
$35.95 - $35.95
Current price $35.95
Description The DC output is provided on a standard 5.5mm/2.1mm barrel connector and the Data output is provided on standard RJ45 network connector, each on a dedicated 6” cable. In addition to being compatible with 10/100MB Ethernet speeds, inputs and outputs are isolated and the devices include protections for short circuit and overload. The unique POE-MSPLT-USB provides a USB output to power smartphones and tablets from PoE devices like network switches or PoE injectors. Features Very compact size Converts an active PoE input to a DC output Various output voltages and USB available Output power up to 15W Short circuit, over current protection Specifications Output voltage: 9VDC Output current: 1.34A Output power: 12W DC output connector: 5.5mm / 2.1mm Barrel Connector Data output connector: RJ45 Output cable length: 153mm (6”) Load reg & noise: 5% Line reg & ripple: 1% PoE input (RJ45): IEEE 802.3af/at or passive PoE (36 – 60VDC) Ethernet speed: 10/100MB Efficiency: 75% Min EMC standards: FCC Class B NE55022 Class B Isolation voltage: 1500VDC Isolation resistance: 100M Ohms minimum Operating temperature: -25 to +50°C (-13 to +122°F) Operating humidity: 5% - 90% non-condensing Storage temperature : -40 to +80°C (-40 to +176°F) Dimensions (LxWxH): 65 x 45 x 26mm, (2.6 x 1.8 x 1”) Weight: 62g (2.2oz) Product Package Includes: 1 - POE-MSPLT-4809 DATA SHEET Product Data Sheet Tycon Power Learning Center Presentation
